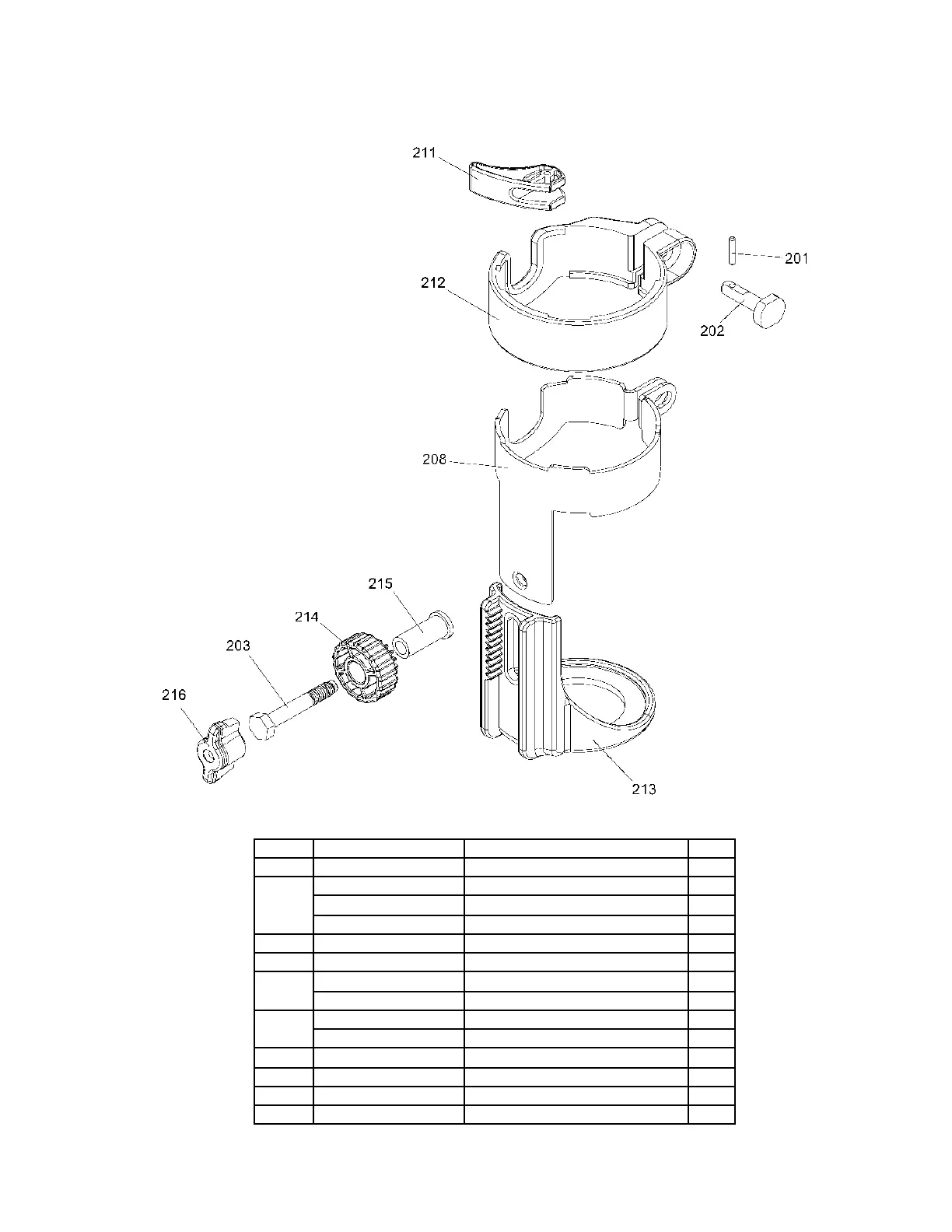

Page #32 background imageLoading...
Page #32 background image
Key #
Part #
Part Name
Qty
201
02AF-000041-I0
Fixing shaft
1
202
02AF-000076-00
Release lock pin
1
2218-MA0001-00
Release lock pin
1
2218-MA0001-01
Release lock pin
1
203
02AS-000287-00
Screw
1
208
2213-MA0010-00
Freecut metal round guide
1
211
2213-PA0010-00
Lock
1
2213-PA0010-01
Lock
1
212
2213-PA0011-00
Fixbase
1
2213-PA0011-01
Fixbase
1
213
2213-PA0012-00
Plastic guide base
1
214
2213-PA0013-00
Adjustment Gear 15T
1
215
2213-PA0014-00
Sleeve
1
216
2213-PA0015-00
Screw lock F
1
