MasterCraft Maximum User Manual

OPERATING INSTRUCTIONS
17
5 U.S. GALLONS (18.9 L) AIR COMPRESSOR 058-9308-0

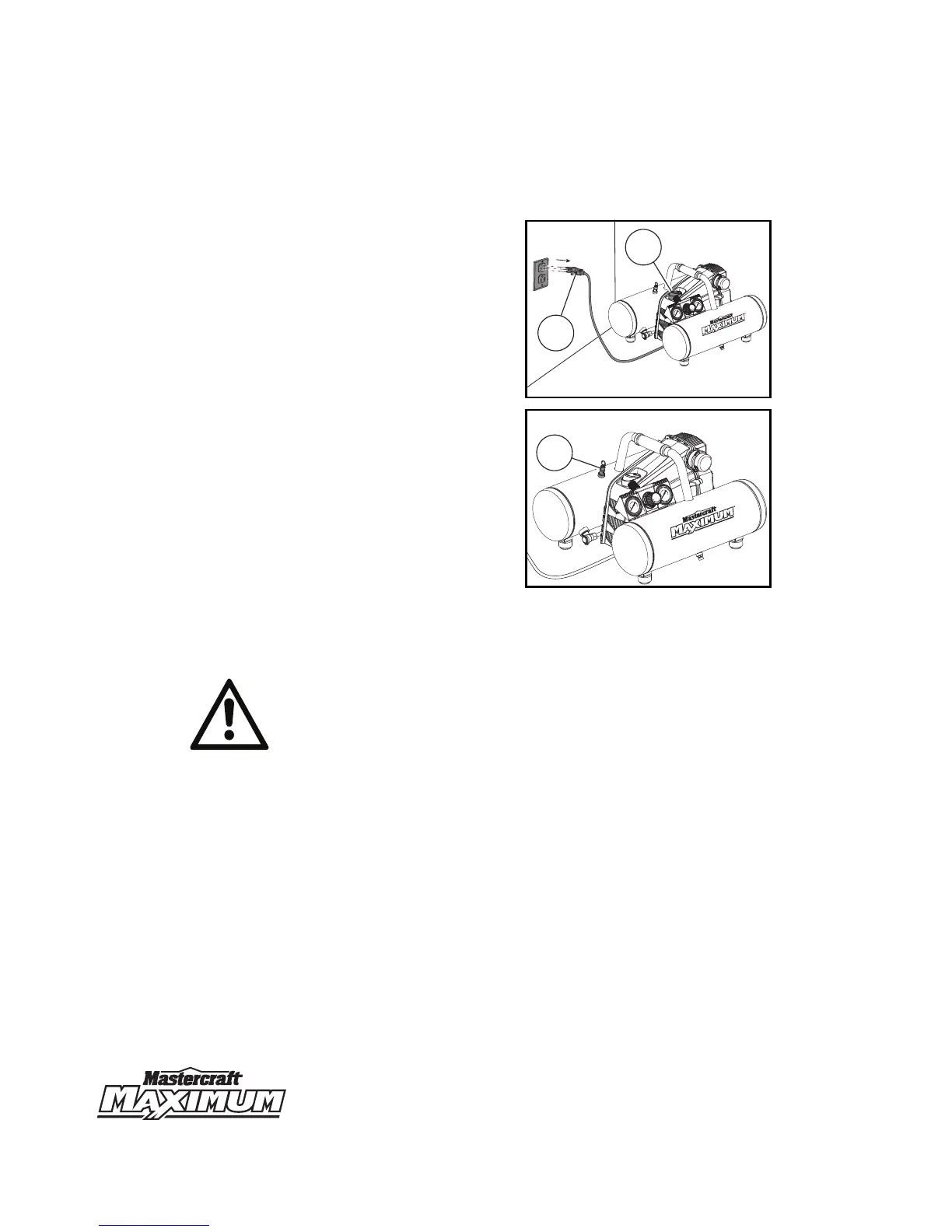

Shut down procedure
1. Turn the ON/OFF switch (1) to the OFF
position. Turn OFF the power supply and
unplug the power cord (2) from the
electrical outlet
(fig J) .
2. Reduce the pressure in the tank
through
the air hose. Pulling the safety valve
ring (1) will also reduce the pressure in
the tank
(fig K) .
3. Open the drain valves and release all
moisture in the tank.
MC-589308-12
fig J
0
0
5
0
2
5
0
75
1
2
5
18
1
5
1
0
5
100
1
5
0
175
2
0
0
225
2
5
0
0
25
0
5
1
0
15
20
5
0
75
1
0
0
125
1
50
175
2
00
22
5
2
5
0
2
1
MC-589308-12
fig K
0
0
50
25
0
75
125
18
15
10
5
100
150
175
200
225
250
0
25
0
5
10
15
20
50
75
100
125
150
175
200
225
250
1
CAUTION!
Potential hazard that may result in moderate injury or damage to
equipment.
• Wear safety glasses when opening the drain valves, as the air and moisture
released from the tank can propel debris that may cause eye injury.

MasterCraft Maximum Specifications

General

Power Source	Electric
Maximum Pressure	175 PSI
Max PSI	175 PSI
Voltage	120 V
Pump Type	Oil-Free
Amperage	15 Amps
Noise Level	78 dBA
