MasterCraft NXT20 2017 User Manual

2017 OWNERS MANUAL / 54
01 02 03 04 05 06
07 08
09
10 11
12 13
14
15 17 1816
19
20 21 22 23 24
25
29 30 32 353433 36 37 38 39 40 42 43 45 46 47
48 49 50
26
27 28
31 41 44

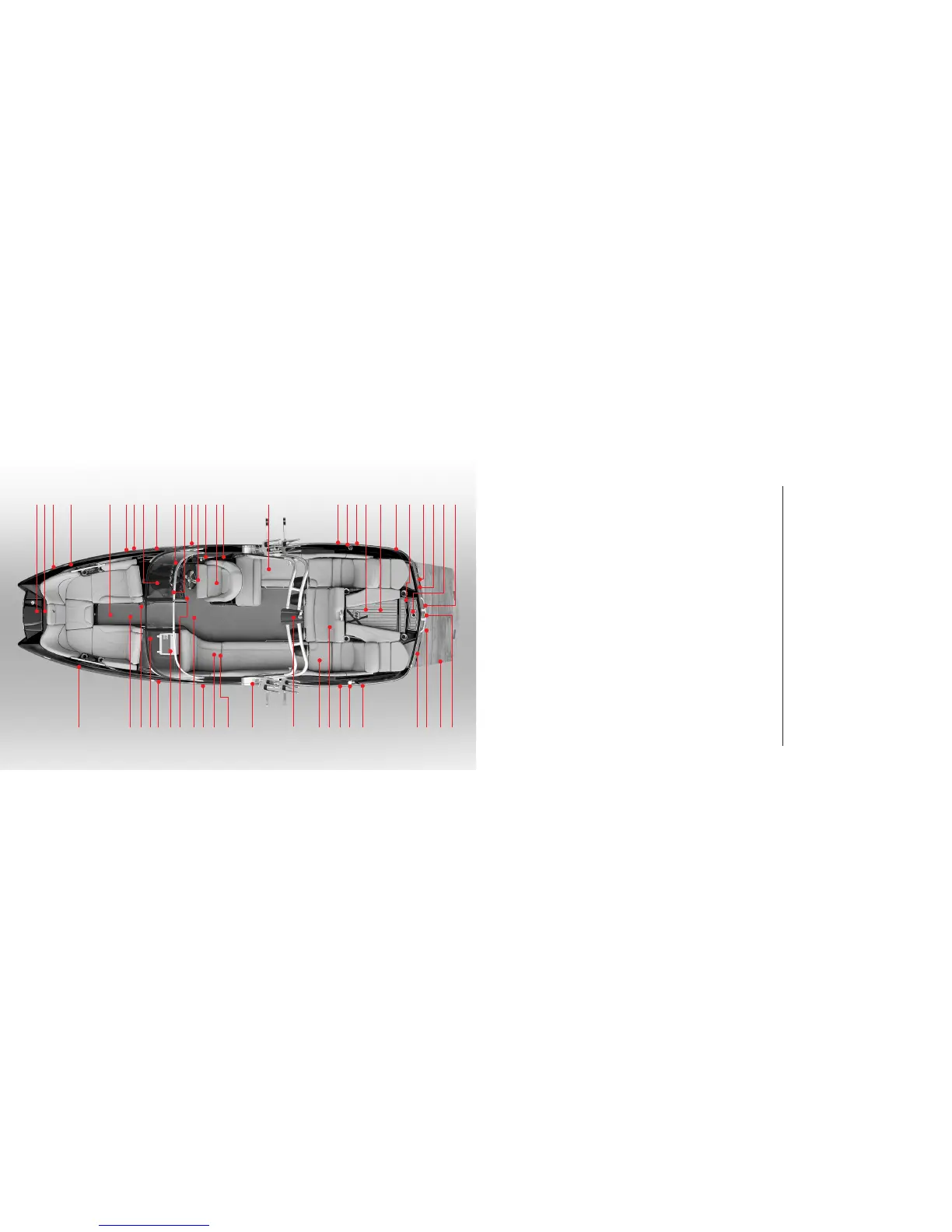

FEATURES
01. Ladder (where equipped)
02. Anchor Storage
03. Bow cleat
04. Horn
05. Ballast tank (beneath floorboard)
06. Bilge thru-hull
07. Ballast thru-hull
08. Circuit breaker panel (on kick panel beneath
instrument panel)
09. Navigation light
10. Instrument panel (details in Video Display
Gauge section)
11. Adjustable mirror
12. Midship cleat
13. Steering wheel
14. Shift/throttle control
15. Heated seat (where equipped)
16. Fire suppression unit manual override
17. Cooler (under seat)
18. Ballast thru-hull vents
19. Fuel tank filler
20. Stern cleat
21. Engine compartment
22. Automatic fire extinguisher
23. Bilge thru-hull
24. Transom stereo remote
25. Freshwater flush port (where equipped)
26. Underwater lights (two, where equipped,
under swim platform)
27. Removable ski pylon (where equipped)
28. Transom drain plug (center beneath
swim platform)
29. Bow cleat
30. Bow filler cushion (where equipped)
31. Subwoofer
32. Amp (where equipped)
33. Navigation light
34. Glove box
35. Stereo remote (on dash)
36. Center drain plug (access plate under
carpet mat)
37. Midship cleat
38. Observer seat
39. Batteries (under seat)
40. Tower
41. Navigation Light
42. Battery ON-OFF switch (under seat)
43. Reversible seating
44. Ballast thru-hull vents
45. Fuel tank filler
46. Stern cleat
47. Surf tabs (each side, under swim
platform, where equipped)
48. Wake adjustment plate (under swim
platform, where equipped)
49. Swim platform
50. Transom rail with tow eye
SPECIFICATIONS
Length of Boat 24’6”
Width Amidship 102”
Boat Weight 5,350 lbs.
Length of Boat w/Platform 26’ 9”
Towing Length 30’ 10”
Towing Width 102”
Fuel Capacity 79 gallons
Maximum Capacity 15 people
or 2,142 lbs.
Bow: 5 people or 700 lbs.
Weight must be evenly distributed.
Storage space is located under:
Observer’s seat, bow seating, aft and wrap-
around seating, port and starboard sun pads.
X46

MasterCraft NXT20 2017 Specifications

General

Wakeboard Tower	Yes
Stereo System	Yes
Draft	27 in
Seating Capacity	11 people
Length Overall	20 ft
