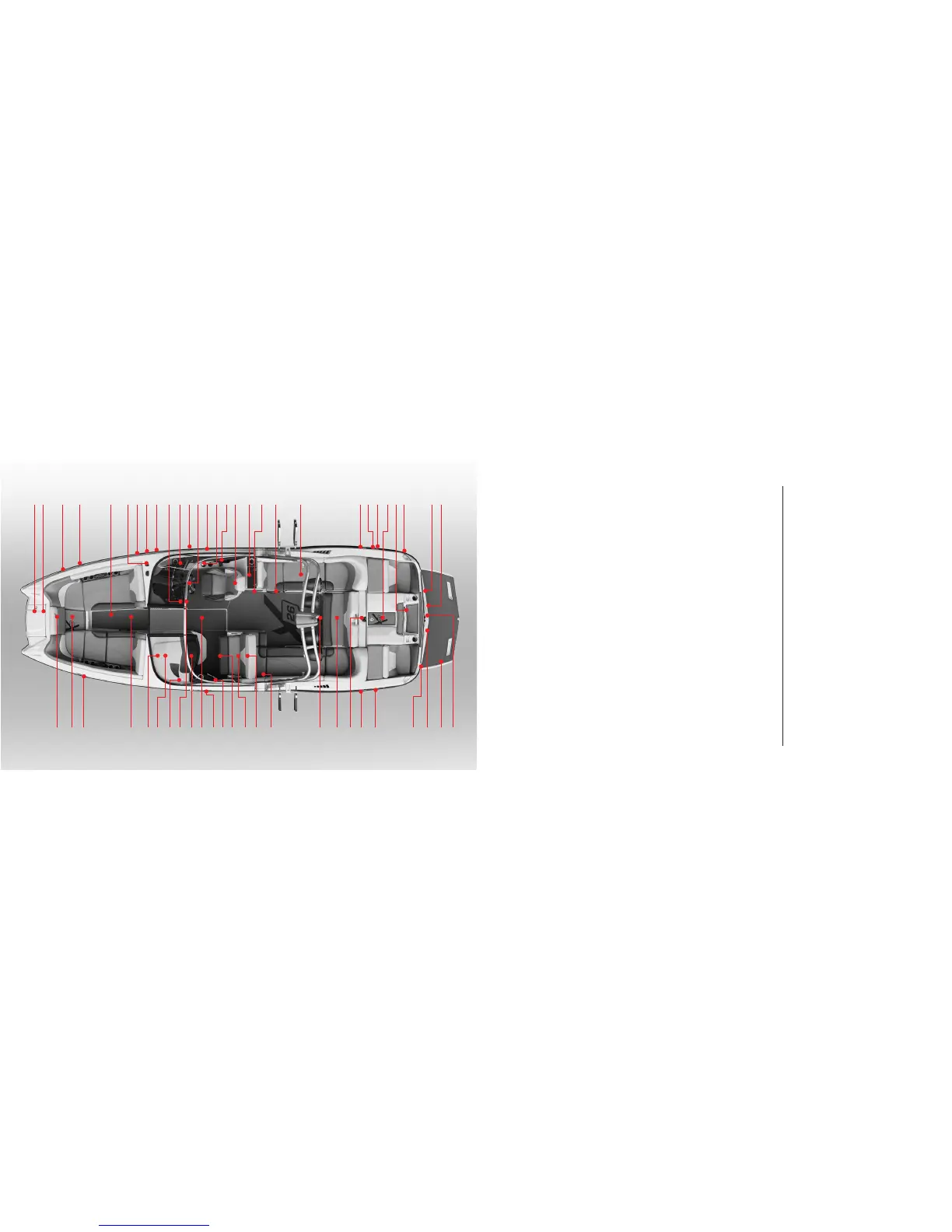

FEATURES
01. Bow Ladder Lid
02. Ladder (where equipped)
03. Horn
04. Bow cleat
05. Ballast tank (beneath floorboard)
06. Holding tank pump-out
07. Bilge thru-hull vent
08. Ballast thru-hull vents
09. Freshwater tank fill
10. Adjustable mirror (where equipped)
11. Instrument panel (details in Video Display Gauge
section)
12. Navigation light
13. Steering wheel
14. Midship cleat
15. Shift/throttle control
16. Fire suppression unit manual override
17. Heated seat (where equipped)
18. Wet bar and shower (where equipped)
19. Slide-out refrigerator (under sink, where
equipped)
20. Sub woofer
21. Cooler (under seat)
22. Fuel tank filler
23. Stern cleat
24. Ballast thru-hull
25. Automatic fire extinguisher (in engine
compartment)
26. Transom stereo remote
27. Bilge thru-hull vent
28. Freshwater flush port (where equipped)
29. Transom drain plug (center beneath swim
platform)
30. Anchor Storage
31. Reversible Seat / Step
32. Bow cleat
33. Bow filler cushion (where equipped)
34. Storage compartment/head (where equipped)
35. Hand-held fire extinguisher (inside head)
36. Amp (where equipped)
37. Stereo remote (on dash)
38. Glove box
39. Center drain plug (access plate under carpet)
40. Midship cleat
41. iPod interface (on side panel)
42. Battery switch and circuit breaker panel (on
panel below seat)
43. Batteries (under seat)
44. Convertible observer seat
45. Cooler (under seat)
46. Navigation/anchor light
47. Reversible seating (where equipped)
48. Removable ski pylon (where equipped)
49. Fuel tank filler
50. Stern cleat
51. Surf tabs (under swim platform, where equipped)
52. Wake adjustment plate (under swim platform,
where equipped)
53. Swim platform
54. Transom rail with tow eye
SPECIFICATIONS
Length of Boat 26’ 0”
Width Amidship 102”
Boat Weight 6,700 lbs.
Length of Boat w/Platform 28’ 4”
Towing Length 31’ 6”
Towing Width 102”
Fuel Capacity 88 gallons
Maximum Capacity 18 people
Bow: 5 people
Yacht Certified
Weight must be evenly distributed.
Storage space is located under:
Observer’s seat, bow seating, aft and wrap-
around seating, port and starboard sun pads.
X26

MasterCraft NXT20 2017 Specifications

General

Wakeboard Tower	Yes
Stereo System	Yes
Draft	27 in
Seating Capacity	11 people
Length Overall	20 ft
