2017 OWNERS MANUAL / 58

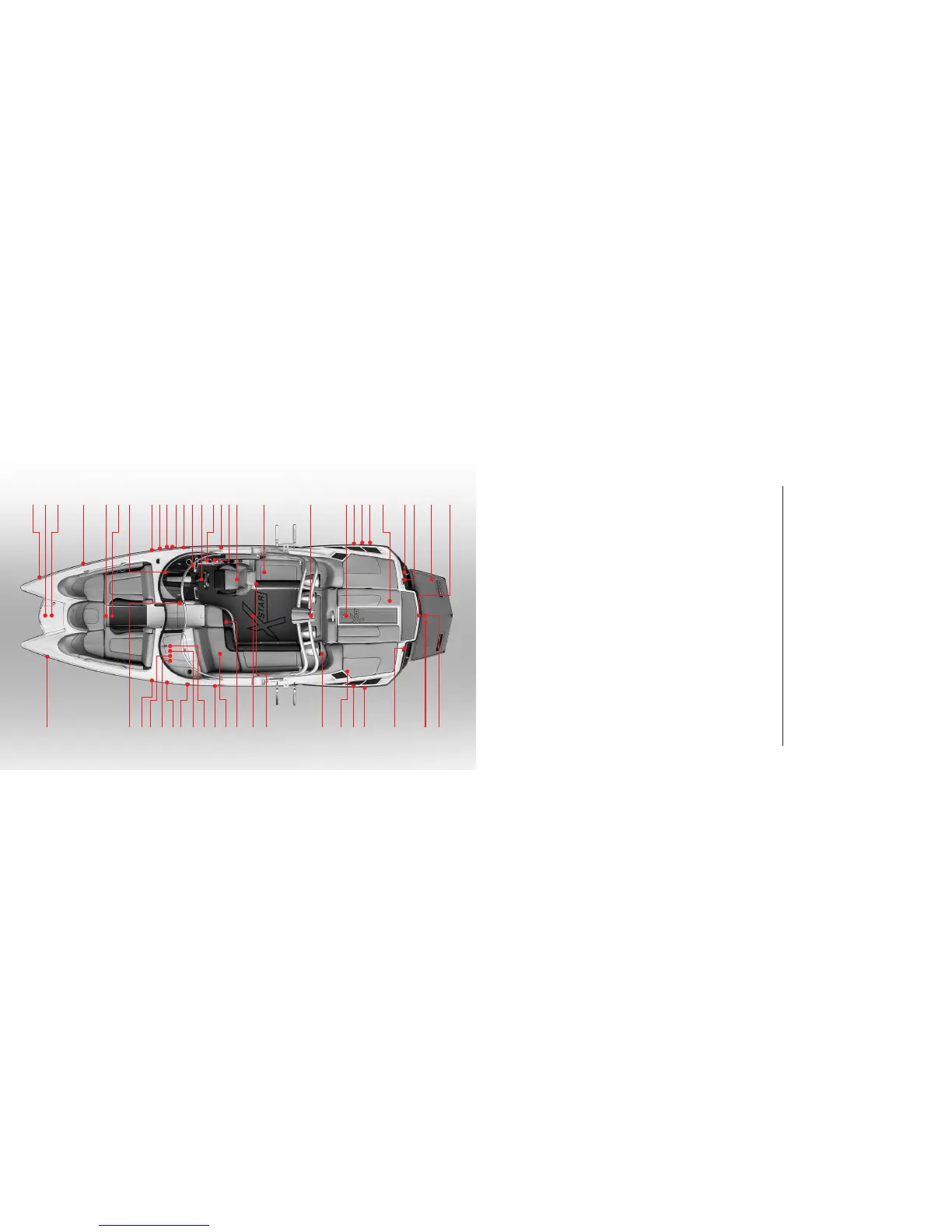

FEATURES
01. Bow cleat
02. Anchor storage
03. Ladder (where equipped)
04. Horn
05. Bow filler cushion (where equipped)
06. KGB ballast tank (beneath floorboard)
07. Circuit breaker panel (on kick panel beneath
instrument panel)
08. Bilge thru-hull outlet
09. Bow ballast bag thru-hull vent
10. KGB tank ballast thru-hull vents
11. Nav/anchor light
12. Fuel tank filler
13. Instrument panel (details in Video Display
Gauge section)
14. Steering wheel
15. Shift/throttle control
16. Midship cleat
17. Fire suppression unit manual override
18. Heated seat (where equipped)
19. Cooler (under seat)
20. Navigation light
21. Engine compartment
22. Stern cleat port and starboard near transom)
23. Ballast thru-hull vents
24. Bilge thru-hull outlet
25. Automatic fire extinguisher
26. Freshwater flush port (where equipped)
27. Transom stereo remote (where equipped)
28. Swim platform
29. Transom drain plug (center beneath
swim platform)
30. Bow cleat
31. Adjustable mirror
32. Ballast thru-hull vent
33. Amp
34. Hand-held fire extinguisher (inside)
35. Nav/anchor light
36. Fuel tank filler
37. iPod interface (inside, where equipped)
38. Glove box
39. Midship cleat
40. Observer seat (heated, where equipped)
41 Convertible judge’s seat
42. Center drain plug (access plate under lid)
43. Subwoofer
44. Batteries (including ON-OFF switch)
45. Ballast tank
46. Stern cleat
47. Ballast thru-hull vents
48. Underwater light switch (where equipped)
49. Wake adjustment plates (under swim
platform, where equipped)
50. Transom rail with tow eye
SPECIFICATIONS
Length of Boat 24’0”
Width Amidship 102”
Boat Weight 5,400 lbs.
Length of Boat w/Platform 26’ 1”
Towing Length 29’ 9”
Towing Width 102”
Fuel Capacity 74 gallons
Maximum Capacity 13 people
or 1,852 lbs.
Bow: 5 people or 700 lbs.
Weight must be evenly distributed.
Storage space is located under:
Observer’s seat, bow seating, aft and wrap-
around seating, port and starboard sun pads.
XSTAR
01 02 03 04 05 06 07 11 12 13 14 15 16 17 18 20 2119 22 23 25 26 27 28 29
30 31 353433 36 37 38 39 40 41 42 43 44 45 46 47 48
49
50
0908
10
24
32
