2017 OWNERS MANUAL / 182
Active Faults/Stored Faults
Shows the number of active faults and which fault number is
currently being displayed. To advance to the next fault, touch [NEXT]
and [PREV] to go back to the previous fault. Touching [BACK] re-
turns to the Settings Menu.
• SPN – “Suspect Parameter Number” - fault code If not translated
into text by the display, see the engine manufacturer’s literature for
the definition of the SPN number.
• FMI – “Failure Mode Indicator” - fault code The FMI is defined by
SAE J1939. If not translated into text, see the SAE standard, or the
engine manufacturer’s literature.
• Description Field – Most common SPN’s and FMI’s have text for
the description stored in the display. If there is no text, then this SPN
and FMI must be defined by referring to the engine manufacturer, or
the SAE J1939 standard.
NOTE: This field is only used with certain brands and models of
engines.
Corrective Action (Suggested action for correction):
Get Faults
Touching [Get Faults] queries the engine(s) ECU for feedback on
diagnostic codes that have been activated and stored in the ECU for
service needs.
3 EVENT DIAGNOSTICS
On the Diagnostics Menu, touch the 3 Event
Diagnostics touch command to access the
3 Event Diagnostics screen.
DIAGNOSTICS

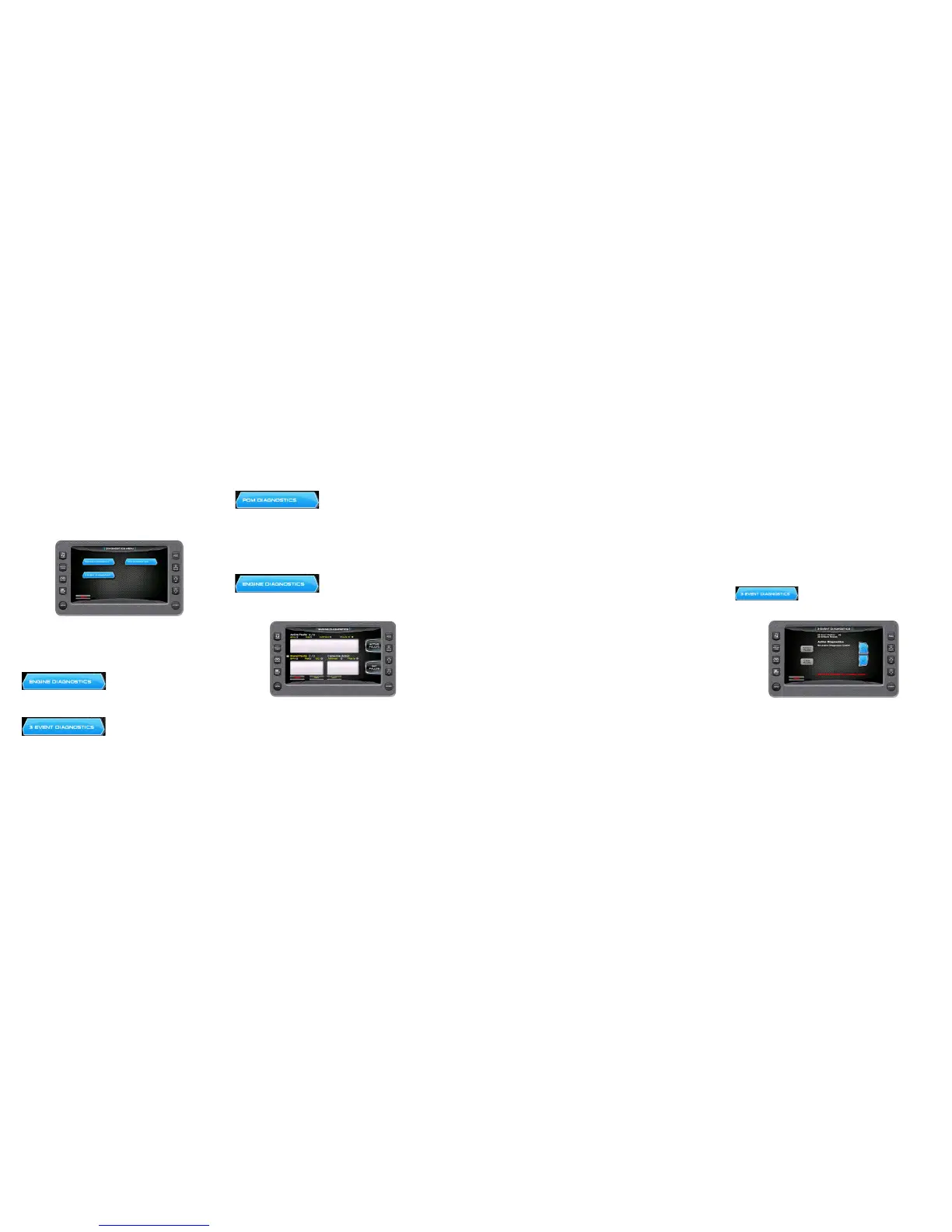

On the Settings Menu, touch the Diagnostics touch command to
access the Diagnostics screen.
When choosing this selection, the display will query the engine(s)
ECU, as illustrated following, and provide feedback.
Touch Commands Description
Engine Diagnostics - Displays feed-
back on any diagnostic codes that
have been activated and stored in the
ECU for service needs.
3 Event Diagnostics - Displays any 3
Event fault codes that have been ac-
tivated and allows you to clear faults.
PDM Diagnostics – Displays short
circuits, open circuit, over current,
in/out of range, and faults within the
system outputs, switch inputs, ana-
log inputs, and CAN communication.
ENGINE DIAGNOSTICS
On the Diagnostics Menu, touch the
Engine Diagnostics touch command
to access the Engine Diagnostic
screen.
The following is a list of field definitions contained on the ENGINE
DIAGNOSTICS screen:
