MasterCraft X23 2017 - Courtesy;Storage; Compartment Lights; Underwater Lights

2017 OWNERS MANUAL / 248
Operation

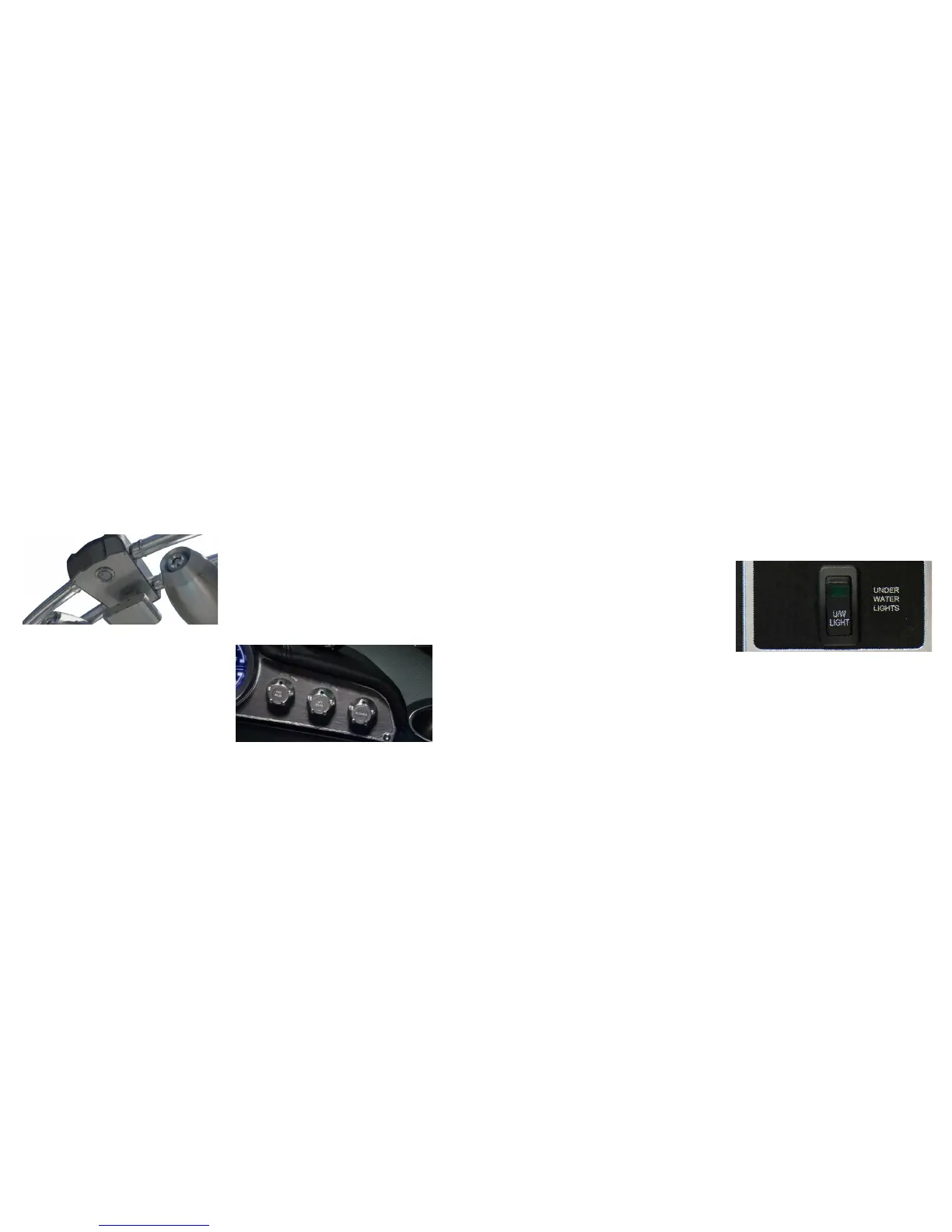

To turn the tower dome light on, press up on the light until it makes
a soft click, then release the light and it will turn on. To turn o the
light press up on the light and release (there will be no click).
Troubleshooting
If the light does not operate, check the main circuit breaker panel
to determine if a circuit may have tripped. Although the tower
dome light is made up of LED lights, which rarely burn out, it is
possible that they have burned out. Take the boat to an authorized
MasterCraft dealer to have the bulb(s) replaced when necessary.
Operation
The switch is a three-position switch located on the dash panel that
activates the courtesy lights or storage compartment(s) within the
boat. Turning the switch to the left will turn the courtesy lights ON,
and turning it to the right will turn the lights ON in the storage.
Troubleshooting
If lights do not operate, check the main circuit breaker panel to
determine if a circuit may have tripped. Reset the circuit; if it
continues to trip, take the boat to an authorized MasterCraft dealer.
If the circuit breaker has not tripped, the bulb may have burned out.
Although some lights are LED, which rarely burn out, it is possible.
Take the boat to an authorized MasterCraft dealer to have the bulb
replaced.
UNDERWATER LIGHTS
Models
All models, as an option.
Purpose
Underwater lights provide a significant improvement in visual
illumination of the water beneath swim platforms and in the area
surrounding the boat stern. In shallow water, this can be especially
COURTESY/STORAGE
COMPARTMENT LIGHTS
Models
All
Purpose
The courtesy lights and storage compartment lights provide
illumination for the interior deck and compartments.
Location
Mounted to various locations around the deck and in storage
compartments.
useful in determining safer operations.
Location
Located on the transom below the waterline under the swim plat-
form.
Operation
The combination switch is mounted in an aft position (transom or
storage area) or controlled from the driver’s armrest. The switch is
marked. Press up on the switch to turn ON (a green LED light will be
lighted when the lights are operating). Press down to turn OFF. Also
note that the underwater lights should never be operated unless
the boat is in the water. Even though these are LED lights, they
generate some heat and require the cooling eect of the water to
avoid premature burn-out of the bulbs. Underwater lights may have
thermal protection circuitry that will turn the light o when reaching
