4. If the blade is not 90° to the
fence, unscrew the fence
locking knobs completely
out and remove the fence
extensions.
5. Loosen all hex-head bolts
(Fig.4a). Rotate the fence until
the protractor is flush over its
entire length. Retighten the hex-
head bolts. Remount the fence
extensions.
NOTE: If the saw has not been
used recently, recheck blade squareness to the fence and readjust if
necessary.
MITER ANGLE INDICATOR ADJUSTMENT (Fig. 5) If Necessary
WARNING: Failure to unplug your saw could result in accidental starting
causing serious injury.
1. Place the miter table at the zero
position, making sure the miter
lock is secured in position.
2. Loosen the miter-angle indicator
screw and adjust the indicator to
the “0” mark on the miter scale
(Fig.5).
3. Tighten the miter angle indicator
screw.

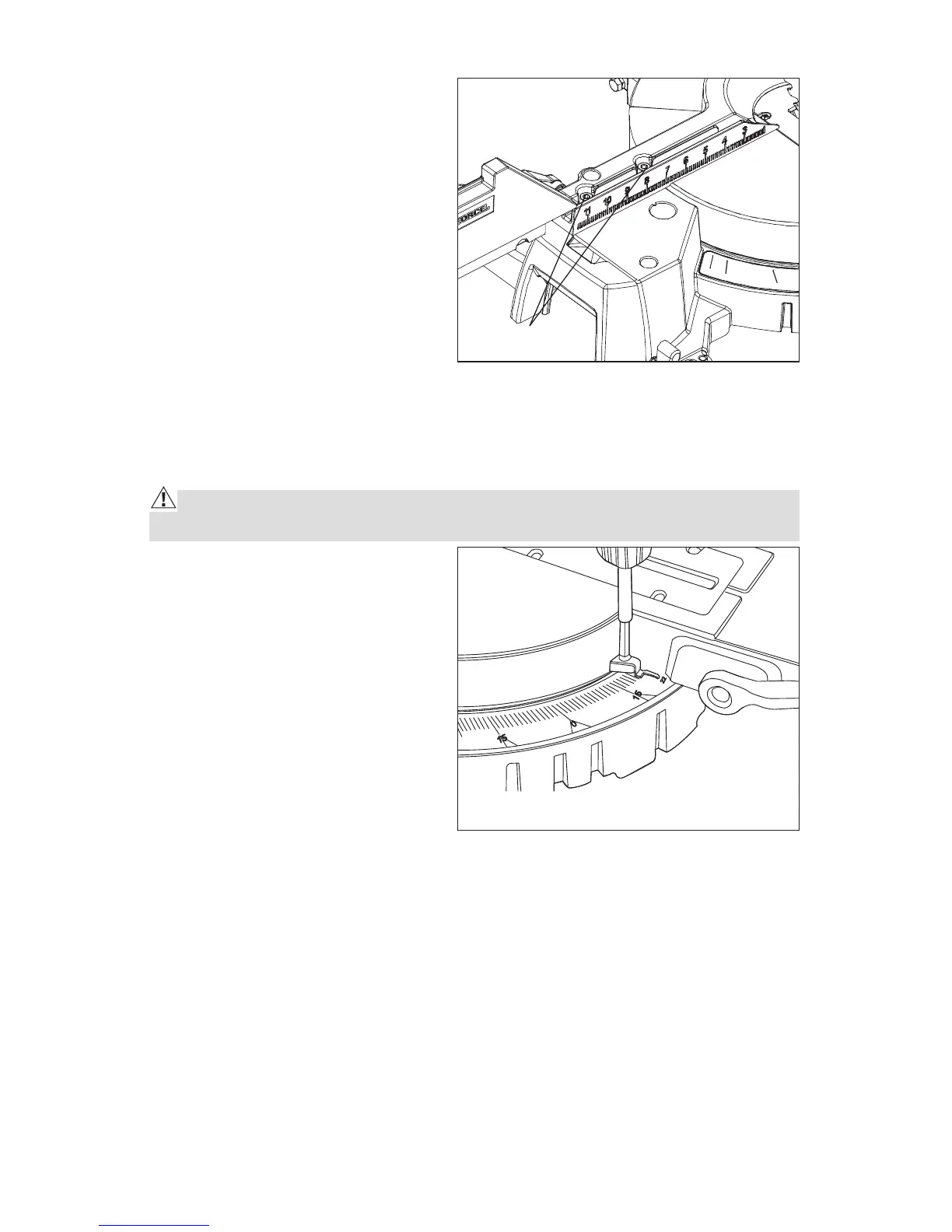

Fig. 4a
Fig. 5
Hex-head bolts
