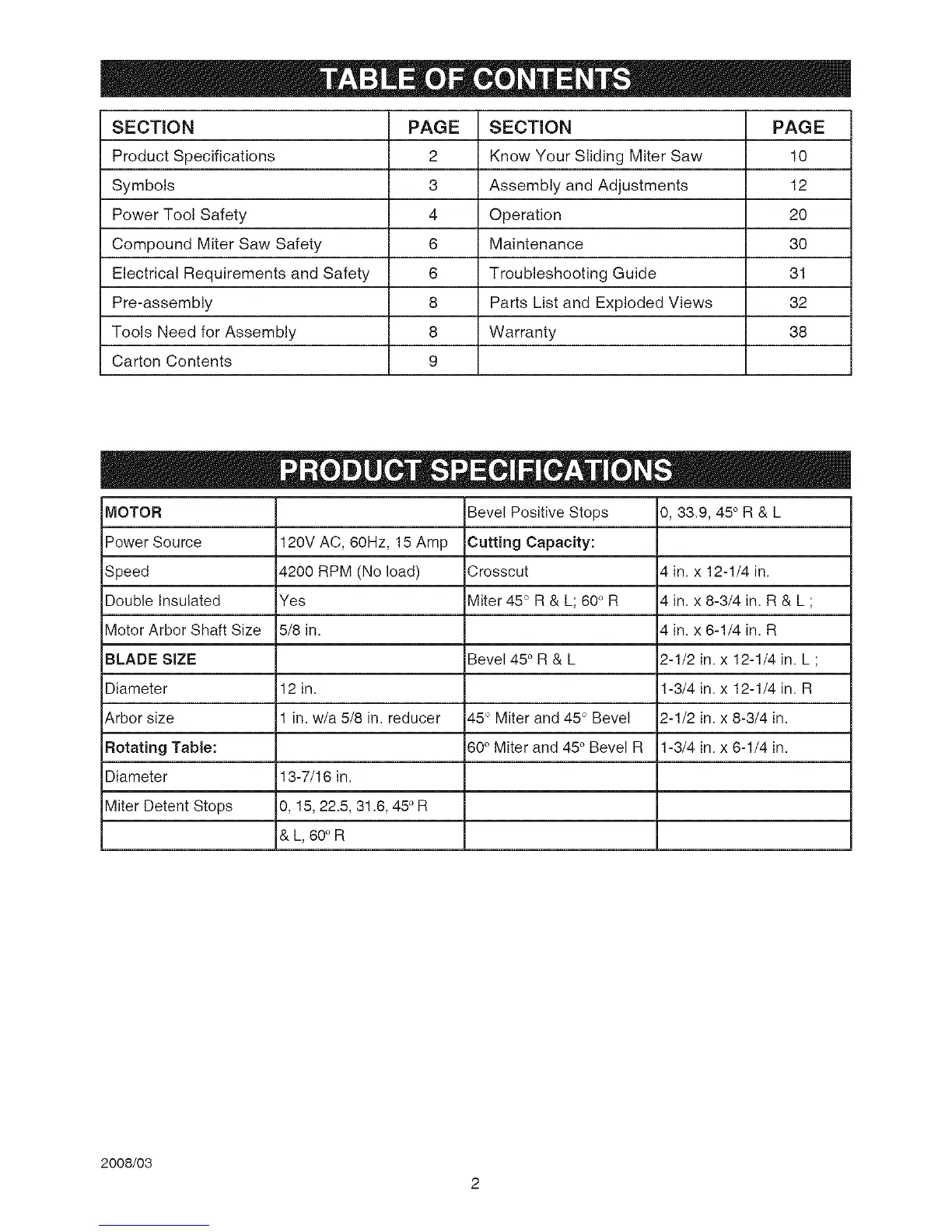

SECTION PAGE SECTION PAGE
ProductSpecifications 2 KnowYourSlidingMiterSaw 10
Symbols 3 AssemblyandAdjustments 12
PowerToolSafety 4 Operation 20
CompoundMiterSawSafety 6 Maintenance 30
ElectricalRequirementsandSafety 6 TroubleshootingGuide 31
Pre-assembly 8 PartsListandExplodedViews 32
ToolsNeedforAssembly 8 Warranty 38
CartonContents 9
MOTOR
PowerSource
Speed
DoubleInsulated
MotorArborShaftSize
BLADESIZE
Diameter
Arbor size
Rotating Table:
Diameter
Miter Detent Stops
120V AC, 60Hz, 15 Amp
4200 RPM (No load)
Yes
5/8 in.
12 in.
1 in. w/a 5/8 in. reducer
13-7/16 in.
0, 15, 22.5, 31.6, 45 ° R
& L, 60 ° R
Bevel Positive Stops
Cutting Capacity:
Crosscut
Miter 45 ° R & L; 60 ° R
Bevel 45 ° R & L
45 ° Miter and 45 ° Bevel
60 ° Miter and 45 ° Bevel R
0, 33.9, 45 ° R & L
4 in. x 12-1/4 in.
4 in. x 8-3/4 in. R & L ;
4 in. x 6-1/4 in. R
2-1/2 in. x 12-1/4 in. L ;
-3/4 in. x 12-1/4 in. R
2-1/2 in. x 8-3/4 in.
-3/4 in. x 6-1/4 in.
2008/03
