Mastervolt CHARGEMASTER 24/20-3

Installation manual ChargeMaster 1
Model 12/35-3 12/50-3 24/20-3 24/30-3
Nominal input voltage: 120/230V 120/230V 120/230V 120/230V
Nominal input
frequency:
50/60Hz 50/60Hz 50/60Hz 50/60Hz
Full load consumption: 575VA 825VA 660VA 925VA
Nominal output
voltage:
12V 12V 24V 24V
Total maximum charge
current:
35A at 14.4V 50A at 14.4V 20A at 28.8V 30A at 28.8V
Weight including cable
and bracket:
4kg (9Lbs) 4kg (9Lbs) 4kg (9Lbs) 4kg (9Lbs)
DC consumption <5mA <5mA <2.5mA <2.5mA
Protection degree IP23 IP23 IP23 IP23
Installation relevant specifications

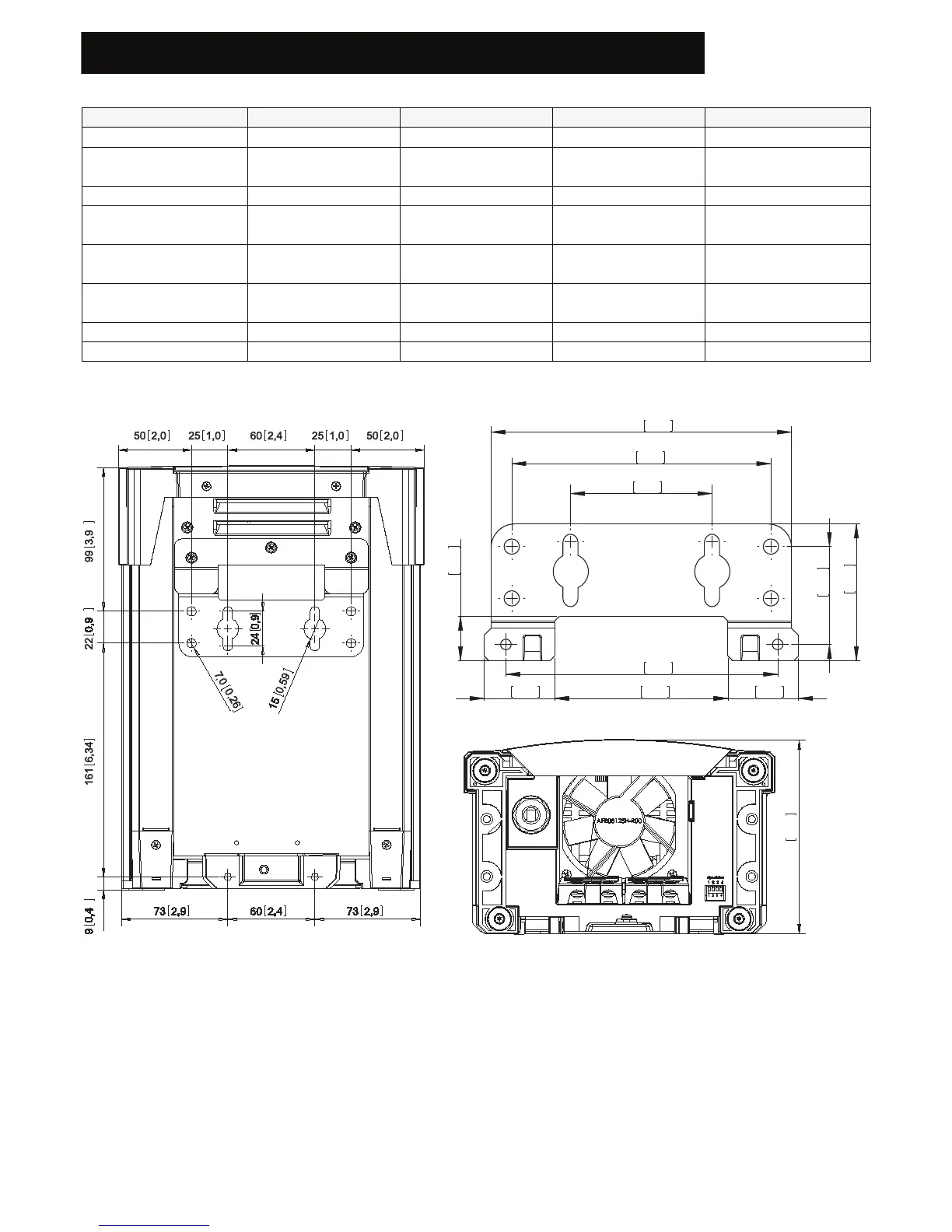

Installation dimensions in mm [inch]
131 5,16
110 4,33
60 2,36
41,6 1,64
115 4,54
73,5 2,89
128 5,02
58,1 2,29
18,8 0,74
30 1,1830 1,18
