5. Front panel

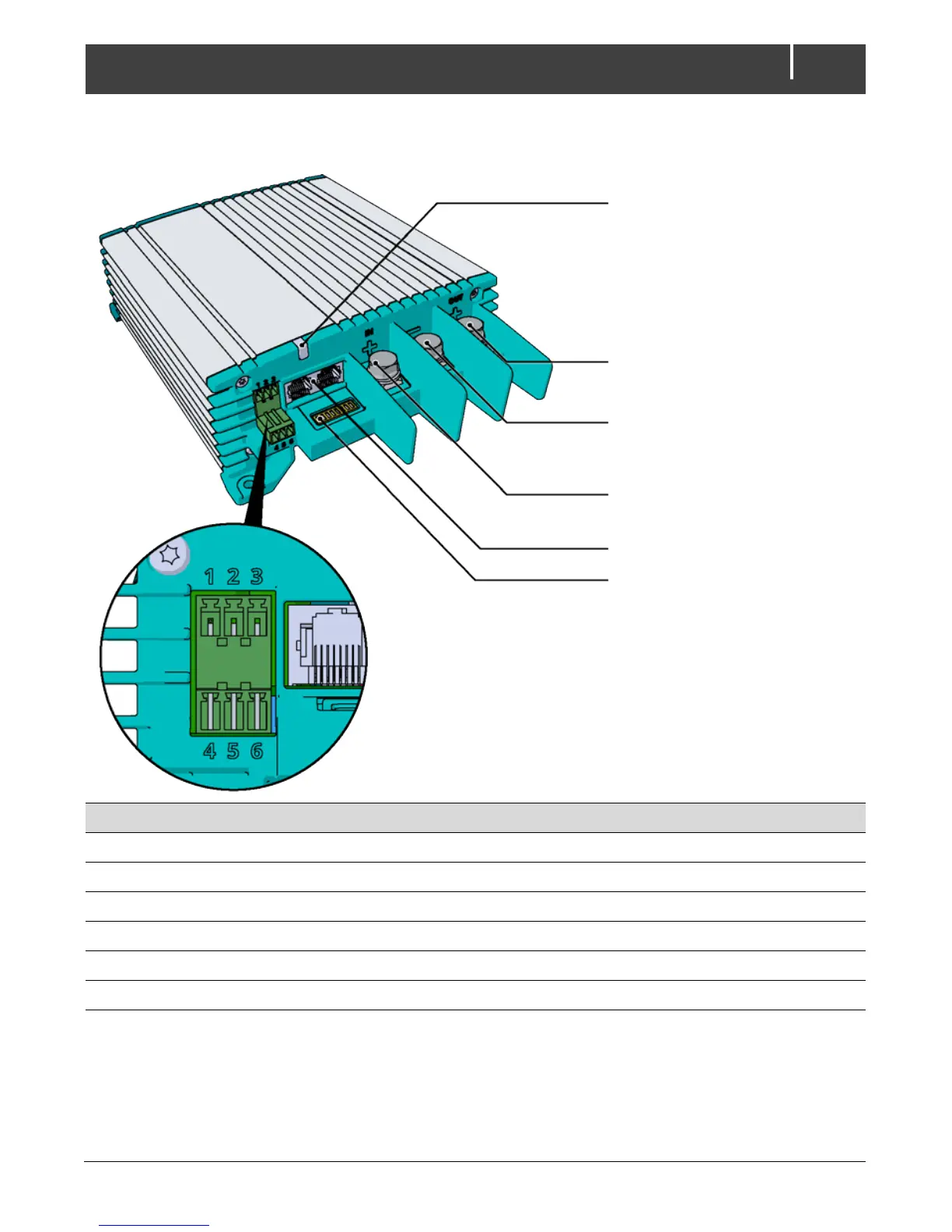

Front panel
1 Status LED
2 + Output
3 Ground
4 + Input
5 MasterBus (2x)
6 DIP switch
7 Accessories connector
Pin 1 : + battery voltage sense input
Pin 2 : - battery voltage sense input
Pin 3 : not used
Pin 4 : remote switch input
Pin 5-6 : battery temperature sensor input
1
2
3
4
5
6
7
