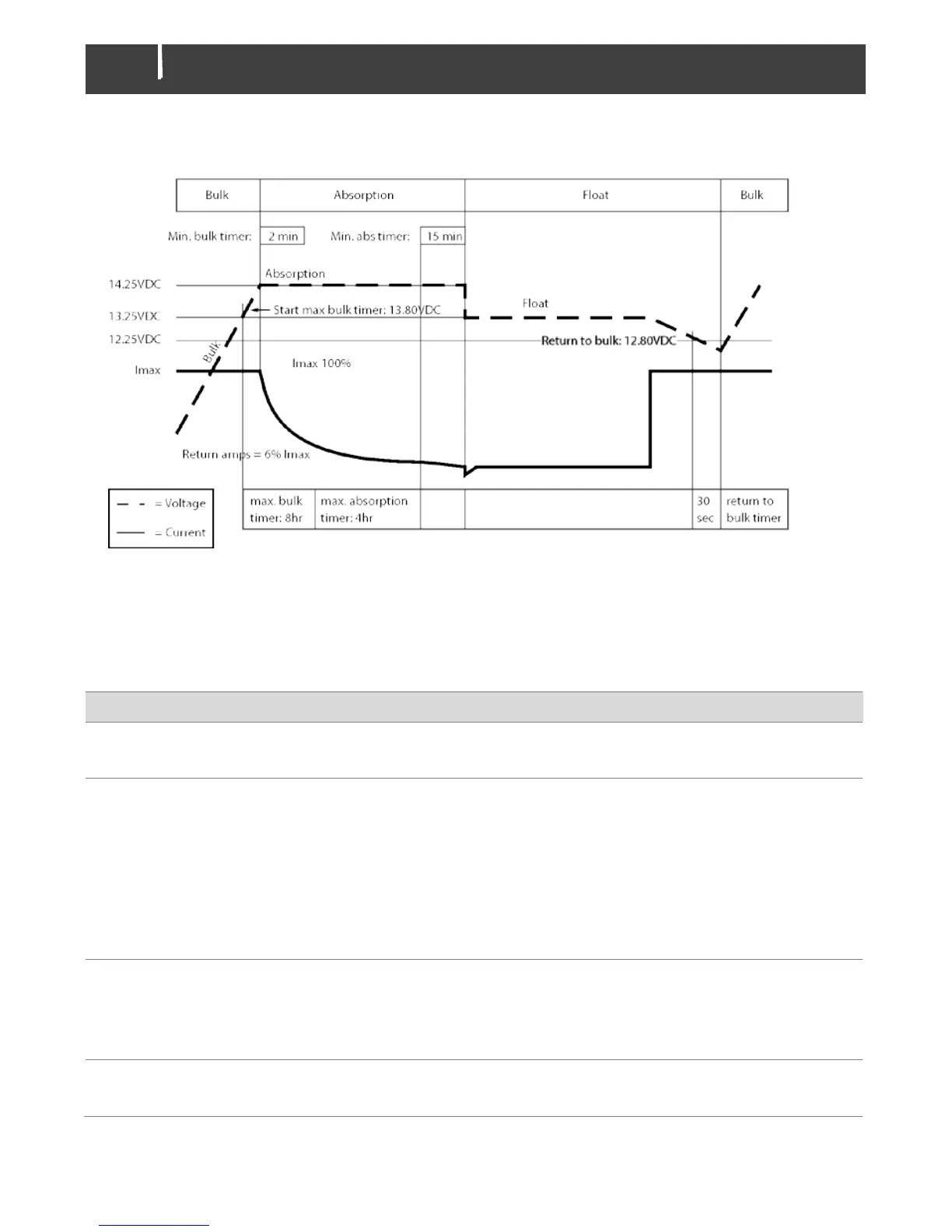

Figure 2. Typical charge characteristic (at 25°C / 77°F). For a 24 V battery charger, multiply the voltages by two.
11. Operation
Battery charger operation modes
Mode Explanation
Charging
The Mac Plus is in charging mode if it meets the switch-on
conditions (see dipswich/ MasterBus settings)
Standby
The Mac Plus goes to standby when is does not meet the
switch-on conditions (see dipswich/ MasterBus settings)
Or
Switched off by the on / off button in the MasterBus menu or by
a MasterBus event
Sleep (low no-load power
consumption)
The Mac Plus goes to sleep mode when the sleep delay has
passed to reduce the no-load power consumption
Every 5 sonds, the Mac Plus scans if the configured battery
charger meets de switch-on confitions
Alarm
Possible error, connect MasterBus and analyse the situation
