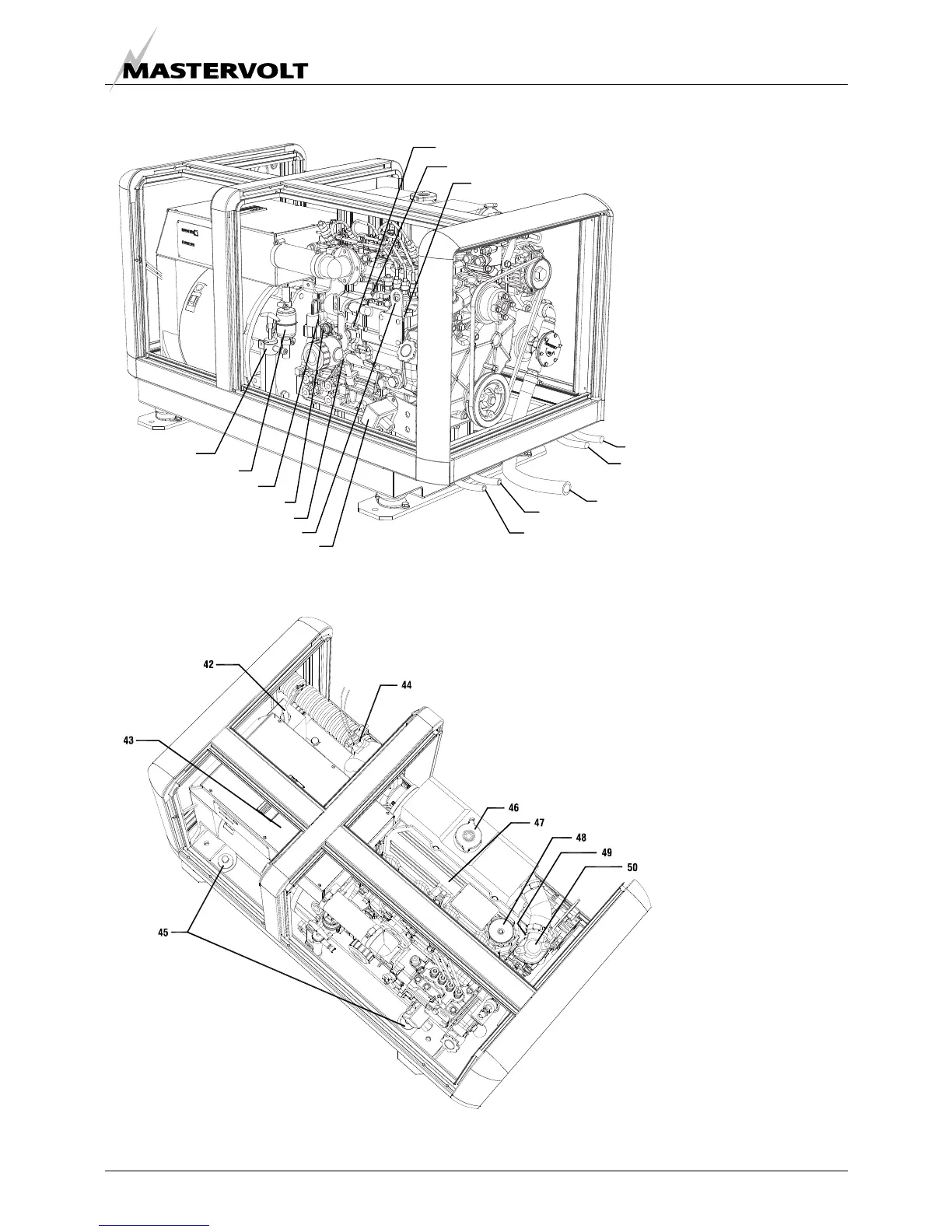

Fig. 5: Front right view main components Whisper 15 Ultra Three Phase
Fig. 6: Top View main components Whisper15 Ultra Three Phase
28
38
37
41
27
29
39
40
30
36
35
34
33
32
31
42 Hoist eye rear
43 Air cleaner element
44 Failsafe
45 Temperature switch
exhaust
46 Filler cap engine coolant
47 Rocker cover
48 Filler cap engine oil
49 Temperature switch
coolant
50 Thermostat housing
27 Engine speed adjusting
screw
28 Injection pump air
bleeding screw
29 Engine serial number
30 Oil sump handpump
31 Fuel filter
32 Coolant drain plug
33 Engine oil pressure switch
34 Engine oil dipstick
35 Hoist eye front
36 Fuel lift pump
37 Battery negative (–)
25mm²
38 Battery positive (+)
25mm²
39 Raw water inlet Ø20mm
40 Fuel in Ø8mm
41 Fuel out Ø8mm
