2.4 COMPONENTS
2.4.1 Main components to identify

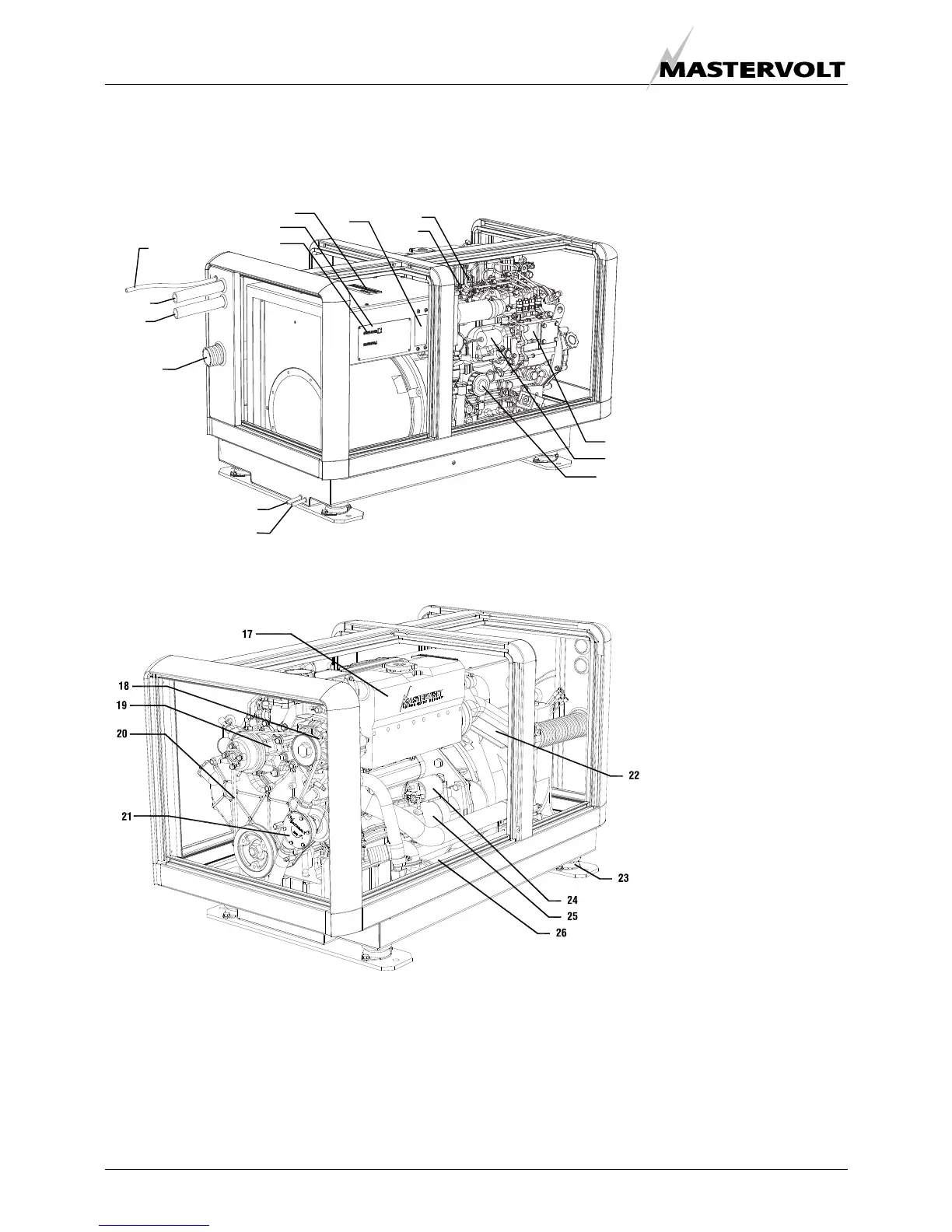

Fig. 3 Frontleft view main components Whisper 12 Ultra – Three phase.
Fig. 4: Rear view main components Whisper 15 Ultra Three Phase.
01
04
03
02
05
06
07
08
09
10
12
13
14
15
16
17 Exhaust manifold
(watercooled)
18 Alternator (12VDC)
19 Engine coolant pump
20 V-belt
21 Raw water pump
22 Cooling water injection
bend
23 Rubber engine mounting
24 Starter motor solenoid
25 Starter motor
26 Heat exchanger
01 Identification plate
02 Digital Diesel Control
(DDC)
03 Control panel
04 Fuses
05 Fuel injector (4x)
06 Glowplug (4x)
07 Expansion tank Ø8mm
08 Bypass cooling water out
Ø20mm
09 Bypass cooling water in
Ø20mm
10 Exhaust hose Ø51mm
12 Remote control
13 AC power output
14 Fuel injection pump
15 Fuel solenoid
16 Engine oil filter
