Mastervolt WHISPER 6 ULTRA

INSTALLATION
10 Copyright © 2009 Mastervolt / May 2009 / Whisper 6/8/12/16 Ultra for mobile applications / EN

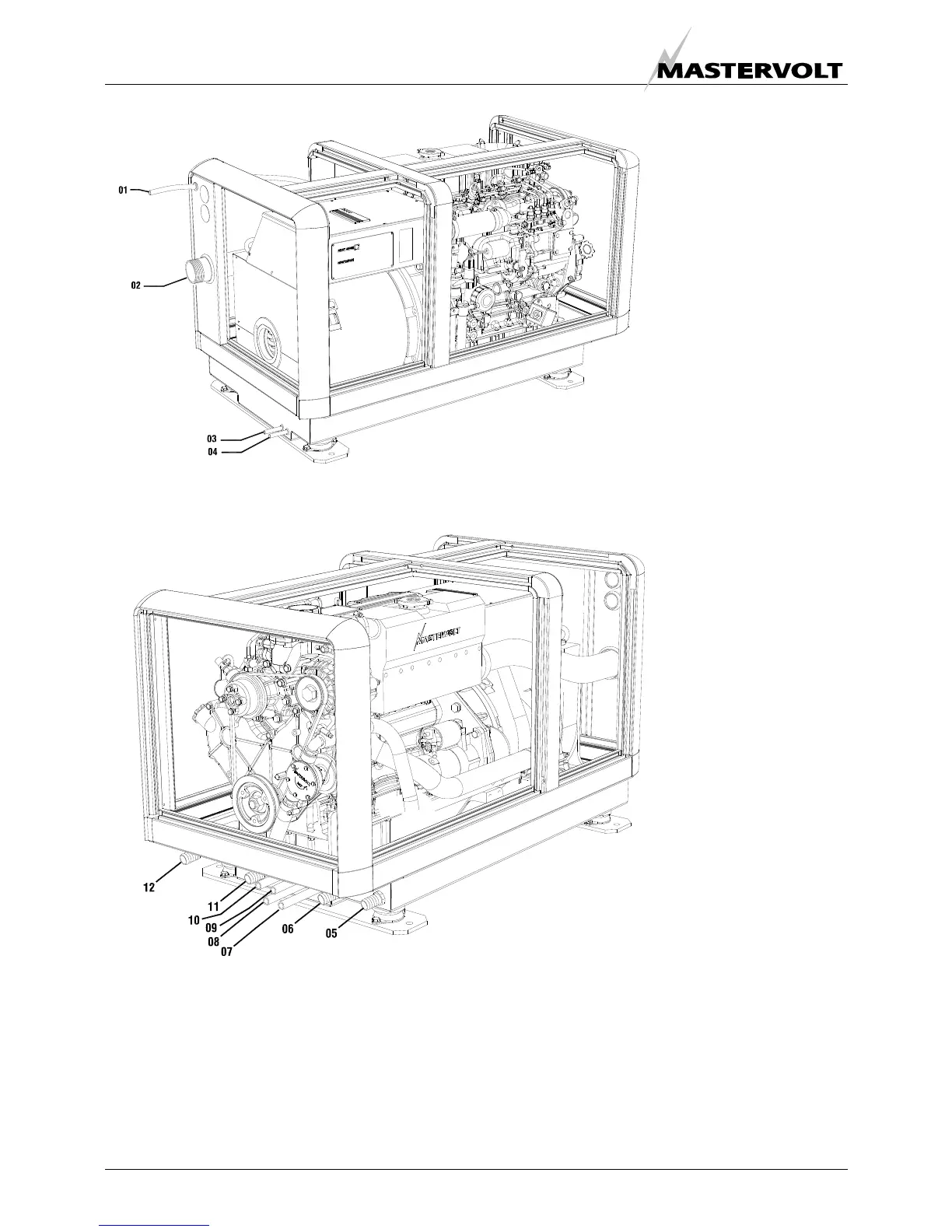

Fig. 9a Connections Whisper 12 Ultra
Fig. 9b Connections Whisper 12 Ultra
05 Coolant engine out
06 Coolant generator out
07 Fuel out Ø8mm
08 Fuel in Ø8mm
09 Battery negative (–)
25mm2
10 Battery positive (+)
25mm2
11 Coolant generator in
12 Coolant engine in
01 Expansion tank Ø8mm
02 Exhaust 1½”
03 Remote control
04 AC power output
