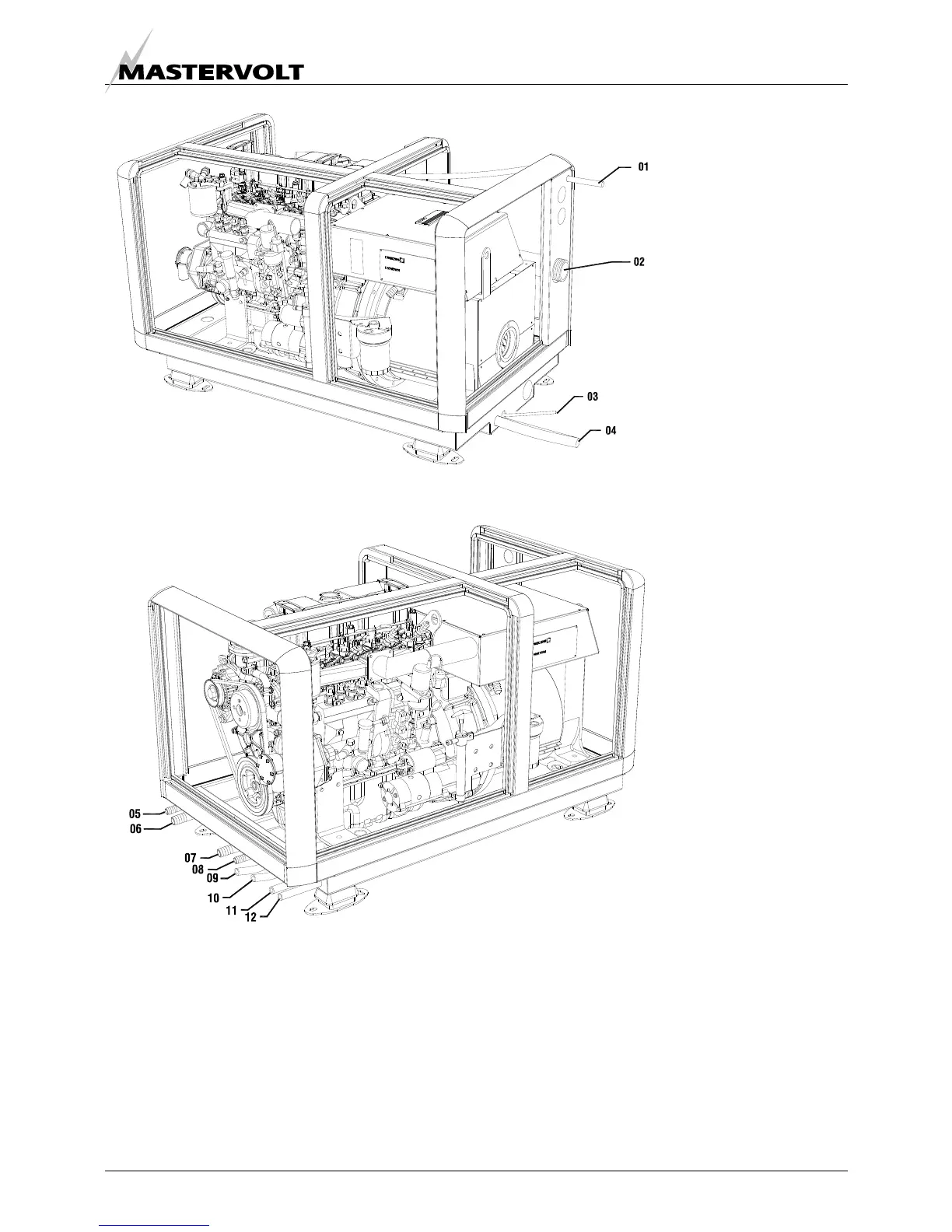

Fig. 10a Connections Whisper 16 Ultra
Fig. 10b Connections Whisper 16 Ultra
01 Expansion tank Ø8mm
02 Exhaust 1½”
03 Remote control
04 AC power output
05 Coolant engine out
06 Coolant generator out
07 Coolant generator in
08 Coolant engine in
09 Battery positive (+)
35mm2
10 Battery negative (–)
35mm2
11 Fuel in Ø8mm
12 Fuel out Ø8mm
