DIAGRAMS & DRAWINGS
34 Copyright © 2009 Mastervolt / May 2009 / Whisper 7/9.5/15/20 Ultra for mobile applications / US
4.2 LAYOUT GENERATOR CONTROL FOR WHISPER 7 ULTRA WITH 12VDC FAN

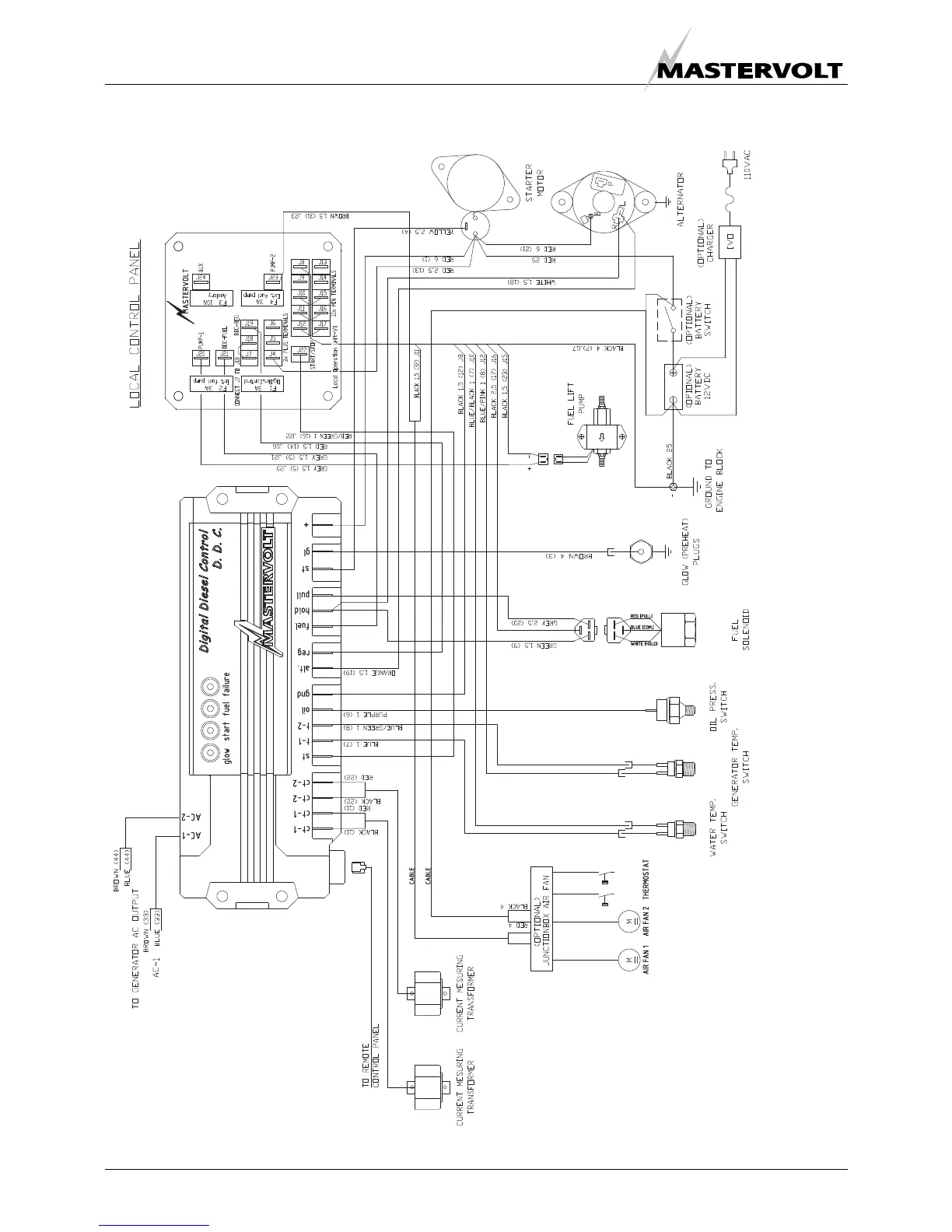

Fig. 40: Layout generator control for Whisper 7 Ultra, using a 12V DC radiator fan
