4.4 LAYOUT GENERATOR CONTROL FOR WHISPER 20 ULTRA WITH 120VAC FAN

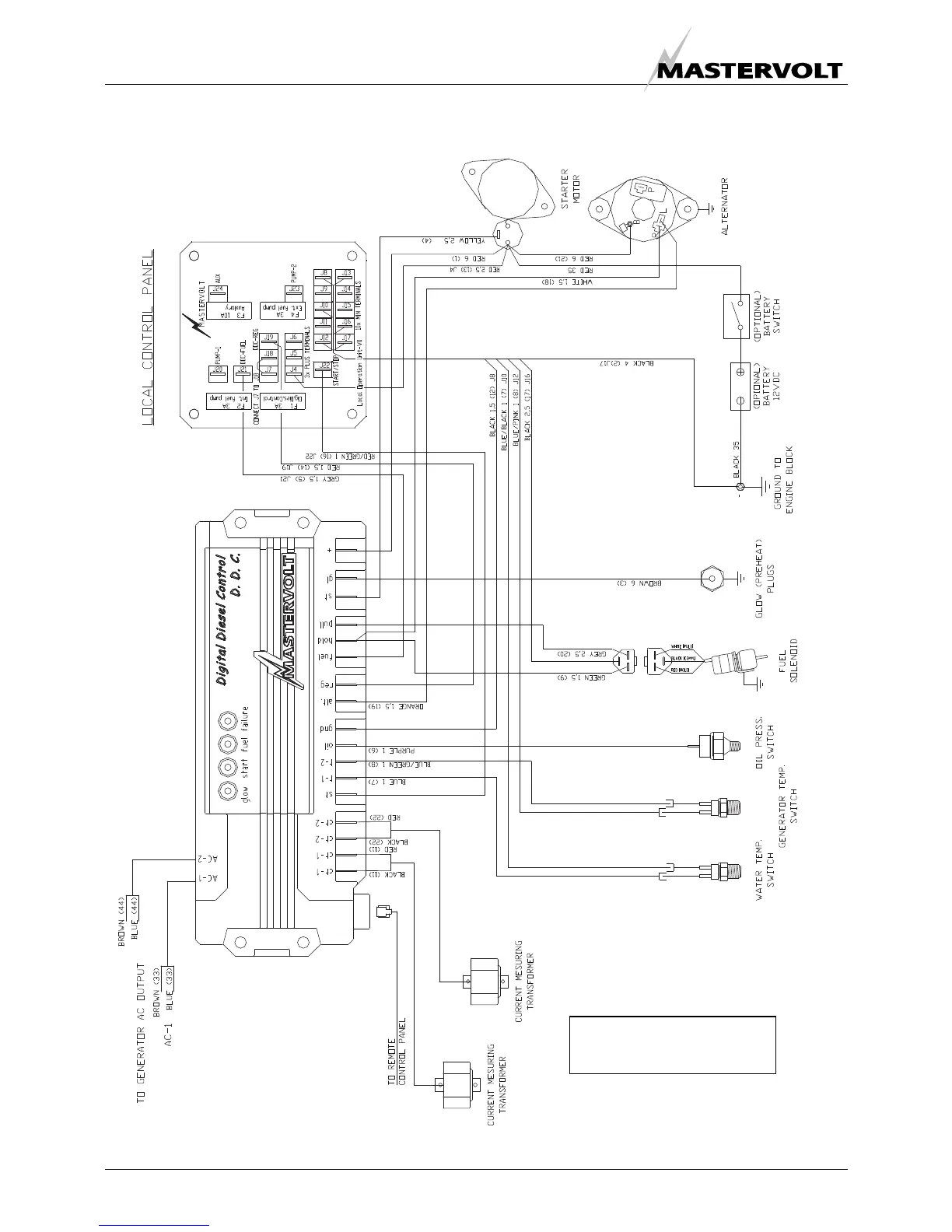

Fig. 42: Layout generator control for Whisper 20 Ultra with 120VAC radiator fan
See section 4.8 for connection
of 120V AC radiator fans
