Mastervolt whisper 7 ultra

INSTALLATION
8 Copyright © 2009 Mastervolt / May 2009 / Whisper 7/9.5/15/20 Ultra for mobile applications / US

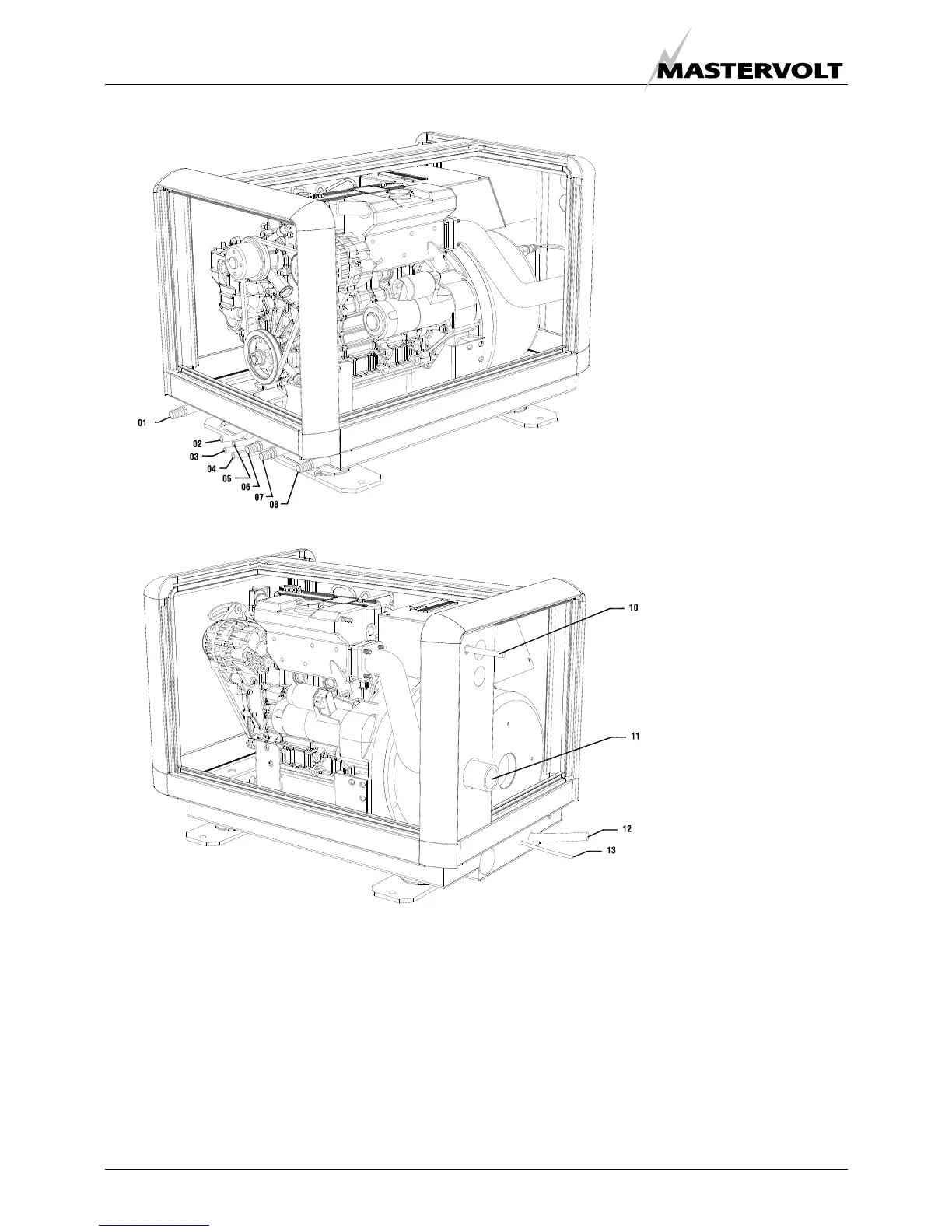

Fig. 7 Connections Whisper 7 Ultra for mobile application
01 Coolant generator in
02 Battery + (POS)
AWG3 (25mm2)
03 Fuel out Ø5/16’ (8mm)
04 Fuel in Ø5/16’ (8mm)
05 Battery – (NEG)
AWG3 (25mm2)
06 Coolant engine out
07 Coolant engine in
08 Coolant generator out
10 Expansion tank Ø5/16’
(Ø8mm)
11 Exhaust 1½”
12 AC power output
13 Remote control
