3.4 INSTALLATION MATERIALS

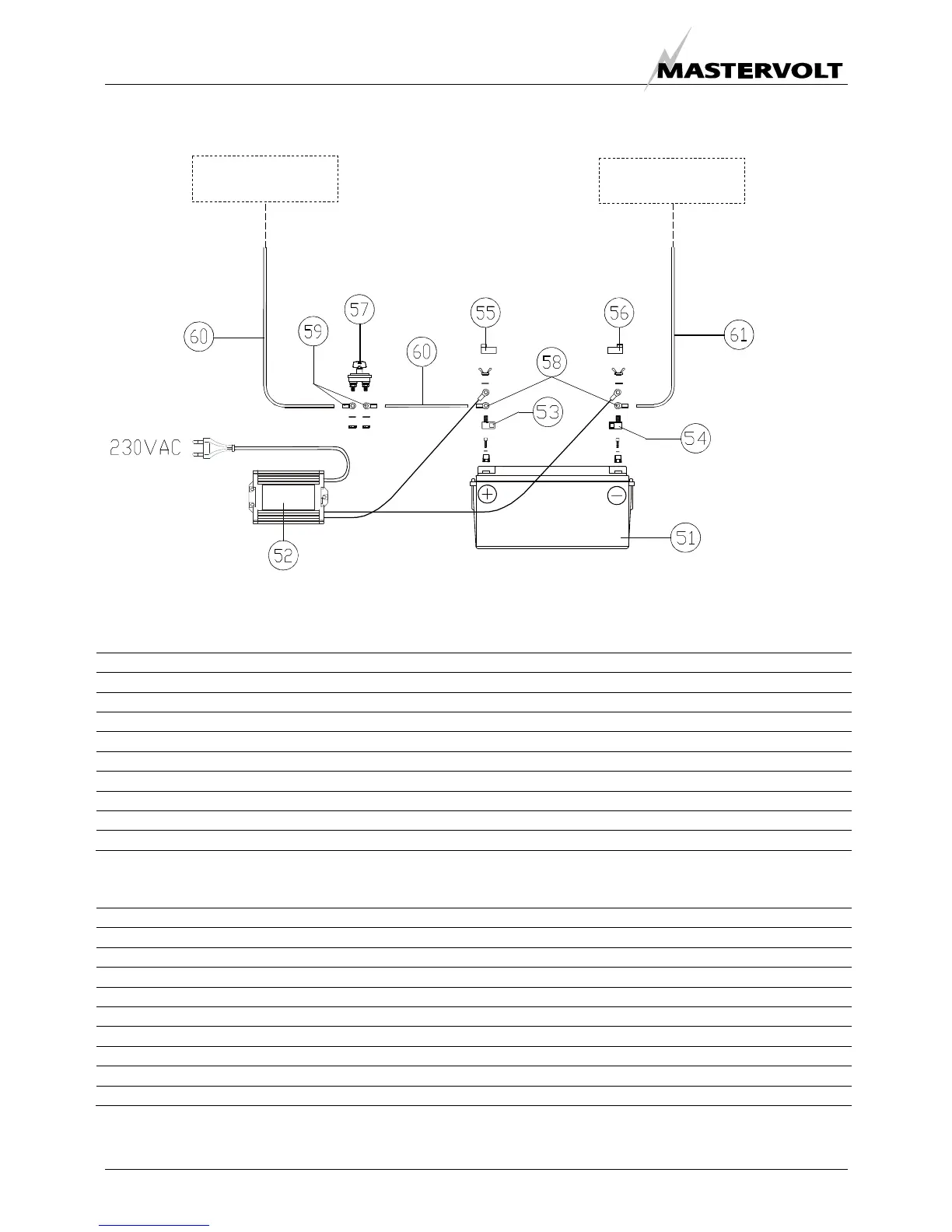

Figure 32: Installation materials battery installation kit
BATTERY INSTALLATION KIT 70 Ah for Whisper 6 Ultra, 8 Ultra and 12 Ultra
pos. qty article no description
51 1 62000700 MV 12/70 Ah AGM Battery
52 1 43011000 IVO Smart 12/10 230V/50-60Hz IP65 charger
53 1 68060100 Battery terminal with nut M8 PLUS
54 1 68060200 Battery terminal with nut M8 MINUS
55 1 68456902 Terminal Cover RED 456N9V02
56 1 68456914 Terminal Cover BLACK 456N9V14
57 1 79006005 Batteryswitch ON/OFF with key 250A
58 2 6503002508 Cable lug 25mm² / M8
59 2 6503002510 Cable lug 25mm² / M10
TOTAL 50230210 BATTERY INSTALLATION KIT 70Ah
BATTERY INSTALLATION KIT 160 Ah for Whisper 16 Ultra
pos. qty article no description
51 1 62001600 MV 12/160 Ah AGM Battery
52 1 43011000 IVO Smart 12/10 230V/50-60Hz IP65 charger
53 1 68060100 Battery terminal with nut M8 PLUS
54 1 68060200 Battery terminal with nut M8 MINUS
55 1 68456902 Terminal Cover RED 456N9V02
56 1 68456914 Terminal Cover BLACK 456N9V14
57 1 79006005 Batteryswitch ON/OFF with key 250A
58 2 6503003508 Cable lug 35mm² / M8
59 2 6503003510 Cable lug 35mm² / M10
TOTAL 50230220 BATTERY INSTALLATION KIT 160Ah
Generator
battery positive (+)
Generator
battery negative (–)
