4.14 DIMENSIONS WHISPER 12 ULTRA

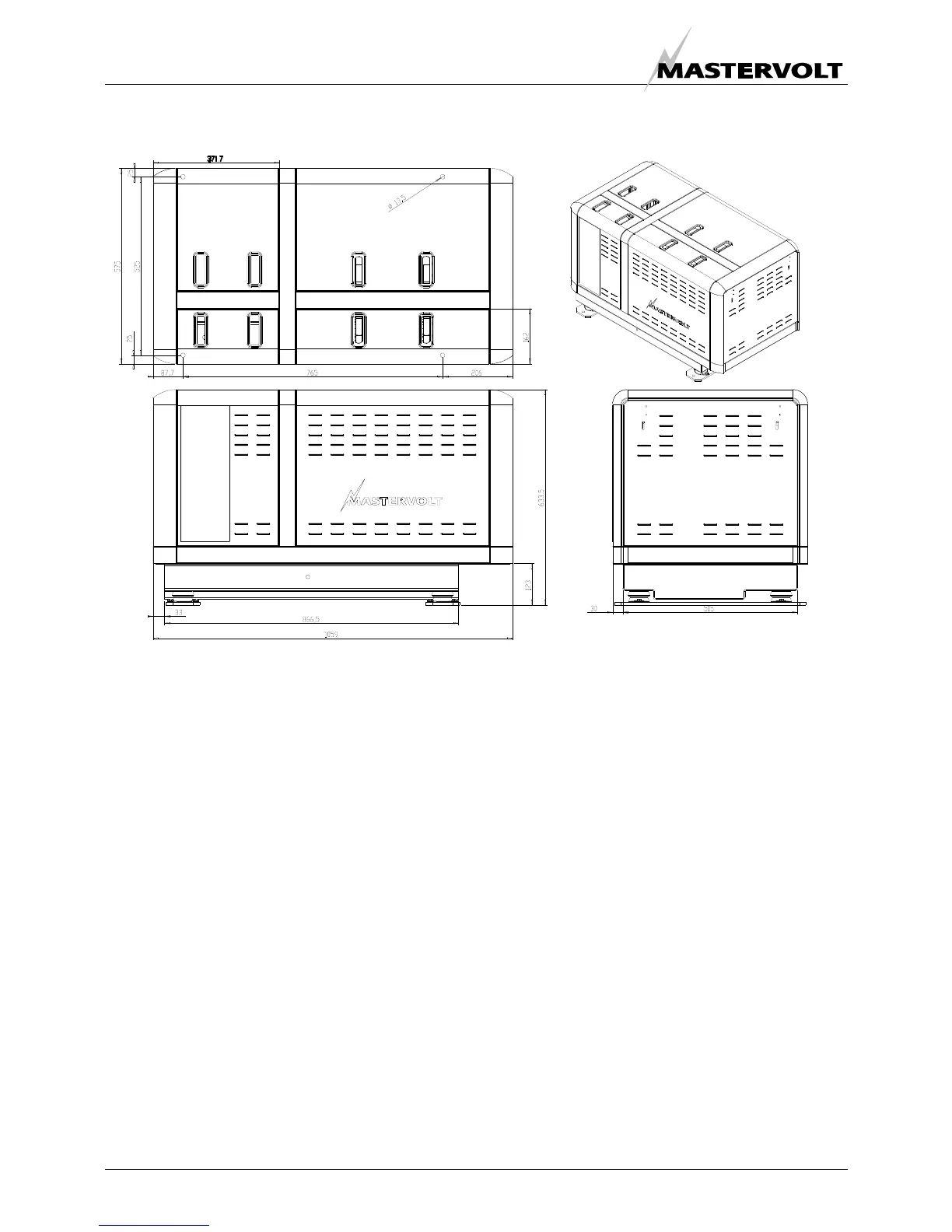

Fig. 51: Outer dimensions (mm) Whisper 12-Ultra
CONNECTIONS WHISPER 12 Ultra: BOX DIMENSIONS WHISPER 12 ULTRA
• exhaust: 1 ½” • length 1060 mm (41.7”)
• fuel hose: 5/16” (8 mm) • width 575 mm (22.6”)
• radiator alternator: 3/4” (19 mm) • height 640 mm (25.2”)
• radiator engine: 1¼” (32 mm) • weight 380 kg
• battery +: AWG 2 (25 mm2)
• battery -: AWG 2 (25 mm2)
POWERCABLES ISO 13297 annex A
• 3x10 mm2 (not included)
REMOTE CONTROL:
• 15 meter 8 wire communication cable (included)
