DIAGRAMS & DRAWINGS
EN/ Whisper 6/8/12/16 Ultra for mobile applications / May 2009 / Copyright © 2009 Mastervolt 47
4.15 DIMENSIONS WHISPER 16 ULTRA

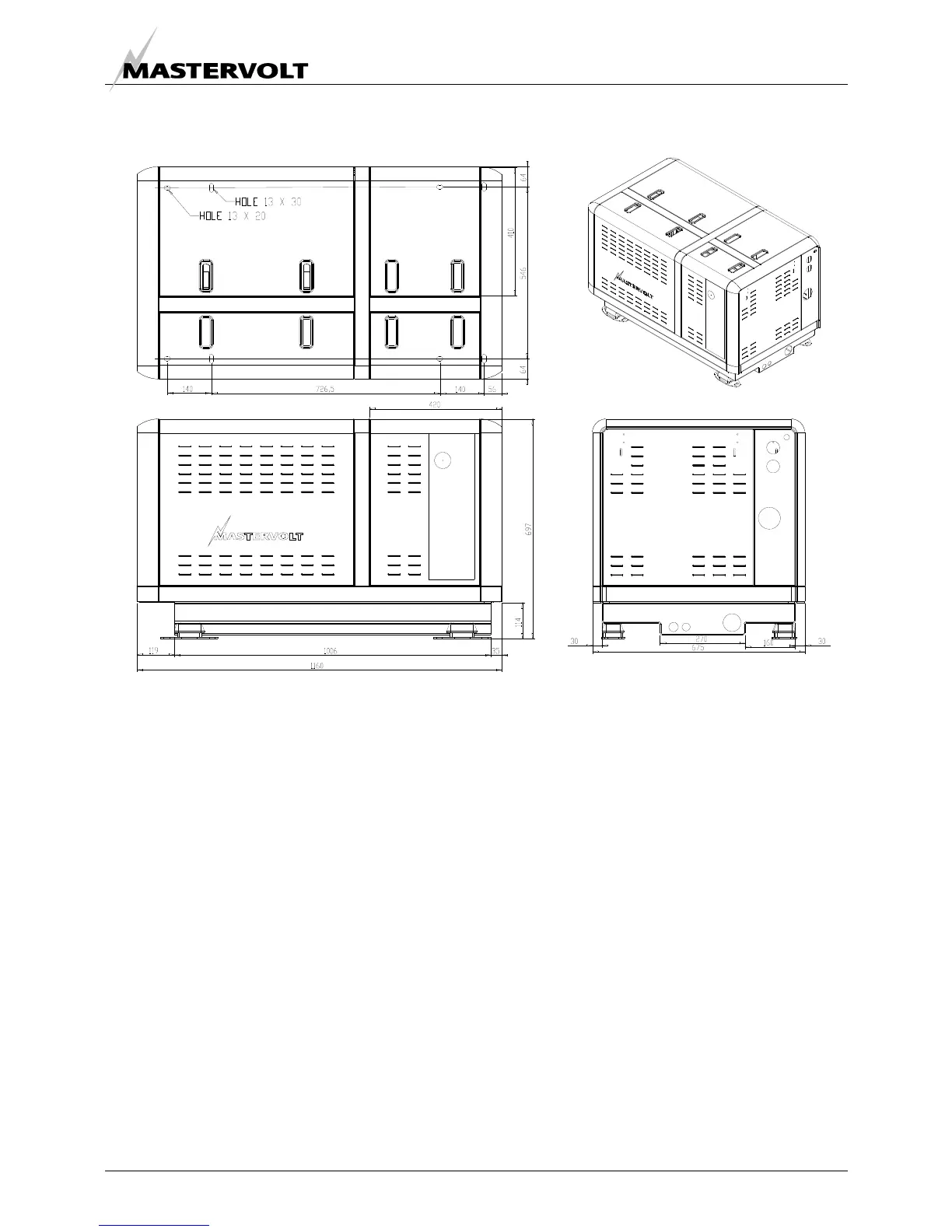

Fig. 52: Outer dimensions (mm) Whisper 16-Ultra
CONNECTIONS WHISPER 16 Ultra: BOX DIMENSIONS WHISPER 16 ULTRA
• exhaust: 1 ½” • length 1160 mm (45.7”)
• fuel hose: 5/16” (8 mm) • width 680 mm (26.8”)
• radiator alternator: 3/4” x 25 mm • height 700 mm (27.6”)
• radiator engine: 1¼” (32 mm) • weight 454 kg
• battery +: 35 mm2
• battery -: 35 mm2
POWERCABLES ISO 13297 annex A
A template to drill the mounting holes of the Whisper 16
Ultra is included in the delivery.
• 3x16 mm2 (not included)
REMOTE CONTROL:
• 15 meter 8 wire communication cable (included)
