INSTALLATION
EN/ Whisper 6/8/12/16 Ultra for mobile applications / May 2009 / Copyright © 2009 Mastervolt 9

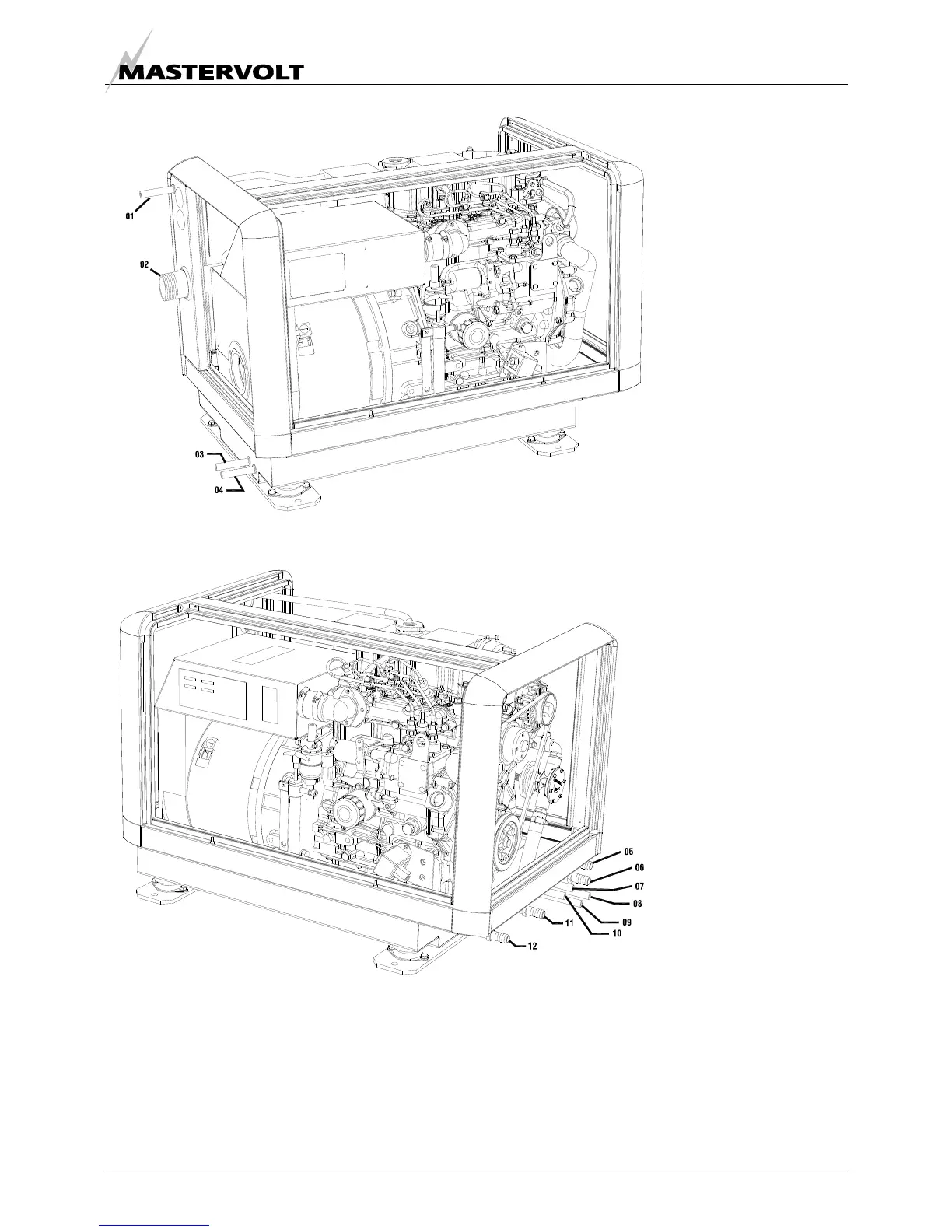

Fig. 8a Connections Whisper 8 Ultra
Fig. 8b Connections Whisper 8 Ultra
01 Expansion tank Ø8mm
02 Exhaust 1½”
03 Remote control
04 AC power output
05 Coolant engine out
06 Coolant generator out
07 Battery negative (–)
25mm2
08 Fuel out Ø8mm
09 Fuel in Ø8mm
10 Battery positive (+)
25mm2
11 Coolant generator in
12 Coolant engine in
