DIAGRAMS & DRAWINGS
EN / WHISPER 6/8/12 - 3000RPM / February 2007 25
3 DIAGRAMS & DRAWINGS

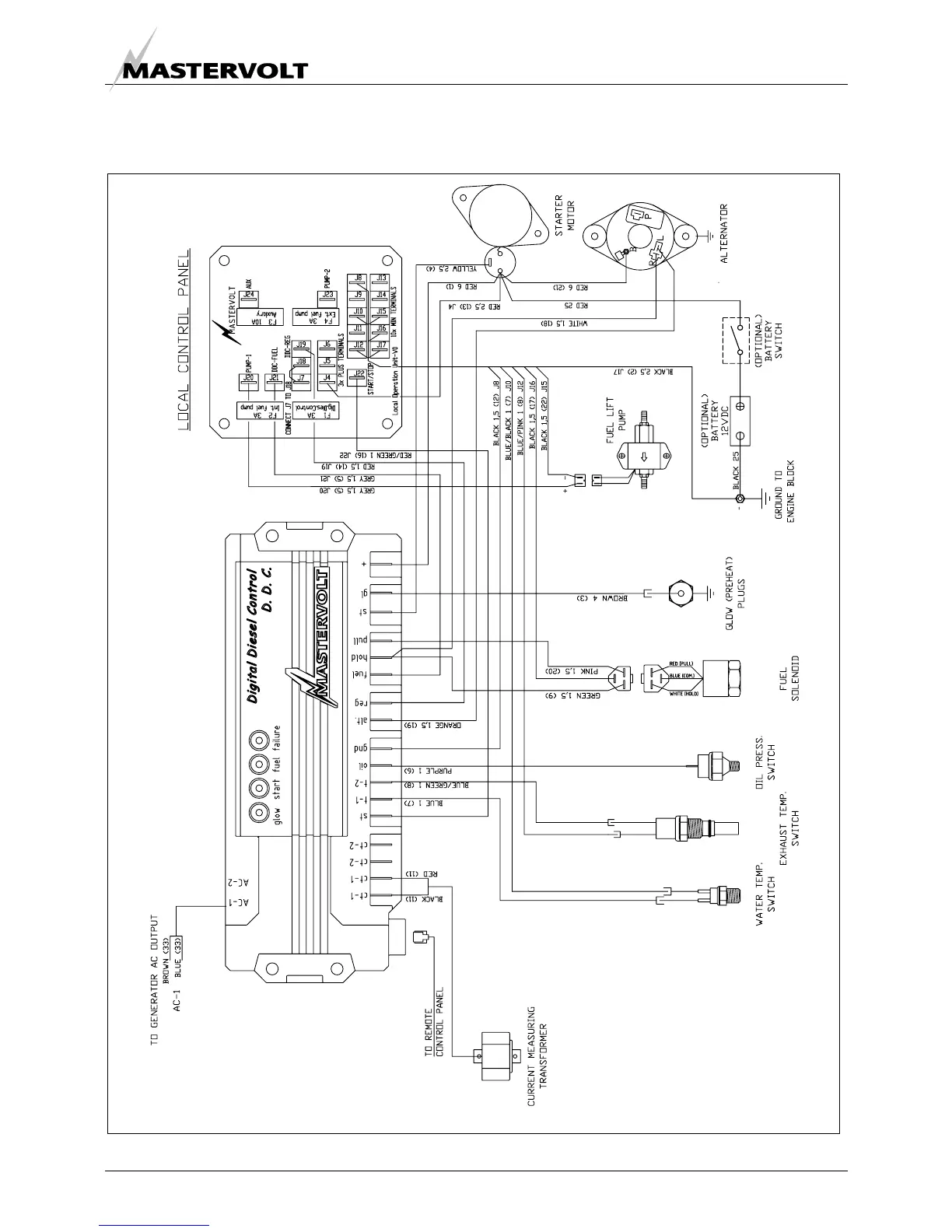

3.1 DC WIRING DIAGRAM
Figure 24: DC wiring diagram.
