Mastervolt Whisper 8

DIAGRAMS & DRAWINGS
30 February 2007 / WHISPER 6/8/12 - 3000RPM / EN
3.6 WHISPER 6/8/12 & 6 DIMENSIONS
CONNECTIONS WHISPER 6/8: POWERCABLES ISO 13297 annex A
• exhaust: 40 mm (1
5
/
8
”) • Whisper 6: 230V 3x4 mm² (5m. included)
• fuel hose: 8 mm (5/16”) • Whisper 8: 230V 3x4 mm² (5m. included)
• sea water in: 19 mm (¾”) • Whisper 12: 230V 3x10 mm2 (not included)
• air vent connection: 19 mm (¾”)
• battery positive +: 25 mm2 REMOTE CONTROL:
• battery negative -: 25 mm2 • 15 meter 8 wire communication cable (included)
• remote control: 10 mtr. (30 ft)
BOX DIMENSIONS WHISPER 6 and 8 – 3000rpm BOX DIMENSIONS WHISPER 12 – 3000rpm
• length 660 mm • length 810 mm
• width 495 mm • width 525 mm
• height 550 mm • height 615 mm
• weight Whisper 6 178 kg • weight Whisper 12 210kg
• weight Whisper 8 182 kg

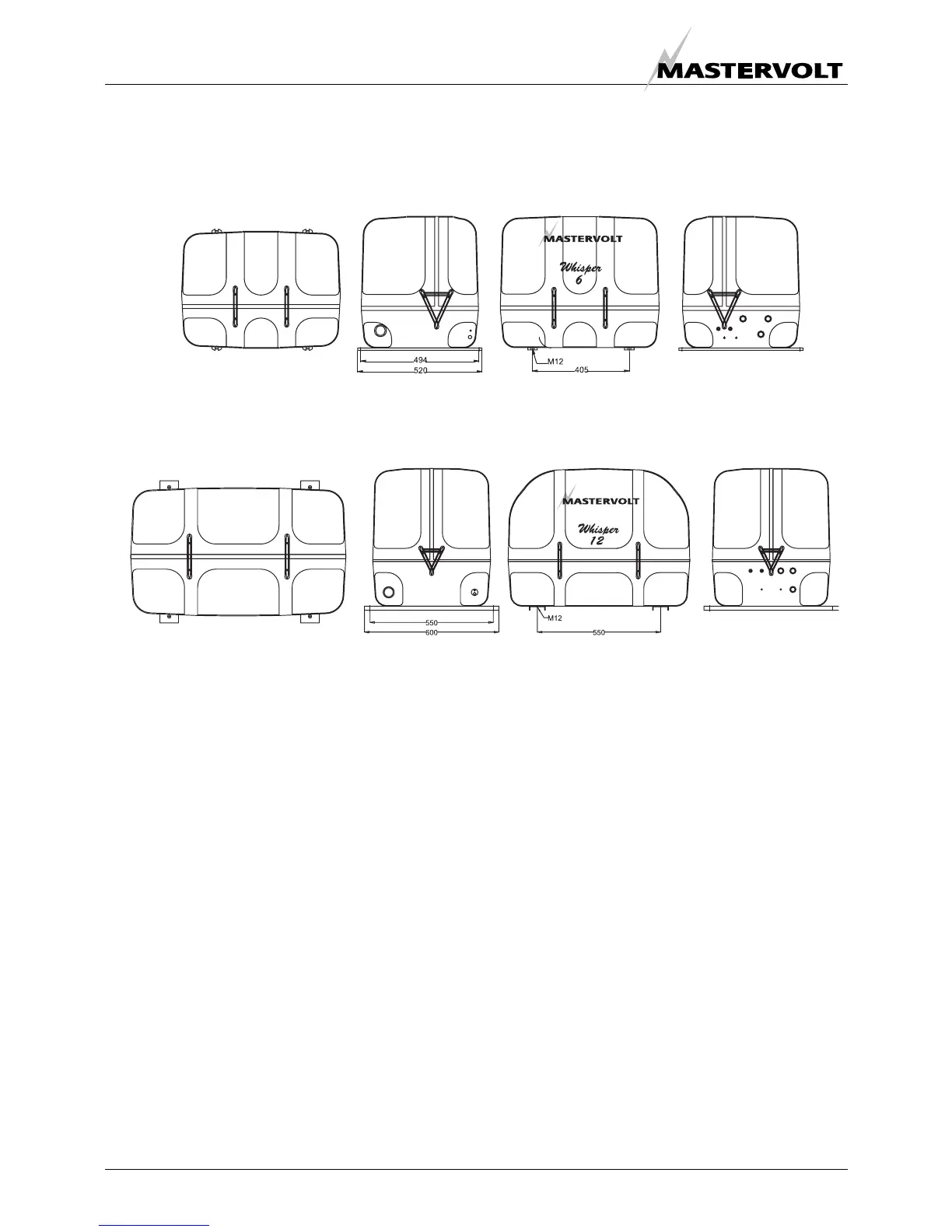

Top view
WHISPER 6/8
Service side
Top view Service side
WHISPER 12
Fig 28
Fig 29
