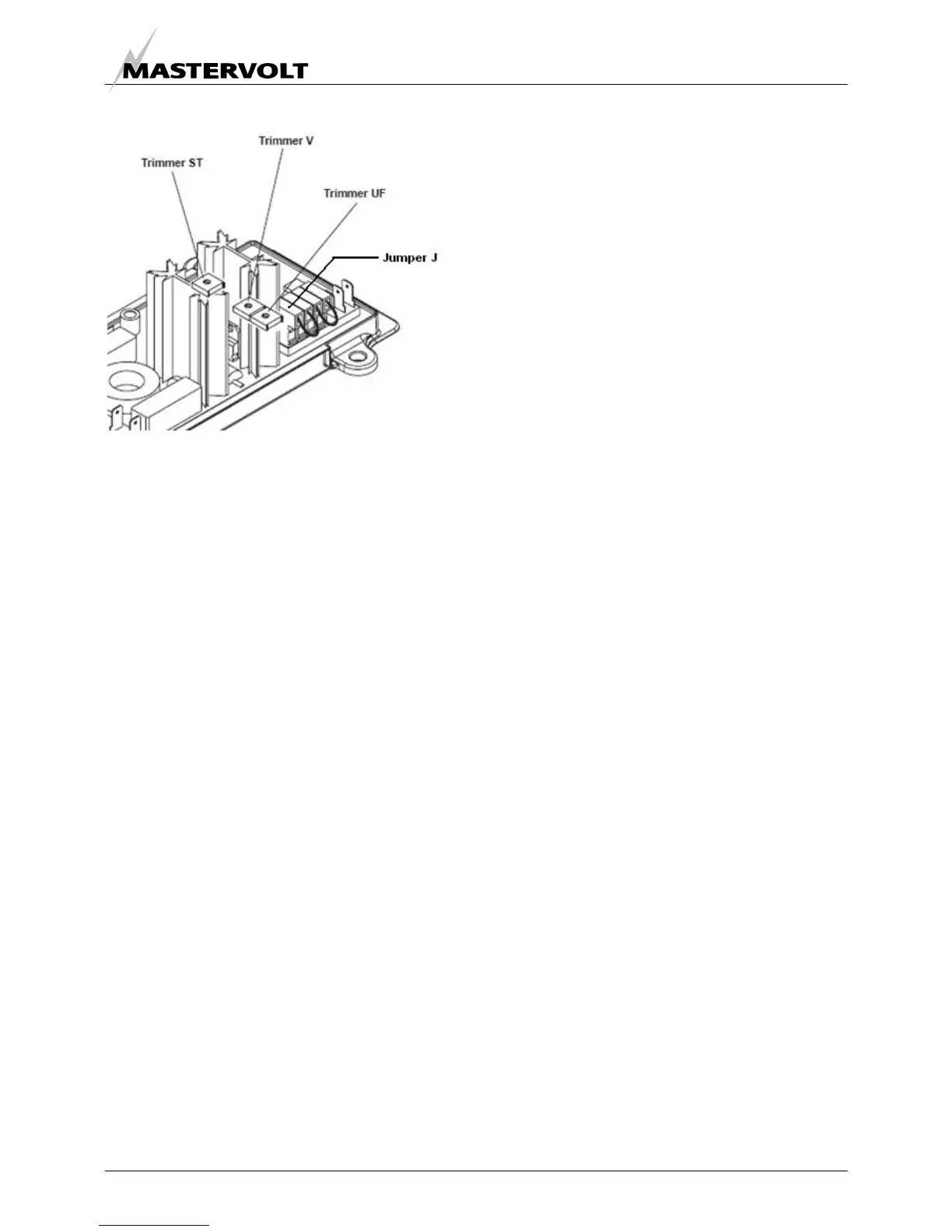

2.5.14 Wiring codes and colours
AWG (American Wire Gauge)
Cable code number colour AWG cross section
battery > starter motor red 2 25 mm2
starter motor > DCC 1 red 10 6 mm2
starter motor > LCP 13 red 14 2,5 mm2
battery > ground black 2 25 mm2
ground > LCP ground (GND) 2 black 12 4 mm2
DDC > glow plugs 3 brown 12 4 mm2
DDC > starter solenoid 4 yellow 14 2,5 mm2
LCP > fuel lift pump + 5 brown 16 1,5 mm2
LCP > fuel lift pump - 15 black 16 1,5 mm2
DDC > LCD 5 grey 16 1,5 mm2
DDC > oil pressure switch 6 purple 17 1 mm2
LCP > oil pressure switch 6 purple/black 17 1 mm2
DDC > water temperature switch 7 blue 17 1 mm2
LCP > water temperature switch 7 blue/black 17 1 mm2
DDC > exhaust temperature switch 8 blue/green 17 1 mm2
DCC > fuel solenoid (hold) 9 green 16 1,5 mm2
DCC > fuel solenoid (pull) 20 pink 16 1,5 mm2
DCC > fuel solenoid (com.) 17 black 16 1,5 mm2
B+ terminal alternator > starter motor 21 red 10 6 mm2
DCC >R terminal alternator 18 wit 16 1,5 mm2
DCC > L terminal alternator 19 orange 16 1,5 mm2
DCC > current measuring transformer 11 black 17 1 mm2
DCC >current measuring transformer 11 red 17 1 mm2
DCC > current measuring transformer 22 black 17 1 mm2
DCC >current measuring transformer 22 red 17 1 mm2
DCC > LCP 12 black 16 1,5 mm2
DCC > LCP 14 red 16 1,5 mm2
DCC > LCP 16 red/green 16 1,5 mm2
DCC > generator AC output 33 brown 17 1 mm2
DCC > generator AC output 33 blue 17 1 mm2
DCC > generator AC output 44 brown 17 1 mm2
DCC > generator AC output 44 blue 17 1 mm2
DDC=Digital Diesel Control Unit
LCP=Local Control Panel
