Mastervolt WHISPER 9,5 ULTRA

USA / WHISPER 15 ULTRA / May 2004 31
SPARES
Spare parts water pump type M. 12, article no 50201450:
no description article no
1 screw cover, 6x 50209018
2 cover type M12, 1x 50201401
3 screw impeller, 1x refer to impeller
4 Impeller (1x), including screw (3) 50209013
5 Gasket, 1x 50209012
6 Pump housing, 1x 50201413
8 Seal, 2x 50209015
9 O-ring, 1x 50209017
10 Bearing, 2x 50209014
11 Clip, 2x 50209019
12 Clip, 1x 50209016
13 Shaft type M 1x 50201811
14 O-ring, 1x 50201814
15 Clamp, 4x 50201815
Impeller kit: impeller + gasket + screw 50209011
1
2
3
4
5
6
7
7
8
9
10
10
11
13
11
12
8
M12
14
15

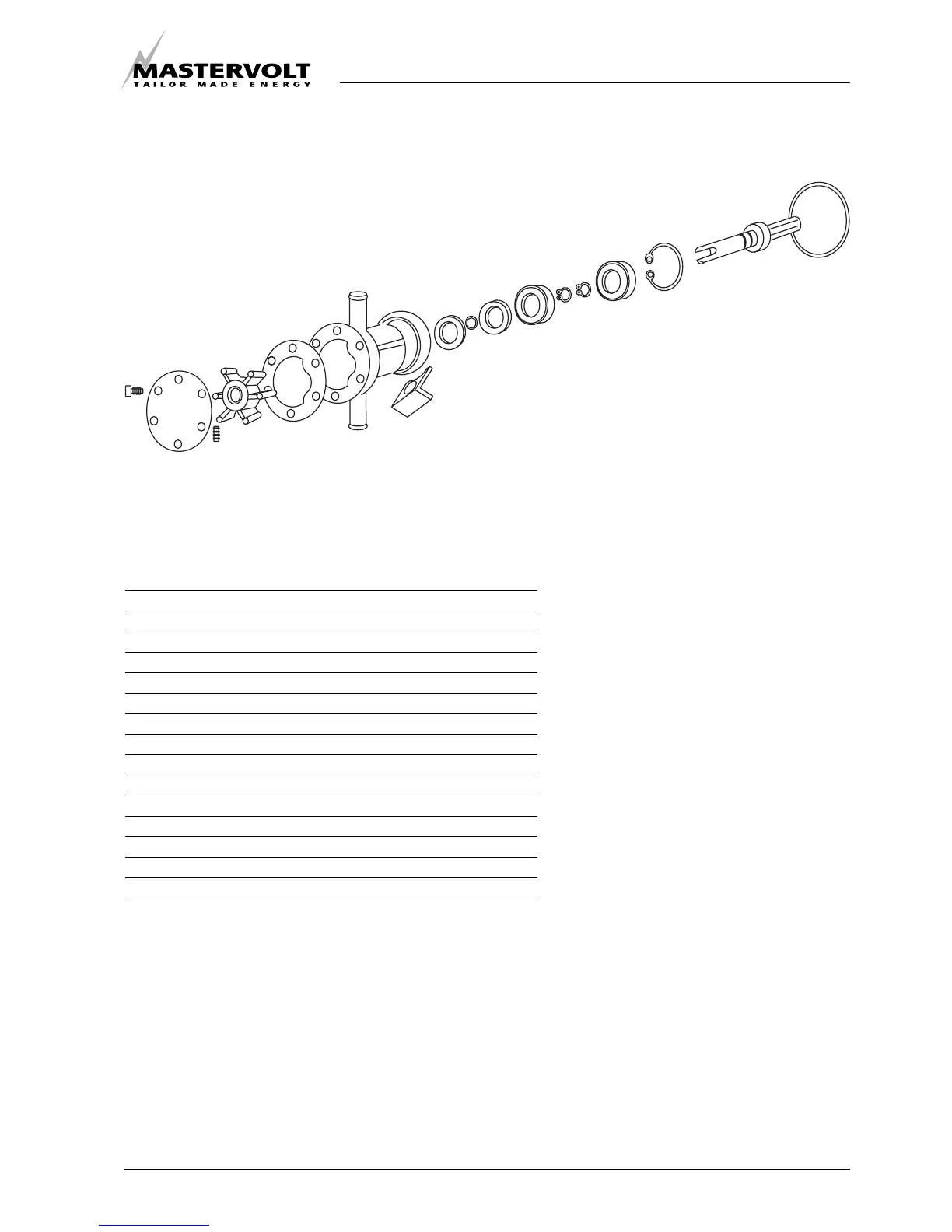

Fig. 21: Water pump type M. 12
