Matelec FSA-60000 User Manual

MATELEC AUSTRALIA. P 1800 281 282. F 1300 281 282
INFO@MATELECAUSTRALIA.COM.AU. WWW.MATELECAUSTRALIA.COM.AU
1. Isolate Mains/AC power.
2. Select optimum location for your smoke alarm/s as per earlier details.
3. Press the base on the installation position, mark installation holes of the bracket.
4. Bore two 5mm holes on the markings and install mounting plugs. (See Diagram A)
5. Follow wiring details as per Diagram D.
6. Attach the base to the mounting plugs and x screws into the plugs.(See Diagram B)
7. Close the alarm body. (See Diagram C)

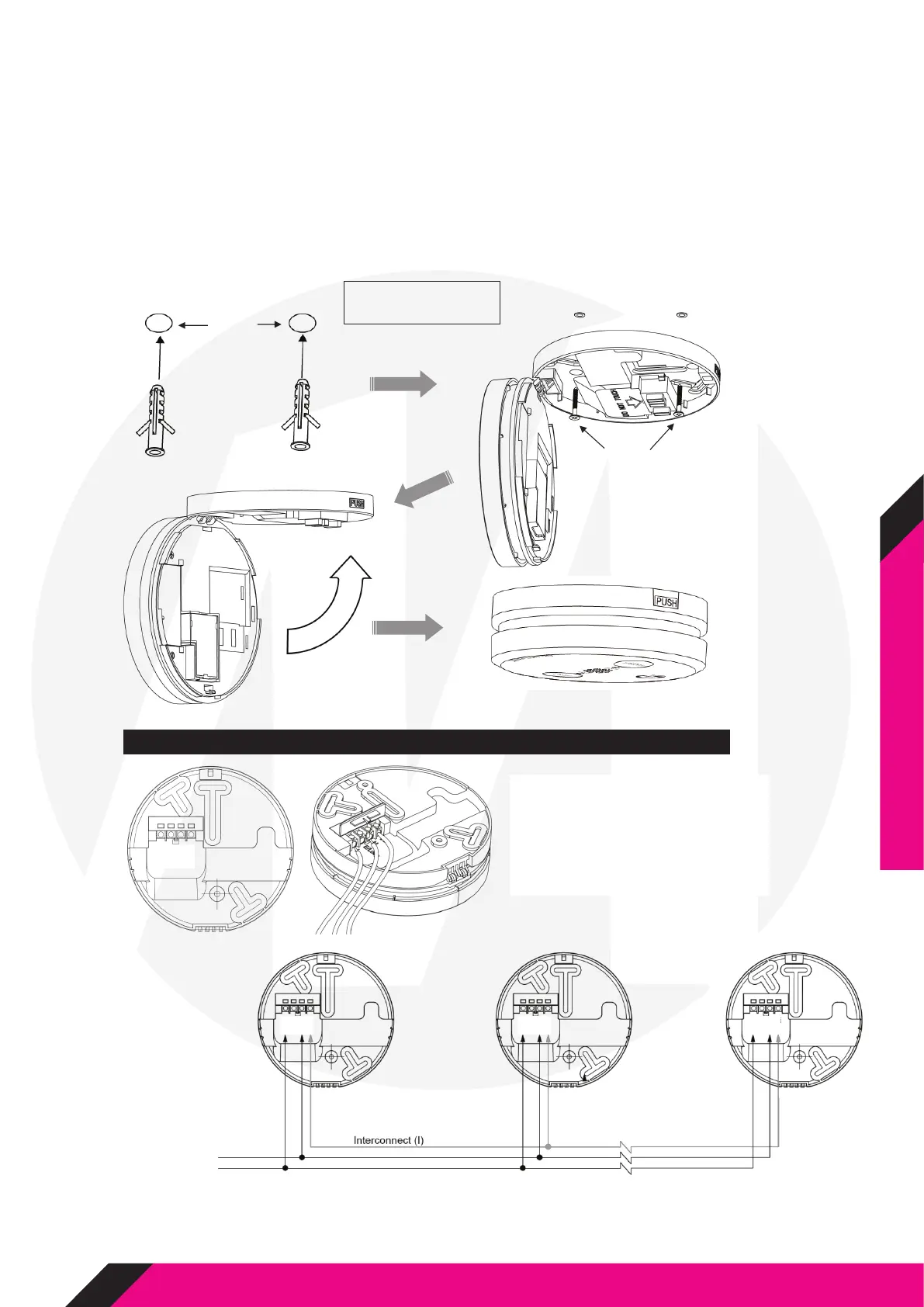

MOUNTING INSTRUCTIONS
Plastic plugs
Holes
Screws
Diagram A
Diagram B
Diagram D Diagram C
Installation sketch
Wiring Instructions:
TERMINAL:
L : Active wire
N : Neutral wire
I/O : Interconnect wire
(when applicable)
E/LOOP : No wire
A
E-Loop
N
I-Connect
A
E-Loop
N
I-Connect
A
E-Loop
N
I-Connect
A
E-Loop
N
I-Connect
220-240V a.c.
Active (A)
Neutral (N)
TERMINAL
I-Connect : Interconnection
N : Neutral
E-Loop : No wiring
A : Active
