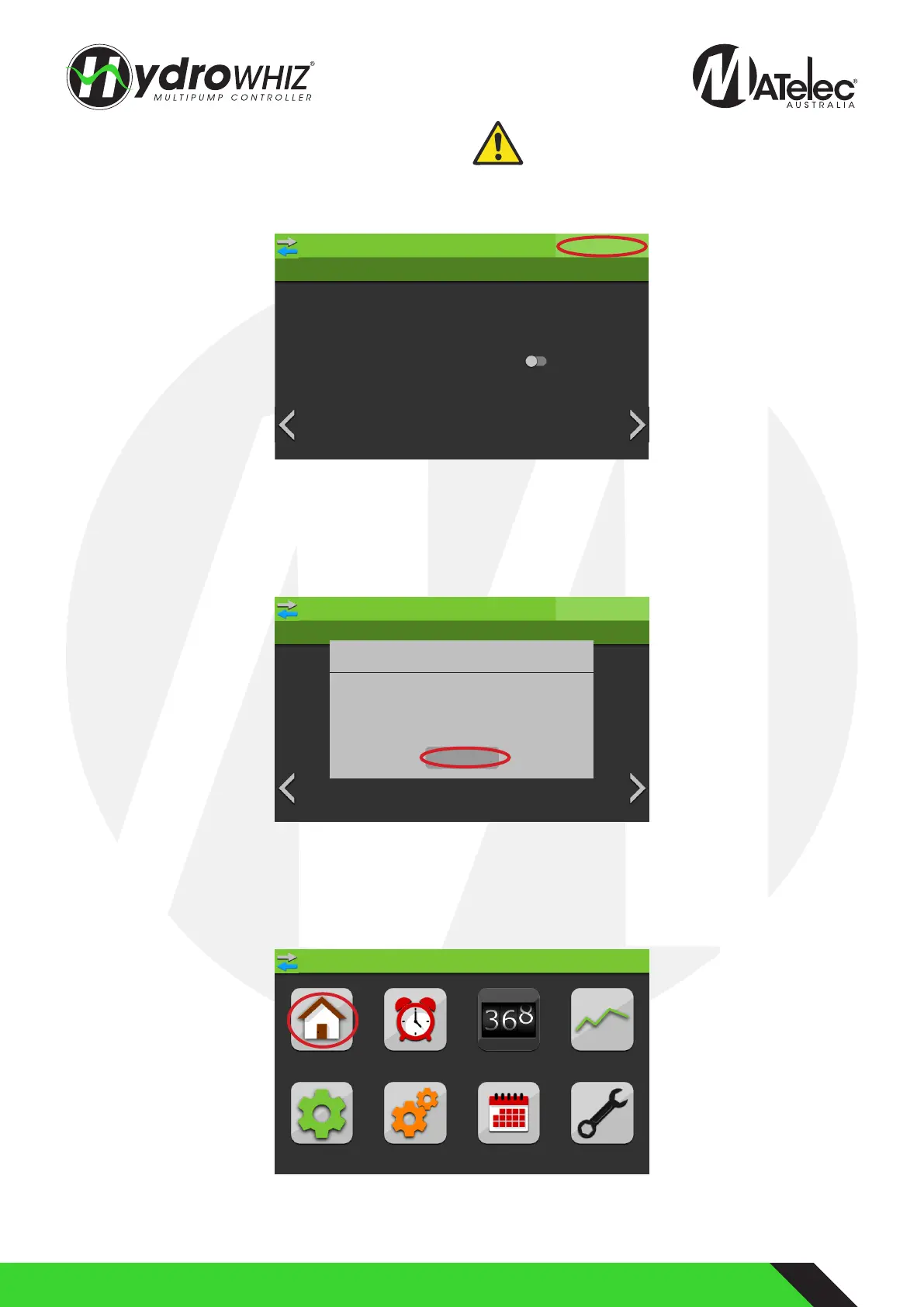

5.15 - Return to Menu
Once all the Setup screens have been completed, tap to return to the Menu screen.
RUNNING MENU
SCADA baud rate
SCADA parity
SCADA slave address
SCADA watchdog enable
SCADA watchdog timeout
Setup: 6 SCADA Setup
19,200
8 None 1
1
30 Secs
5.17 - Menu
Once back on the Menu screen tap on the Main screen icon, where the System Mode will need to be changed after completing
Step 6 VSD commissioning.
Main Screen Alarms Logged Data Trend Plot
Setup All Parameters Date & Time Diagnostics
RUNNING 10/06/2020 17:50:58
5.16 - Warning
After pressing on Menu, a warning screen will appear stating that the system must be placed back in auto mode. Press OK to
continue to Menu.
RUNNING MENU
SCADA baud rate
SCADA parity
SCADA slave address
Setup: 6 SCADA Setup
19,200
8 None 1
1
Level
DOL
4
6
60 Mins
Alert
The system has been switched to OFF for
setup. Go to main screen to change.
OK
Step 5 - Setup (Continued)
