Matelec Hydrowhiz FPC-63X21 User Manual

4
P: 1800 281 282 | F: 1300 281 282 | E: info@matelecaustralia.com.au | W: www.matelecaustralia.com.au
5.7 - 1 System Setup
RUNNING MENU
System type
Control output type
Number of pumps
Pump limit
Duty change period
Setup: 1 System Setup
Level
VSD
4
6
60 Mins
The main setup for the system and pump control method.
System type Sets default system settings for the pressure, level or temperature system types.
Control output type Sets default system settings for the DOL, Soft Start or VSD controlled pumps. This setting is factory set and
does not require adjustment.
Number of pumps Total number of pumps connected which configures the display and pump selection. This setting is
factory set and does not require adjustment.
Pump limit Maximum number pumps to be running at the same time. Used to limit max flow or max power
requirements.
Duty change period Duty pump running time before initiating a duty change to the next pump.
Step 5 - Setup (Continued)
RUNNING MENU
System type
Control output type
Number of pumps
Pump limit
Duty change period
Setup: 1 System Setup
Level
VSD
4
6
60 Mins
RUNNING
Current:
MENU
321
654
987
0
CANCEL
OK
60 Mins
Duty change period
. -
RUNNING MENU
System type
Pressure
Level
Temperature
CANCEL

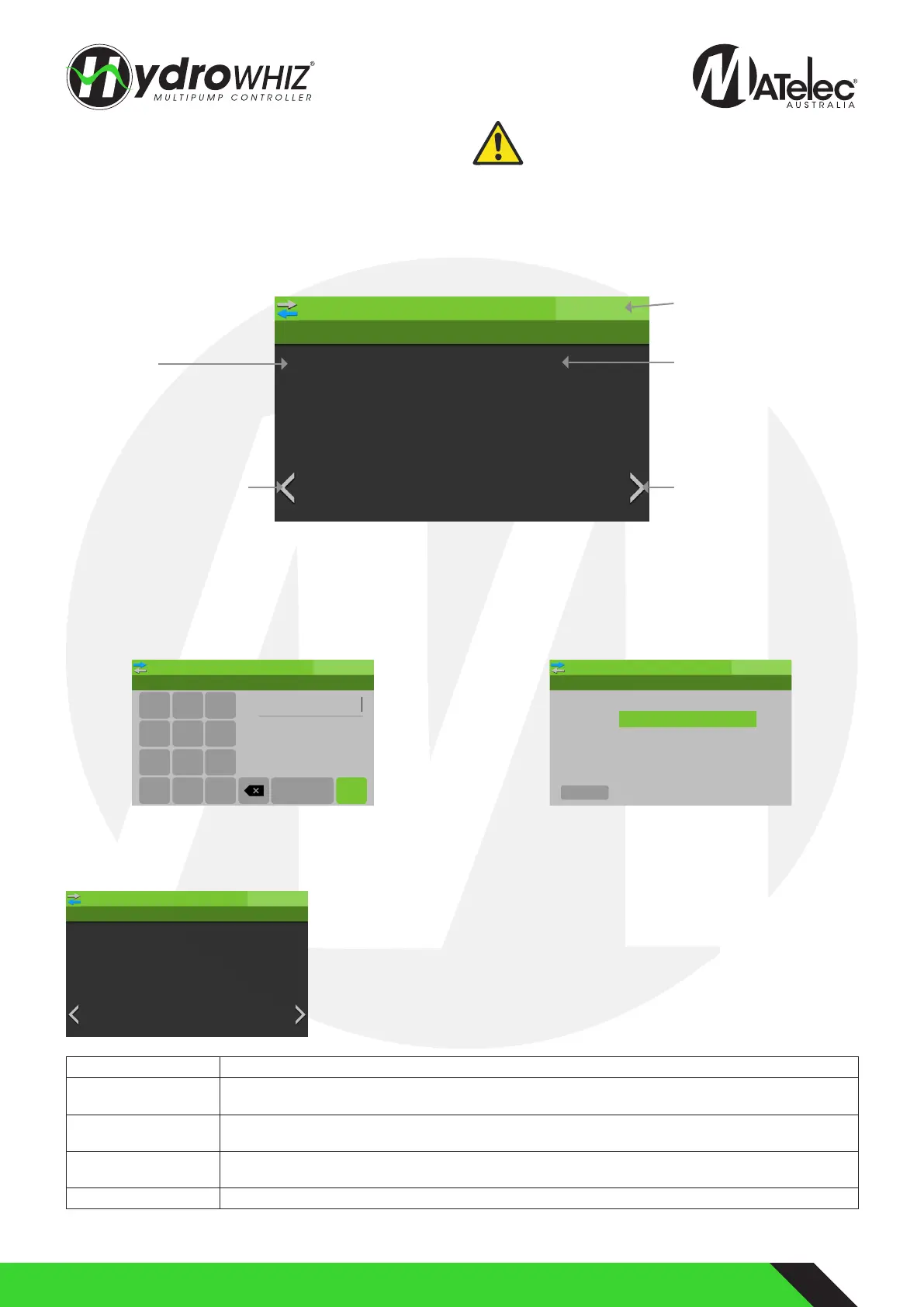

The Setup Screen is where the controller is configured for operation.
The pages following the System Setup page will change depending on whether the ‘Level’, ‘Pressure’ or ‘Temperature’ system type is
selected, allowing users to adjust settings that are specific to that application.
All user adjusted settings can be recorded on the last page of this guide.
Setup Screen Operation
Setting Adjustment - Value Setting Adjustment - Selection
If a value setting, such as Duty change period, is pressed on,
the keyboard screen will appear and the desired value can be
entered or the process cancelled.
If a selection setting, such as System type, is pressed on, a
drop down list of all the available options for the setting will
appear and the desired option can be selected or the process
cancelled.
Touch to return to Menu
Setting value, touch to adjust
(see below)
Touch to scroll forward
through setup pages
Setting name
Touch to scroll backwards
through setup pages
