Hydrogen Generator NM Series 2 User’s Manual
5
Description
The hydrogen generator produces pure hydrogen (and oxygen as a by-product) by the elec-
trolysis of water. The key element of the generator is an electrochemical cell assembly which
contains a solid polymer electrolyte. No free acids or alkalines are used. De-ionized or pure,
distilled water is the only liquid which may come into contact with the cell. As water is con-
sumed it must be refilled from time to time as required.
The generated hydrogen gas is accumulated in the hydrogen/water separator and is dried by
passing through the automatic dryer. The internal pressure (11.0 Bar / 160PSI) is controlled
by the amount of hydrogen generated by the cell. The outlet pressure is controlled by a pro-
portional valve.
Safe operation is guaranteed by the following safety features:
- Overpressure Valve
- Intelligent pressure monitoring
- The hydrogen production is automatically stopped, when no hydrogen is needed,
or there is a large leak in the output line.

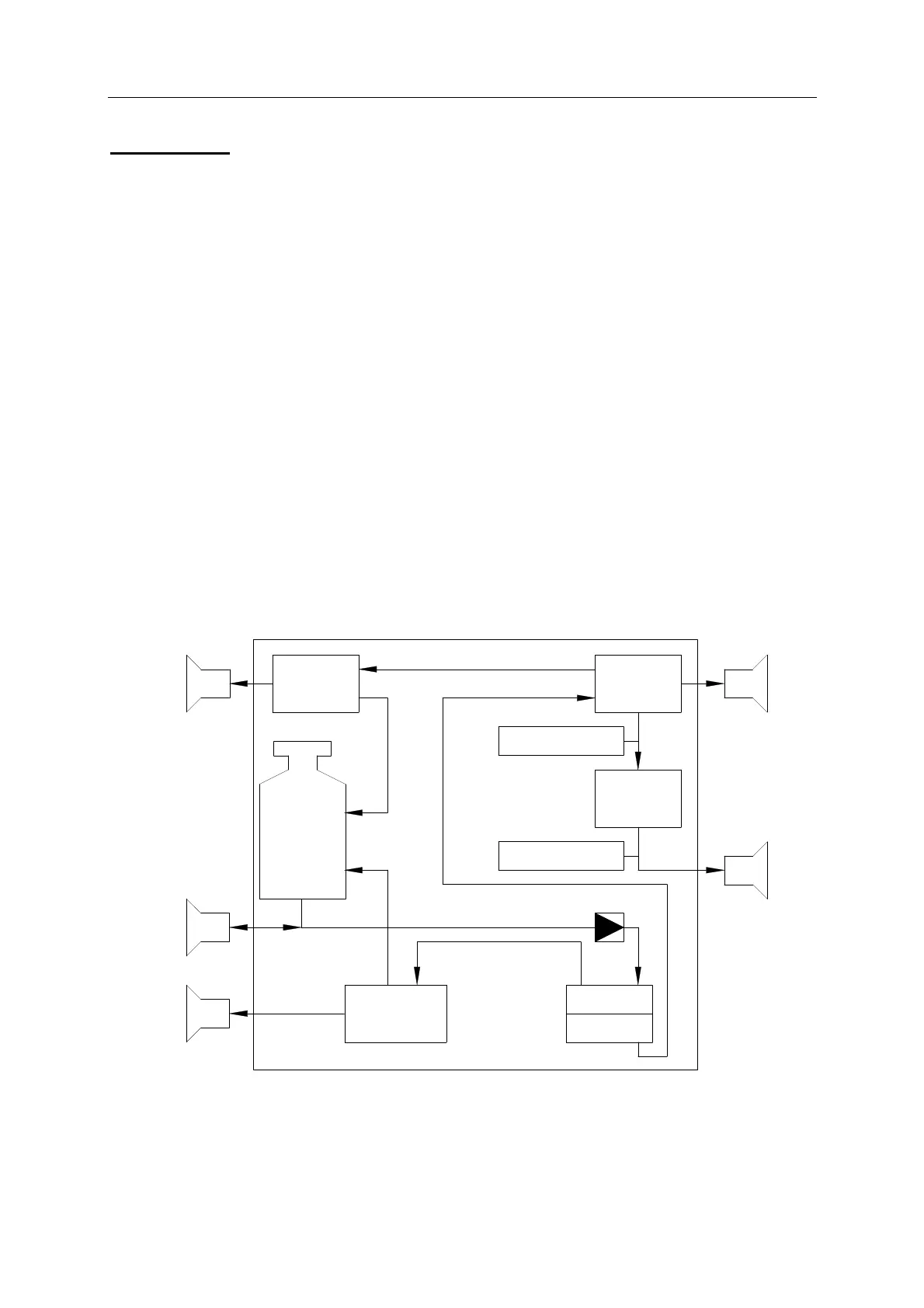

Fig. 1
Water
Tank
H2 GLS
low
press.
H2 GLS
high
press.
O2 GLS
low
press.
Dryer
Cell
Int. Press. Sens.
Ext. Press. Sens.
H2
Pressure
relief
H2 Outlet
H2 Vent
O2 Vent
Drain port / Autorefill
connector
To Next Page
