Matrix 7” User Manual

CHAPTER 5 : BRACKET ASSEMBLY AND INSTALLATION FOR
CYCLES, ELLIPTICALS, ASCENT TRAINER AND STEPPER

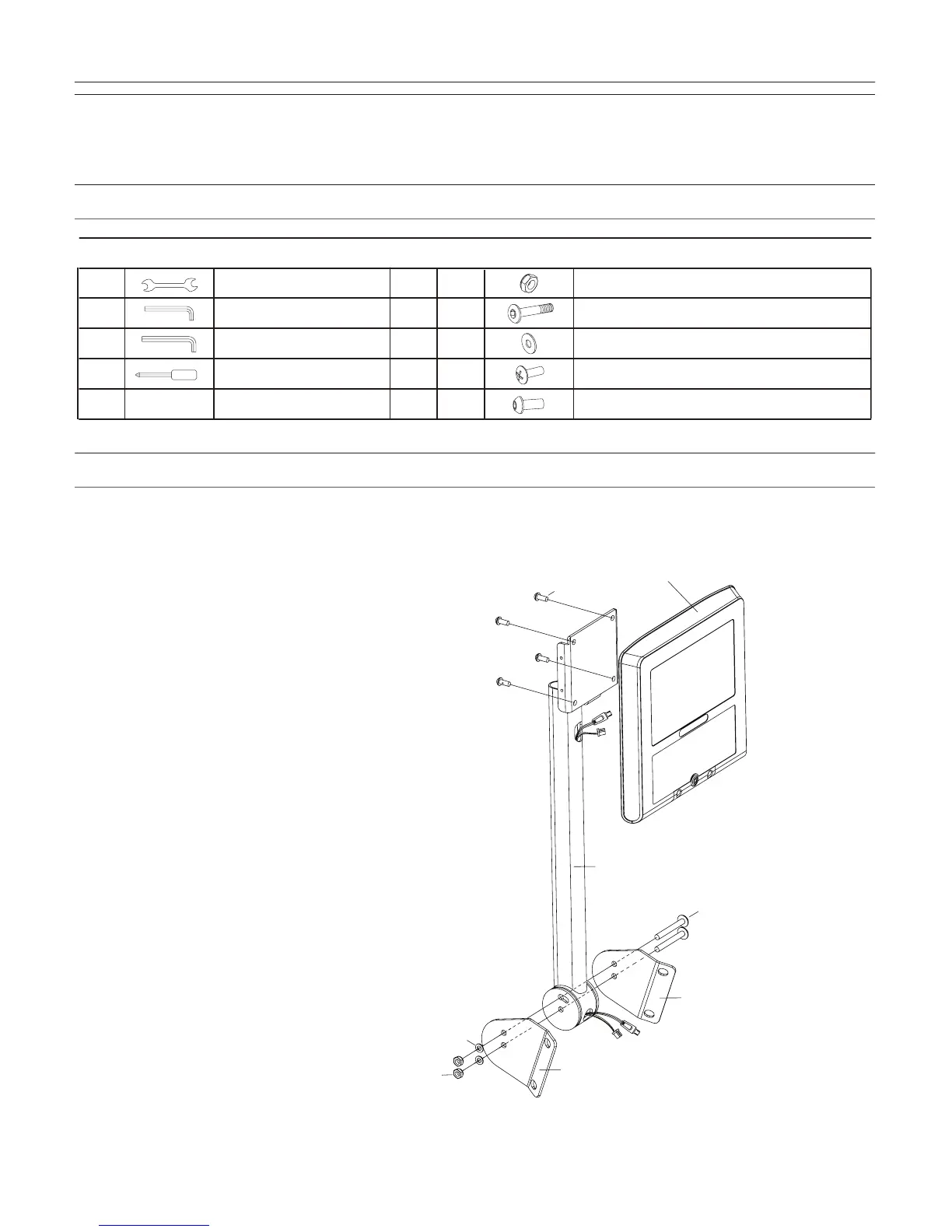

5.1 REQUIRED FASTENERS & ASSEMBLY TOOLS
5.2 BRACKET ASSEMBLY
STEP 1
Assemble plate 1 and plate 2
to the main bracket using the
button head socket screw (L10),
flat washer (L09), and nut (L08)
as shown.
STEP 2
Install the power wire and
coaxial cable at the top of the
bracket to the TV.
STEP 3
Fasten the TV to the main
bracket using the button head
hex socket screw (Z05) as
shown
9 MATRIX FITNESS SYSTEMS ENTERTAINMENT
01 4mm ALLEN WRENCH
01 #2 PHILLIPS SCREW DRIVER
QTY SKETCH DESCRIPTION
QTY PART # SKETCH DESCRIPTION
01 3mm ALLEN WRENCH
01 FLAT WRENCH (#10 & #13)
02 L08 NUT (M6x1.0)
02 L10 BUTTON HEAD SOCKET SCREW (M6x1.0x50L)
02 L09 FLAT WASHER (6.2x12.0x1.0)
04 Z04 PHILLIPS HEAD MACHINE SCREW (M4x0.7x12L)
04 Z05 BUTTON HEAD HEX SOCKET SCREW (M5x0.8x10L)
Z05 x4
L10 x2
L08 x2
L09 x2
7” TV
TOP
BOTTOM
PLATE 2
PLATE 1
MAIN BRACKET
