Matrix A3X-02 User Manual

51
9.19 VERTICAL STABILIZER ARM REPLACEMENT
CHAPTER 9: PART REPLACEMENT GUIDE
1) Remove the bolt that holds the vertical stabilizer arm to the frame (Figures A & B).
2) Remove the bolt from the upper pivot joint of the vertical stabilizer arm (Figure C).
3) Remove the vertical stabilizer arm (Figure D).
4) Reverse Steps 1-3 to install a vertical stabilizer arm. NOTE: Tighten the bolt removed in Step 2 to 80 N-m torque.
5) Test the Ascent Trainer for function as outlined in Section 9.22.

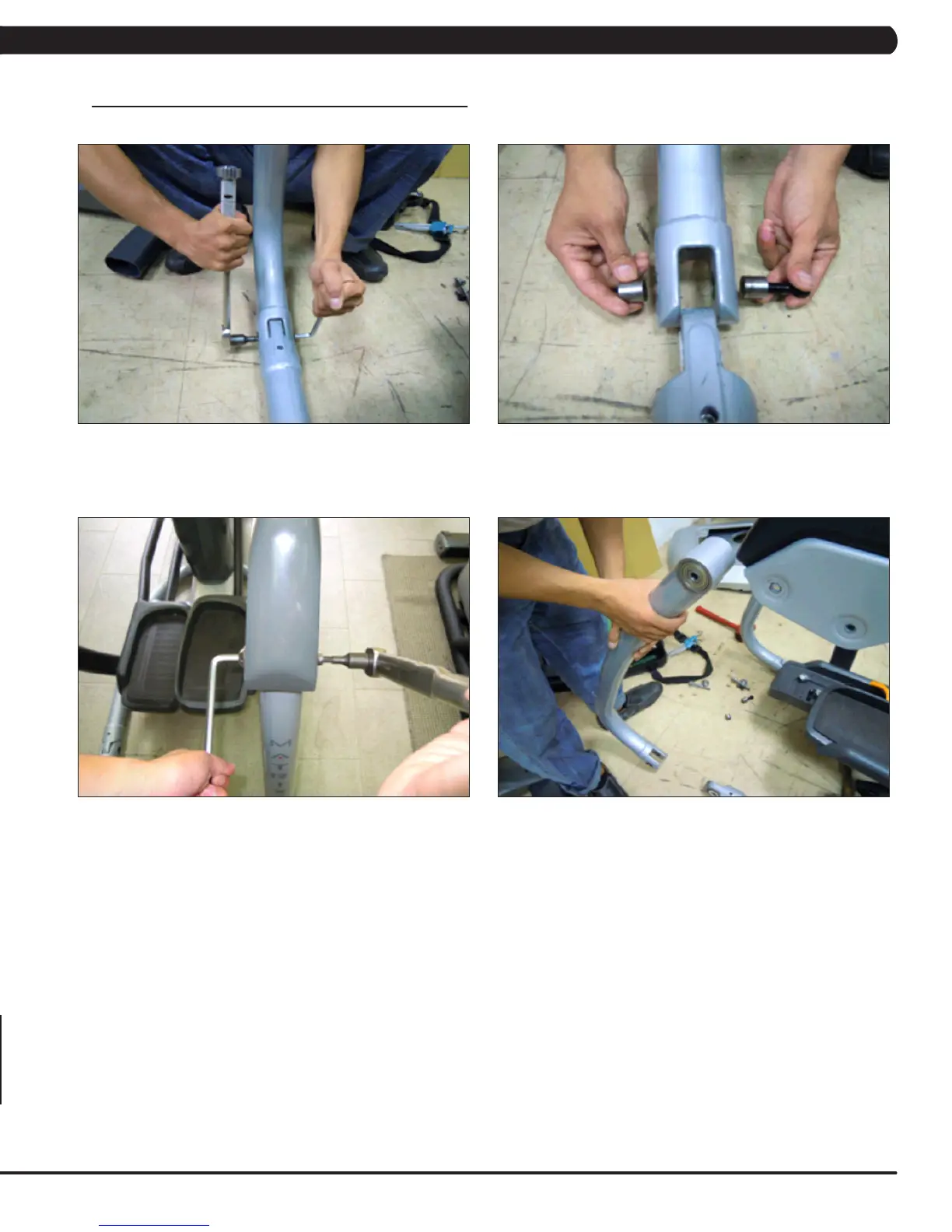

FIGURE A FIGURE B
FIGURE DFIGURE C
