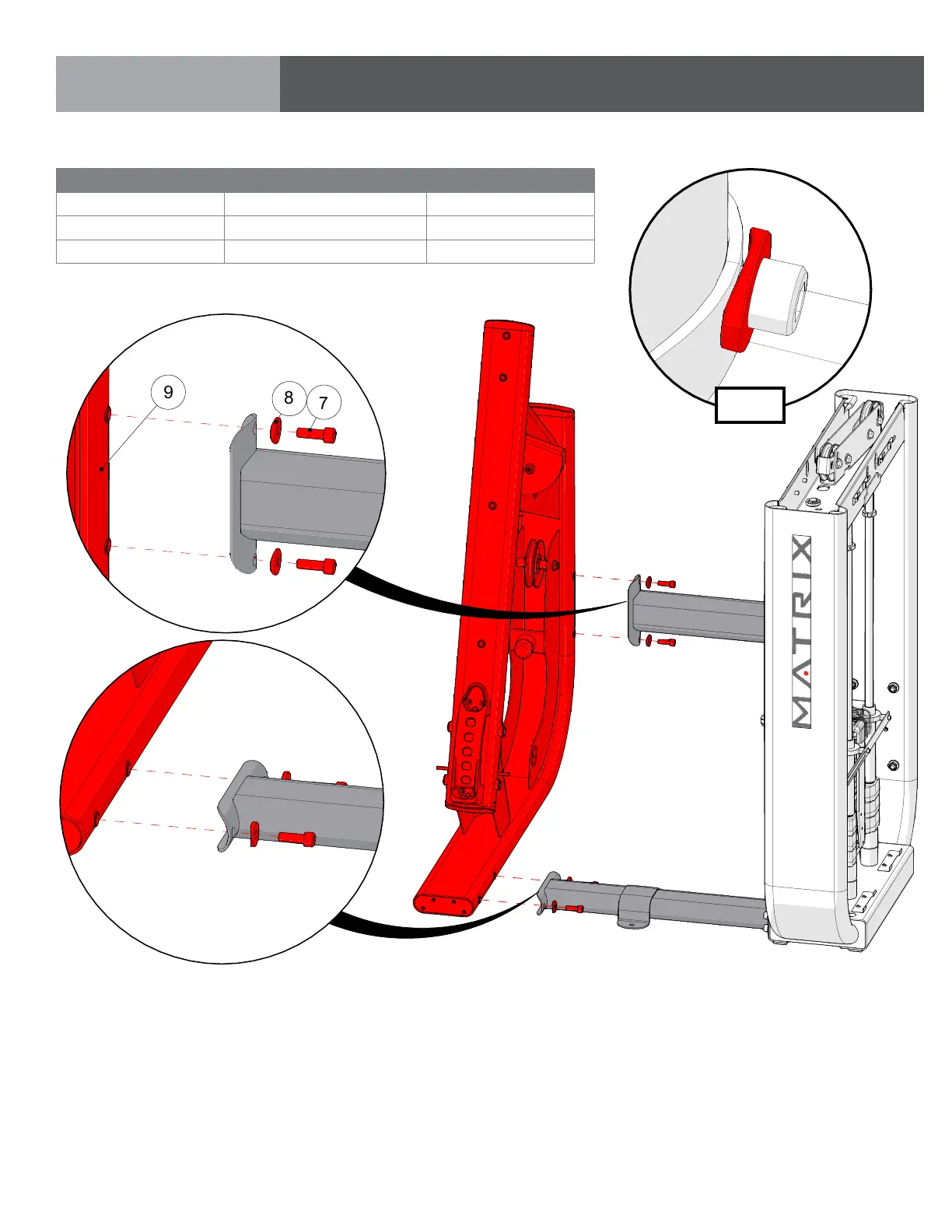

Install the user frame hardware as shown, but DO NOT FULLY TIGHTEN .
PART 1: USER FRAME ASSEMBLY
STEP 2 | USER FRAME INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
7 M10 X 30L SHC 4
8 M10 Saddle Washer 4
9 User Frame 1
ASSEMBLY
• Install the user frame hardware as shown, being sure to orient the saddle washer as shown
in View A.
• Ensurethattheframeislevelandthatalloorpadscontacttheoorequally,
• TorqueallM10FrameHardwareonpages10&11to:77N-m/57ft-lbs.
9
8
7
View A
