PART 1: USER FRAME ASSEMBLY
STEP 1 | USER FRAME INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
1 M10 Nylock Nut 4
2 Weight Stack 1
3 M10 Flat Washer 12
4 M10 X 75L SHC 4
5 Upper Connecting Tube 1
6 Lower Connecting Tube 1
7 M10 X 30L SHC 4

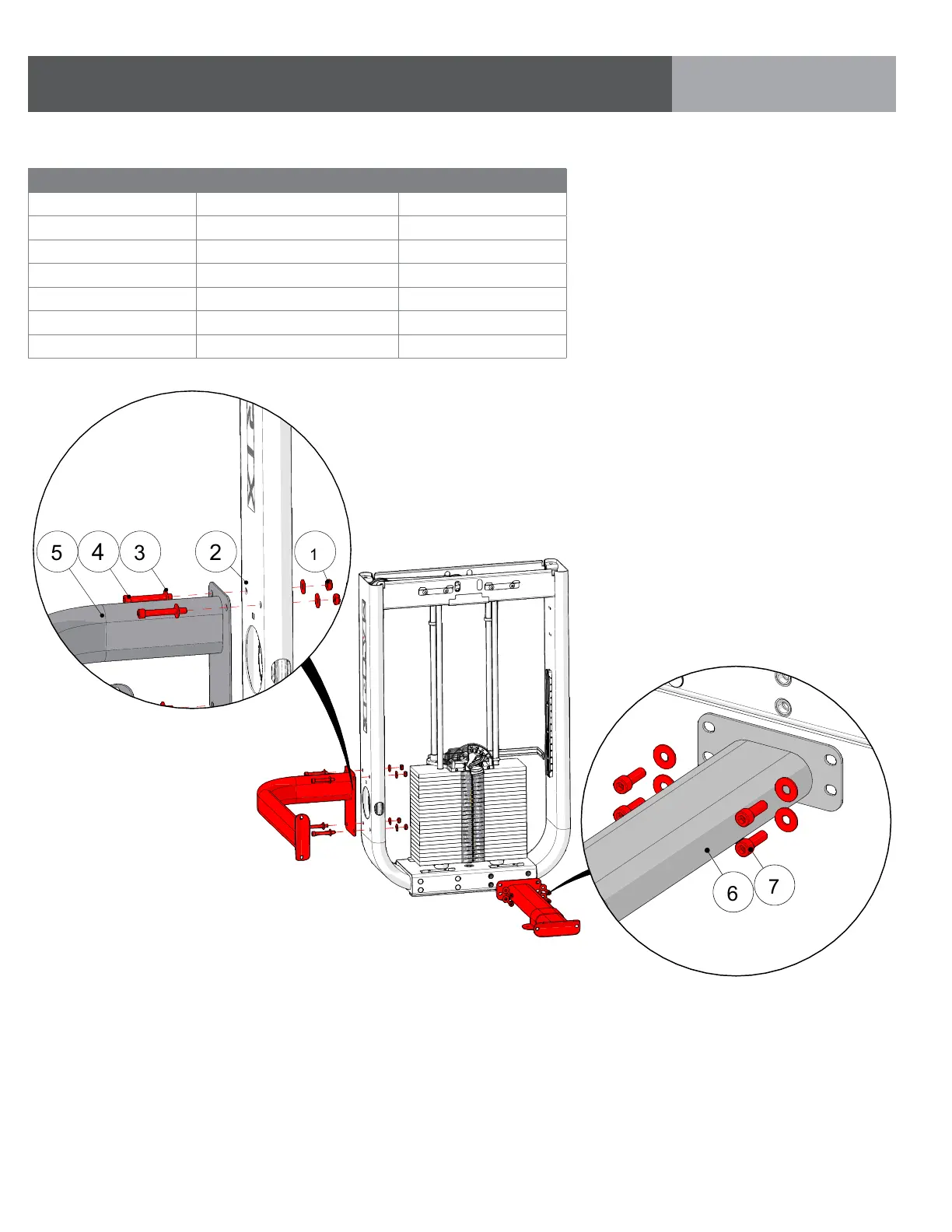

Install the user frame hardware as shown, but DO NOT FULLY TIGHTEN .
ASSEMBLY
7
6
1
2
3
4
5
