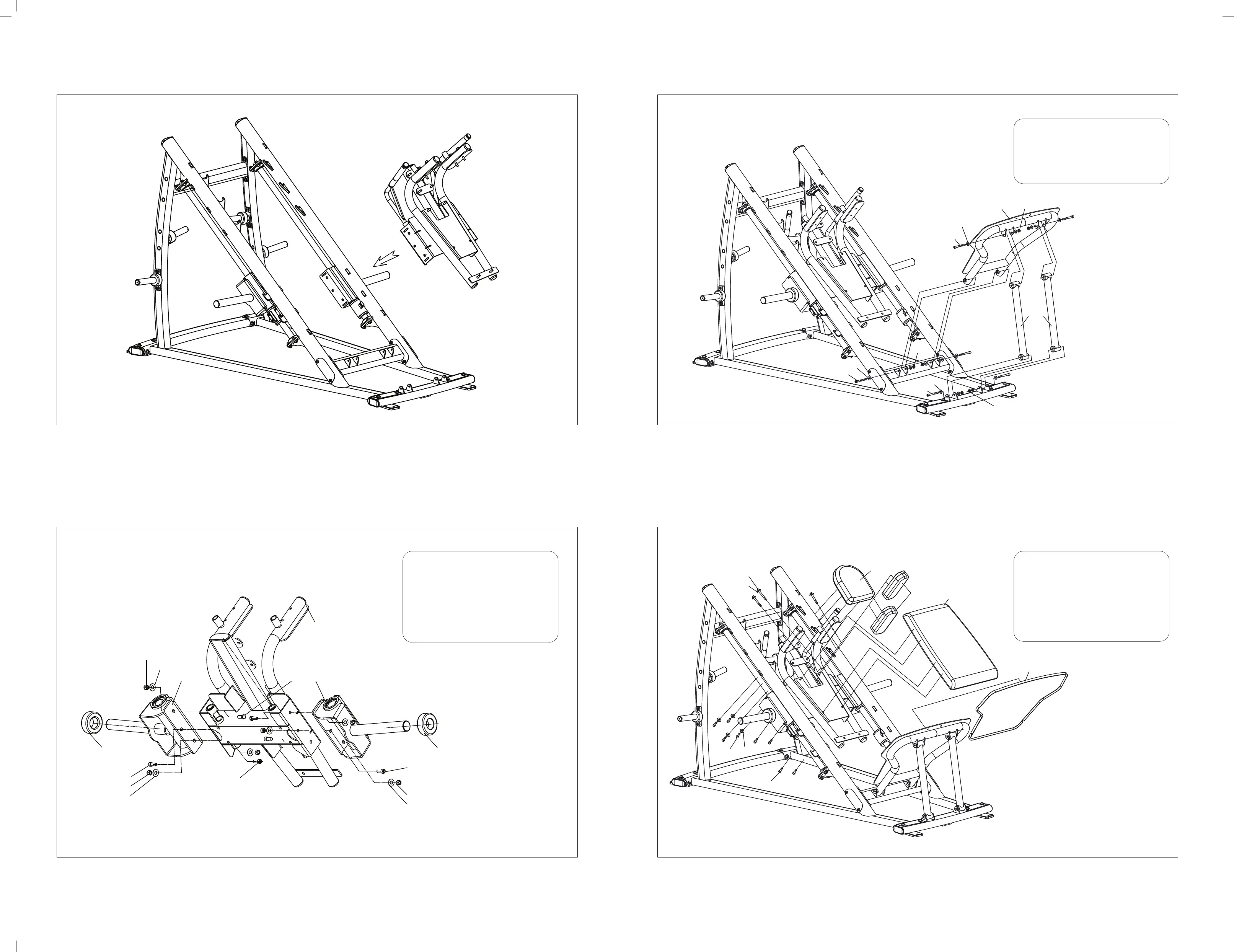

Matrix MAGNUM MEGA POWER RACK Assembly Instructions

Step 3
Step 4
Frame Detail
Item
Z14
Z15
Z16
Z21
P19
Description
Flat Washer (Ø12)
Nylon Nut (M12)
Screw (M12x35L)
Hex Screw (M12x40L)
Rubber Cushion
Qty
6
6
4
2
2
Z15
Z14
AM1
P19
Z16
Z15
Z14
Z16x2
Z16
Z15
Z14
P19
AJ1
Z21x2 AM1
Step 5
Frame Detail
Item
Z05
Z06
Z08
Description
Screw (M10x100L)
Flat Washer (Ø10)
Nylon Nut (M10)
Qty
6
12
6
AP1 Z08x2
Z06x4
Z05x2
AG3x2
Z08x2
Z06x2
Z05x2
Z08x2
Z06x2
Z05x2
Step 6
Frame Detail
Item
Z06
Z07
Z09
Z18
P08
Description
Flat Washer (Ø10)
Curve Washer (Ø10)
Screw (M10x30L)
Screw (M10x85L)
Rubber Pad
Qty
4
4
8
4
1
Z18x4
Z07x4
J44
J20x2
J16
P08
Z09x4
Z09x4
Z06x4
MX15_MAGNUM_OM_MG-PL71 hack squat_r1_5.indd 3 4/20/15 10:20 AM
