MG-A47-05 FRAME ASSEMBLY
NOTE: If your rack is not equipped with spotter stands, proceed to step 2.

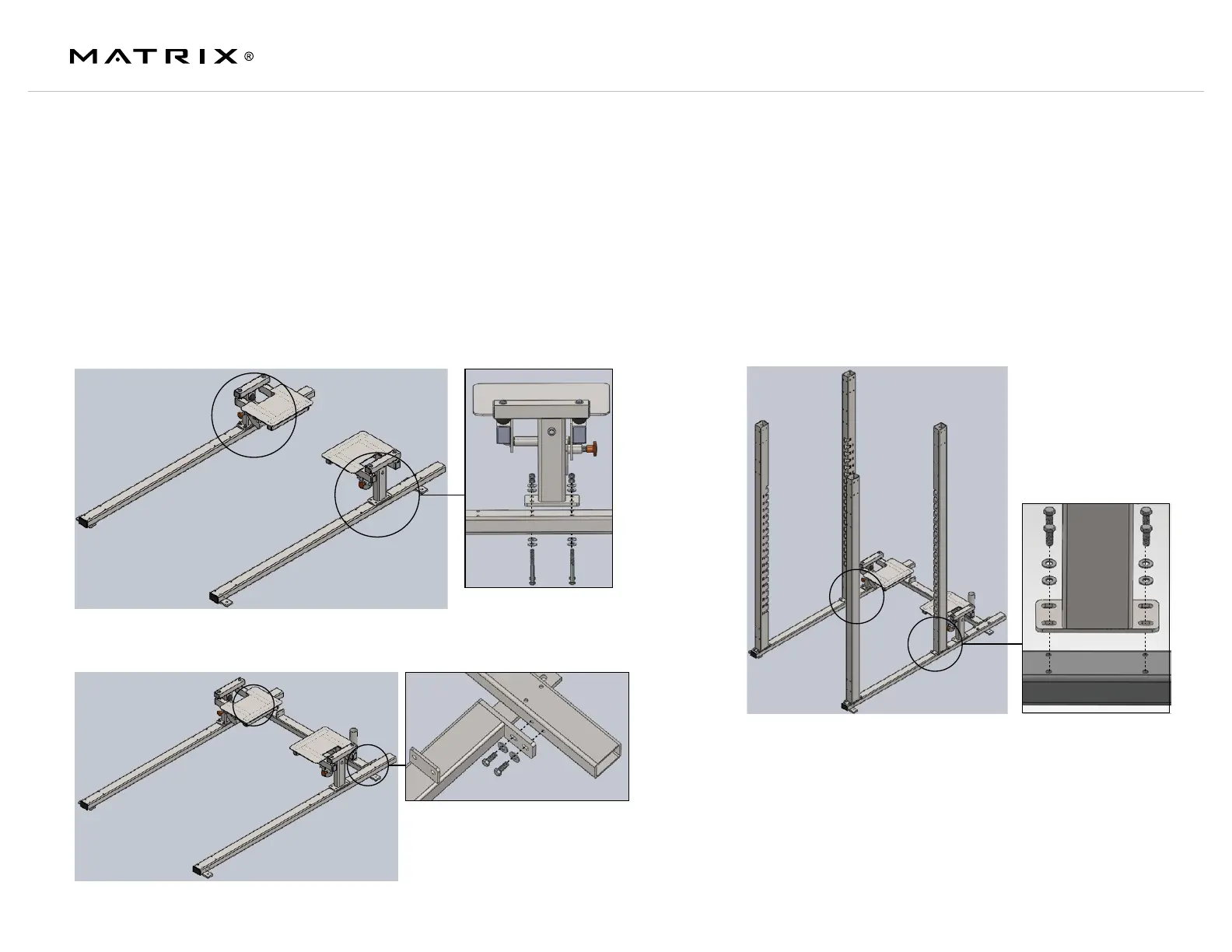

1. Place bases and spotter stands where the machine is to be used. Using (8) 3/8-16 x 3 1/4” bolts, (16) 3/8”
washers and (8) 3/8 lock nuts, attach the spotter stands to the bases and torque all bolts to 30 ft-lbs.
2. Place lower base support and bases where the machine is to be used. Using (4) 3/8-16 x 1” bolts and (4) 3/8”
washers, attach base support to bases and torque all bolts to 30 ft-lbs.
3. Attach each upright to the base using (16) 3/8-16 x 1” bolts and (16) 3/8” washers. Do not tighten bolts.
STEP 1
STEP 2
STEP 3
