MG-A47-05 FRAME ASSEMBLY

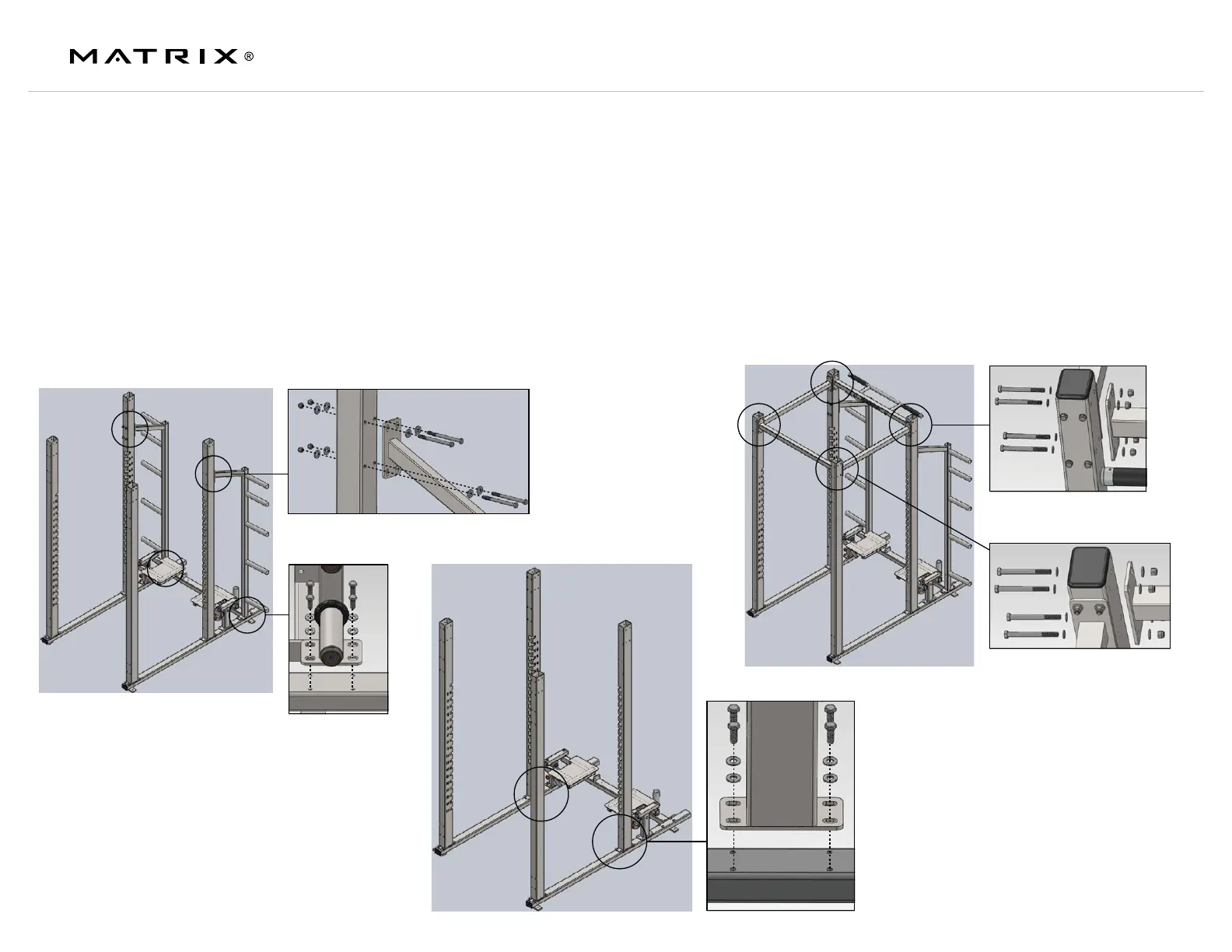

4. Weight storage: Using (8) 3/8-16 x 1” bolts and (8) 3/8” washers, attach the bottom of the weight storage to the bases. Do not tighten bolts.
5. Weight storage top: Using (8) 3/8-16 x 5” bolts, (16) 3/8” washers, and (8) 3/8” nuts, attach the top of the weight storage to the uprights. Do not tighten bolts.
6. Upright support: Using (16) 3/8-16 x 5” bolts, (32) 3/8” washers and (16) 3/8” nuts washers, attach the upright support to the top of the uprights. Do not tighten bolts.
7. Chin bar: Using (8) 3/8-16 x 4” bolts, (16) 3/8” washers and (8) 3/8-16 nuts, attach the chin bar between the tops of the (2) rear uprights. Do not tighten bolts.
8. Front upright support: Using (8) 3/8-16 x 4” bolts, (16) 3/8” washers and (8) 3/8-16 nuts, attach the front upright support between the tops of the (2) front uprights. Do not tighten bolts.
9. Tighten bolts: Starting with the bottom of the uprights and working up to the top of the machine, tighten all bolts to 30 ft-lbs.
Assembly Complete!
