4.2 Basic Front Panel Operations

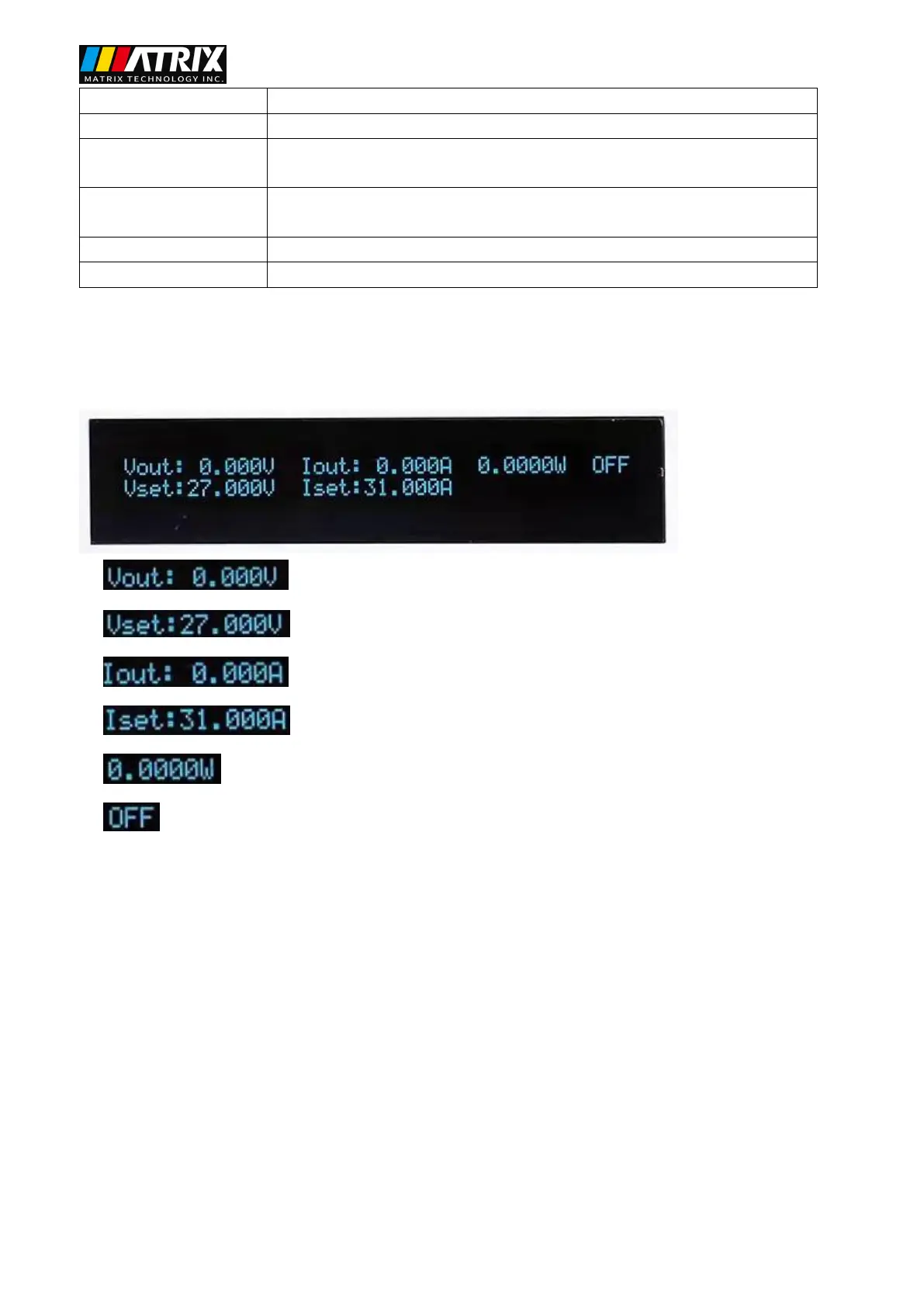

Turn on the power, the LCD displays data such as voltage, current, power and output status,
1. output voltage value.
2. Set the voltage value.
3. output current value.
4. Set the current value.
5. Output Power.
6. output status.
4.3 Voltage setting operation
The voltage setting range is between 0V and the maximum voltage setting value. You can use the following
two methods to set the output voltage value through the front panel.
Method 1: Press the V-Set key, then press the number keys 0 to 9 to input the voltage value, and then press
the Enter key to confirm the voltage value.
Method 2: Press the V-Set key, and then turn the knob left and right to change the voltage setting value.
(When the screen flashes, you can turn the knob left and right to set the voltage. Press the knob to move the
setting cursor position, and press the "Enter" key. to confirm and exit setting mode).
Composite keys, used in combination with multi-function keys
Control power output status
Up key (select a menu item in the menu operation, and the output voltage
can be increased in the working interface)
Down key (select a menu item in the menu operation, and the output
voltage can be reduced in the working interface)
Used to change the power supply voltage, current setting
To Next Page
