Chapter 3 Quick start

This chapter will briefly introduce the appearance and basic functions of this series of programmable DC

power supplies, so that you can quickly understand the four-channel programmable DC power supply. At the

same time, it will tell you the basic inspections to be done after getting the power supply to ensure the normal

operation of this product.

3.1 Introduction of front and rear panels

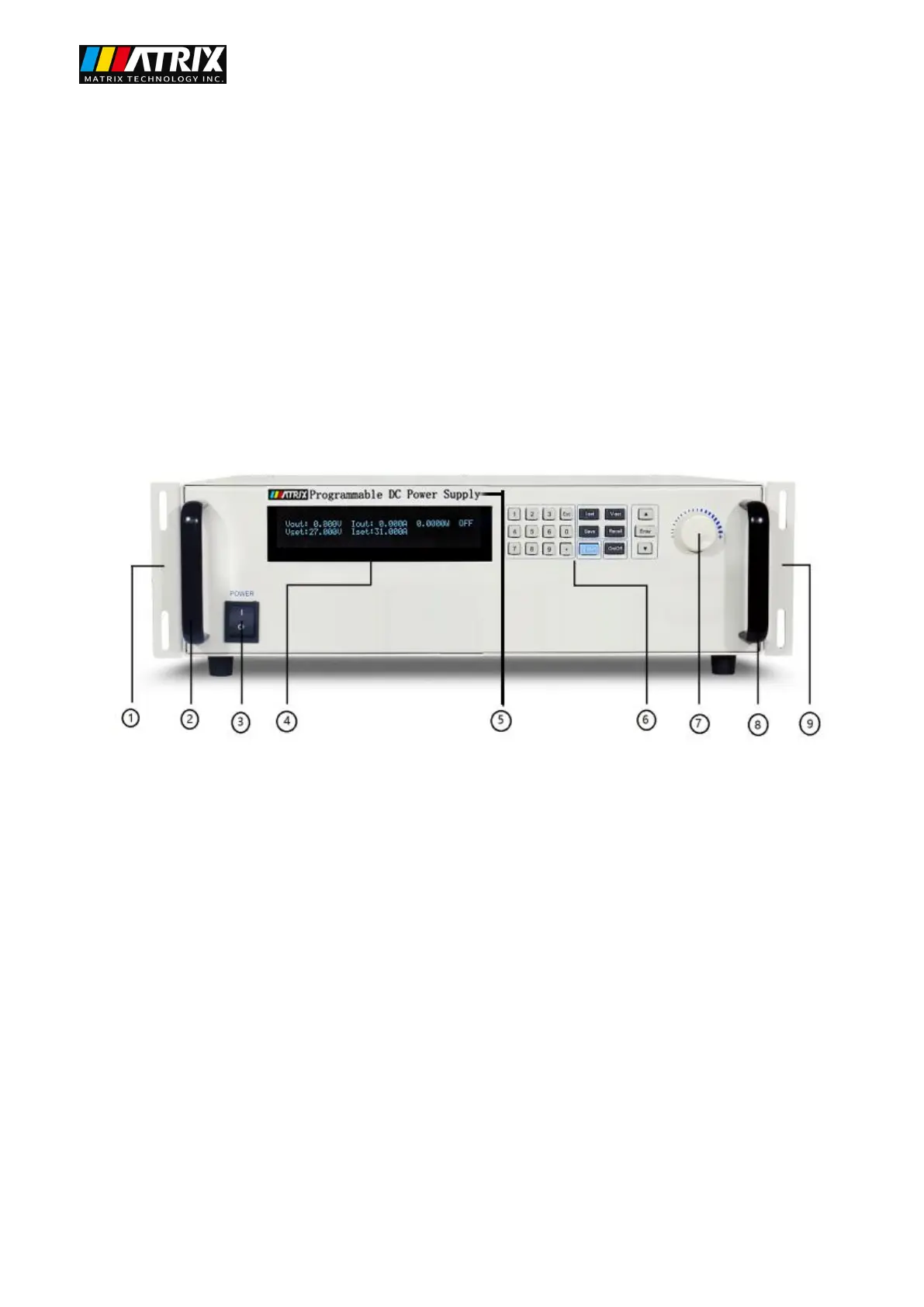

The front panel is shown below.

Figure 3.1

①, ⑨ standard 19-inch cabinet fixing ears

②, ⑧ Programmable DC power supply handle

③ Power switch

④ LCD display

⑤ Power supply model specifications,

⑥ From left to right are 0-9 number keys and ESC escape key, function keys, up and down movement keys

and Enter key,

⑦ Adjustment knob ,
