④List step dwell time parameters, use the numeric keyboard to modify the parameters, press "Enter" to
confirm and enter the next parameter setting.
Chapter 5 Remote Operation Mode
5.1 Communication between the power supply and the host
The power supply can be connected to the PC host interface through the DB9 plug on the rear panel. The
following content can help you understand how to control the output of the power supply through the
host computer.
1. Communication settings
Before performing communication operations, you should first match the power supply to the following
parameters of the control panel:
(1) Baud rate: 9600
(2) Parity: NONE (3) Data bits: 8, Stop bits: 1 (fixed value)
2. 2. DB9 serial interface
The DB9 interface on the rear panel of the power supply can be connected to the interface of the host.

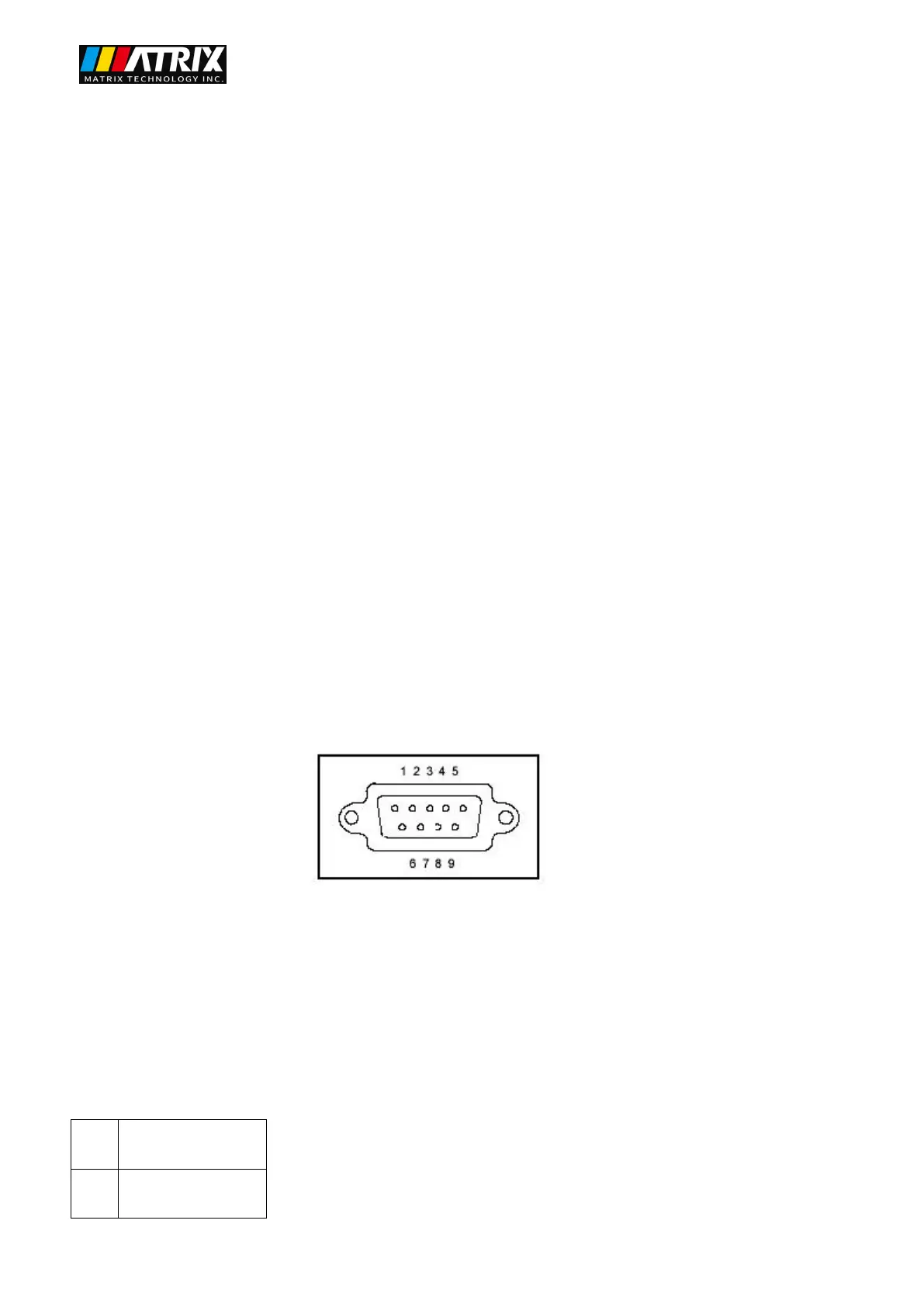

3. Interface pin definition
To Next Page
