4.4 Current setting operation
The setting range of the current is between 0A and the full rated output current. You can use the following
two methods to set the output current value through the front panel.
Method 1: Press the I-Set key, then press the number keys 0 to 9 to input the current value, and then press the
Enter key to confirm the current value.
Method 2: Press the I-Set key, and then turn the knob left and right to change the current setting value.
(When the screen flashes, you can turn the knob left and right to set the current value, and press the knob to
move the setting cursor position, and press "Enter" key to confirm and exit the setting mode).
4.5 Access operation
The power supply can save some commonly used parameters in 99 groups of non-volatile memory for users
to quickly recall. You can use the Save and Recall keys on the front panel to access (0~99) group memory
areas.
The storage contents include: 1. Voltage setting value. 2. Current setting value. 3.OVP. 4.0CP.
You can press the Save key, then press the number keys 1 to 9, and press the Enter key to store the
parameters of the power supply in the designated storage area.
You can press the Recall key, then press the number keys 1 to 9, and press the Enter key to retrieve the
parameters from the specified storage area for use.
4.6 OVP/OCP function settings
OVP function settings

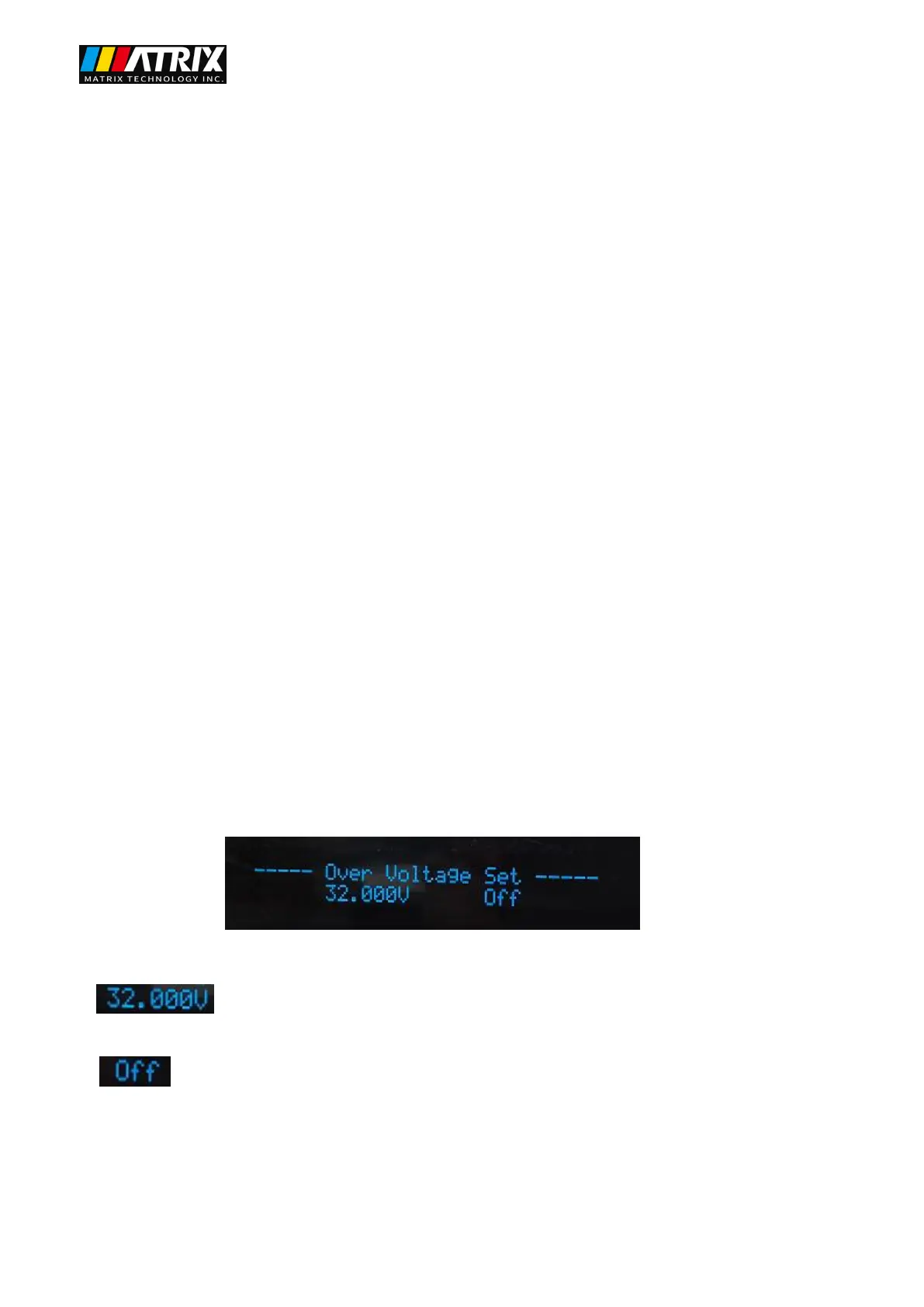

Press the "shift" key and then press the "V-set" key to enter the OVP setting. You can switch between the set
value and the state setting by pressing the ▲ and ▼ keys.
1 . The OVP setting value can be changed by the numeric keys and knob, the method is the
same as the voltage setting.
2. OVP state setting, OFF means the function is closed, ON means the function is open.
OCP function settings
Press the "shift" key and then press the "I-set" key to enter the OCP setting. You can switch between the set
value and the state setting by pressing the ▲ and ▼ keys.
