62
10.2
ASSEMBL
Y INSTRUCTIONS - CONTINUED

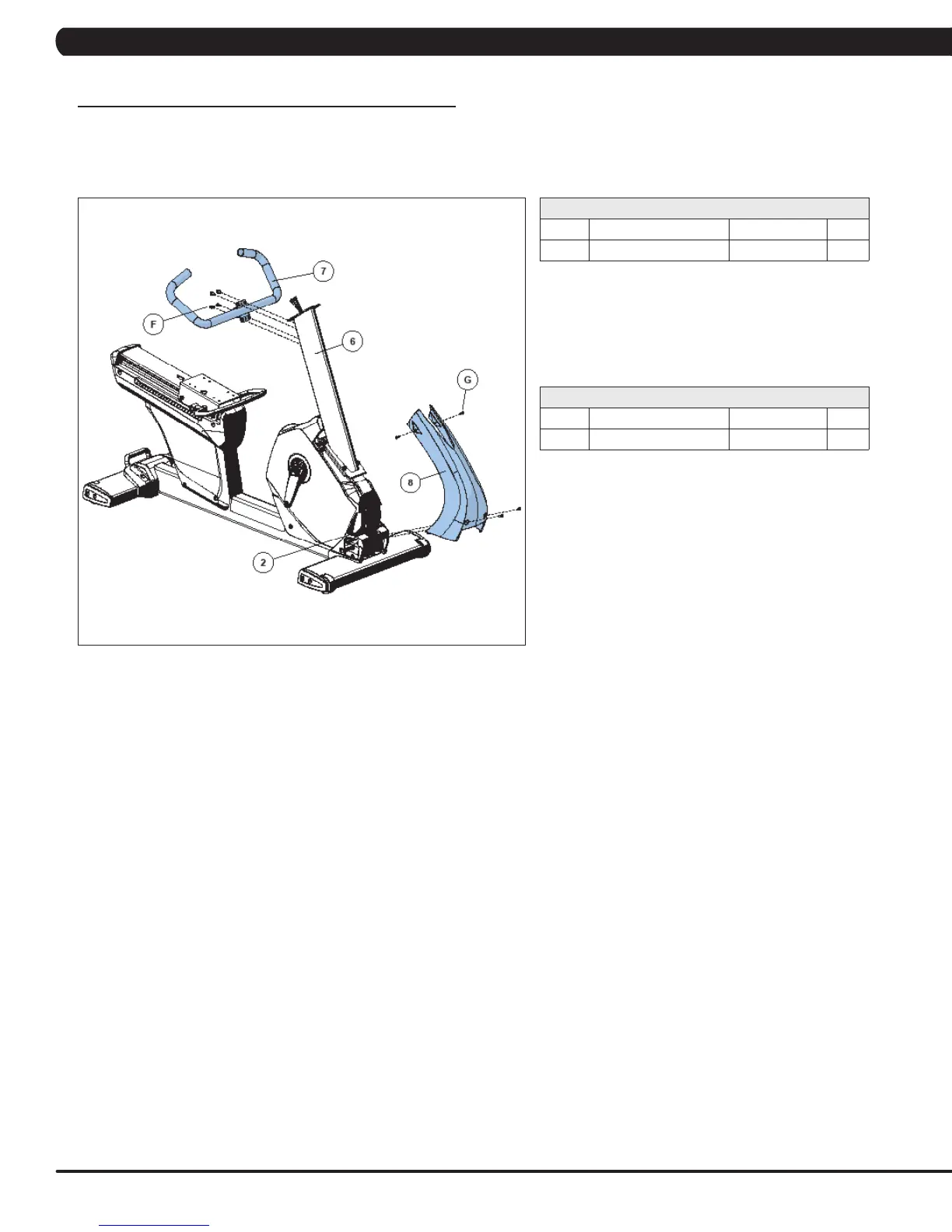

STEP 3
CHAPTER 10: BIKE SPECIFICA
TIONS AND
ASSEMBL
Y GUIDE
A
Open
GREEN HARDW
ARE BAG
.
B
Attach the
CONSOLE HANDLEBARS (7)
to the
CONSOLE MAST (6)
using 4
BOL
TS
(F)
.
WHITE HARDW
ARE BAG
P
ART
TYPE
DESCRIPTION
QTY
F
SO
CK
ET HE
A
D BOL
T
M
8X
20L
4
GREEN HARDW
ARE BAG
P
ART
TYPE
DESCRIPTION
QTY
G
PHI
LLI
PS HE
AD B
OL
T
M
5
X1
2
L
4
C
Open
GREEN HARDW
ARE BAG
.
D
Attach the
FRONT SHROUD COVER (8)
to
the
MAIN FRAME (2)
using 4
BOL
TS (G)
.
64
66
Table of Contents
Default Chapter
2
Table of Contents
2
Chapter 1: Serial Number Location
4
Chapter 2: Important Safety Instructions
6
Read and Save These Instructions
6
Electrical Requirements
7
Chapter 3: Preventative Maintenance
8
Recommended Cleaning Tips
8
Check for Damaged Parts
8
Care and Maintenance Instructions
9
Chapter 4: Console Overlay and Workout Description
10
Console Description
10
Workout Setup Steps - Manual
11
Workout Setup Steps - Fat Burn
11
Workout Setup Steps - Level Based
11
Workout Setup Steps - Fitness Test
12
Workout Setup Steps - Target Heart Rate
13
Workout Setup Steps - Constant Watts
13
Chapter 5: Manager Mode
14
Using Manager Mode
14
Manager Mode Overview
14
Chapter 6: Engineering Mode
15
Using Engineering Mode
15
Chapter 7: Service Mode
16
Using Service Mode
16
Chapter 8: Troubleshooting
17
Electrical Diagram
17
LCB LED Indicators
22
Troubleshooting - Error 04A0 / 0440
23
Troubleshooting - Error 04B0
24
Troubleshooting - Error 0248
25
Troubleshooting - Error 0247
26
Troubleshooting - Error 02B4 / 03A8 / 02AB / 0441
26
Troubleshooting - Error 0149 / 01AF
27
Troubleshooting - Error 01B4
28
Troubleshooting - no Resistance
29
Troubleshooting - Heart Rate Issues
30
Troubleshooting - no Power to the Console
31
Troubleshooting - Keypad Issues
32
Chapter 9: Part Replacement Guide
33
Console Replacement
33
Handlebar Replacement
34
Cup Holder Replacement
35
Keypad / Overlay Replacement
36
Seat Pad Replacement
38
Back Pad Replacement
39
HR Grips Replacement
40
Seat Set Replacement
41
Seat Slide Replacement
42
Rear Covers Replacement
44
Guide Rail Set Replacement
45
Pedal Replacement
46
Crank Axle Set Replacement
47
Front Shrouds Replacement
48
Front Covers Replacement
49
Console Mast Removal
50
Lower Control Board Replacement
51
Battery Replacement
52
Drive Belt Replacement
53
Generator Replacement
54
Rear Stabilizer Replacement
55
Front Stabilizer Replacement
56
Drive Axle Set Replacement
57
Testing the Bike
61
Chapter 10: Bike Specifications and Assembly Guide
62
R5X-05 Bike Specifications
62
Assembly Instructions
63
Adjusting the Pedal Straps and Seat
70
Leveling the Bike
71
TV Bracket Installation Instructions
72
Chapter 11: Software Upgrade Guide
77
Software Upgrade Procedure
77
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Matrix R5X-05 and is the answer not in the manual?
Ask a question
