STEP 4
10.2 ASSEMBLY INSTRUCTIONS - CONTINUED
CHAPTER 10: BIKE SPECIFICATIONS AND ASSEMBLY GUIDE

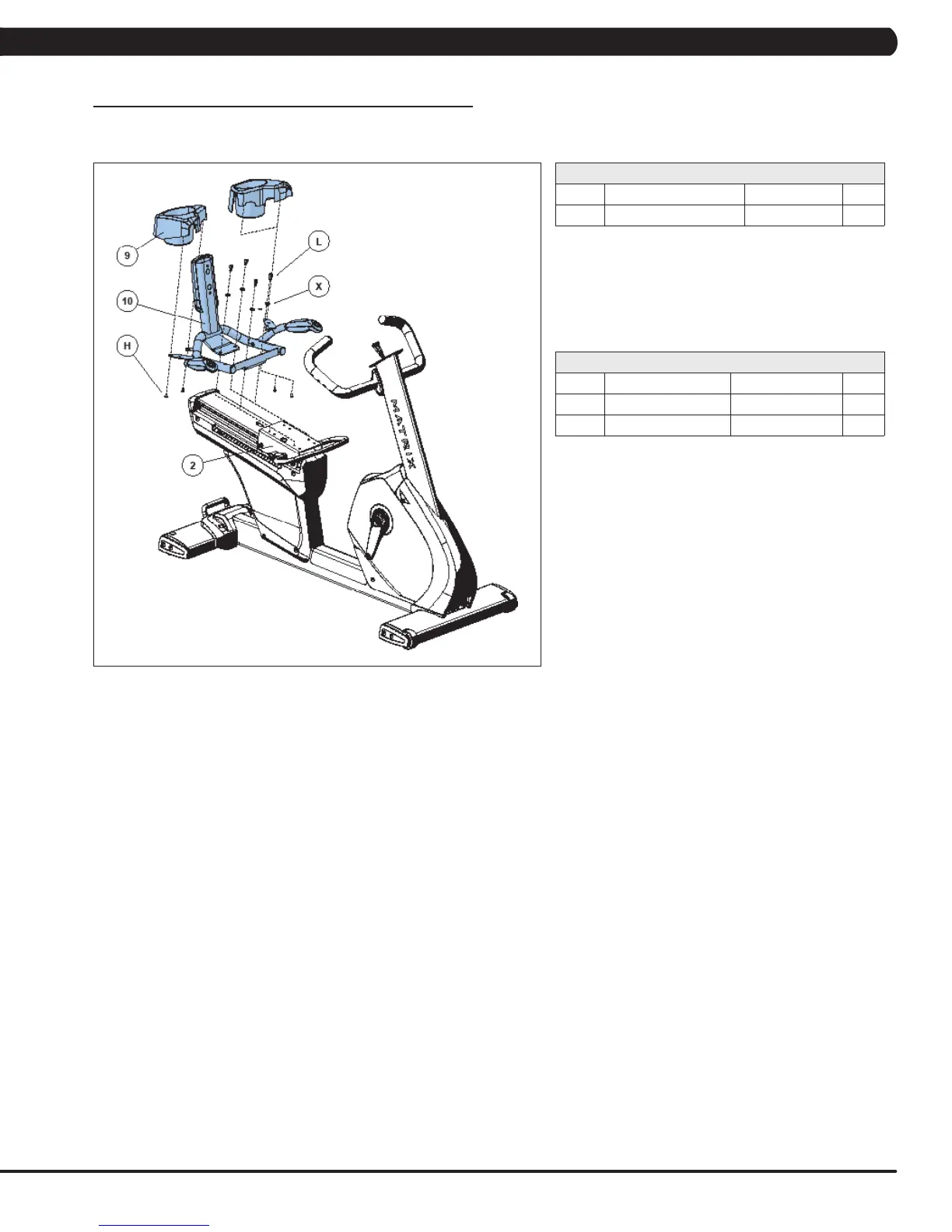

A Open PINK HARDWARE BAG.
B Attach the WATER BOTTLE HOLDERS (9)
to the SEAT FRAME (10) using 4 BOLTS
(H).
BLUE HARDWARE BAG
PART TYPE DESCRIPTION QTY
I SOCKET HEAD BOLT M8X15L 4
J SPRING WASHER Φ8.2XΦ13.5X2.0T 4
PINK HARDWARE BAG
PART TYPE DESCRIPTION QTY
H PHILLIPS HEAD BOLT M5X12L 4
C Open BLUE HARDWARE BAG.
D Attach the SEAT FRAME (10) to the MAIN
FRAME (2) using 4 BOLTS (I) and 4
SPRING WASHERS (J).
To Next Page
