64
10.2 ASSEMBLY INSTRUCTIONS - CONTINUED

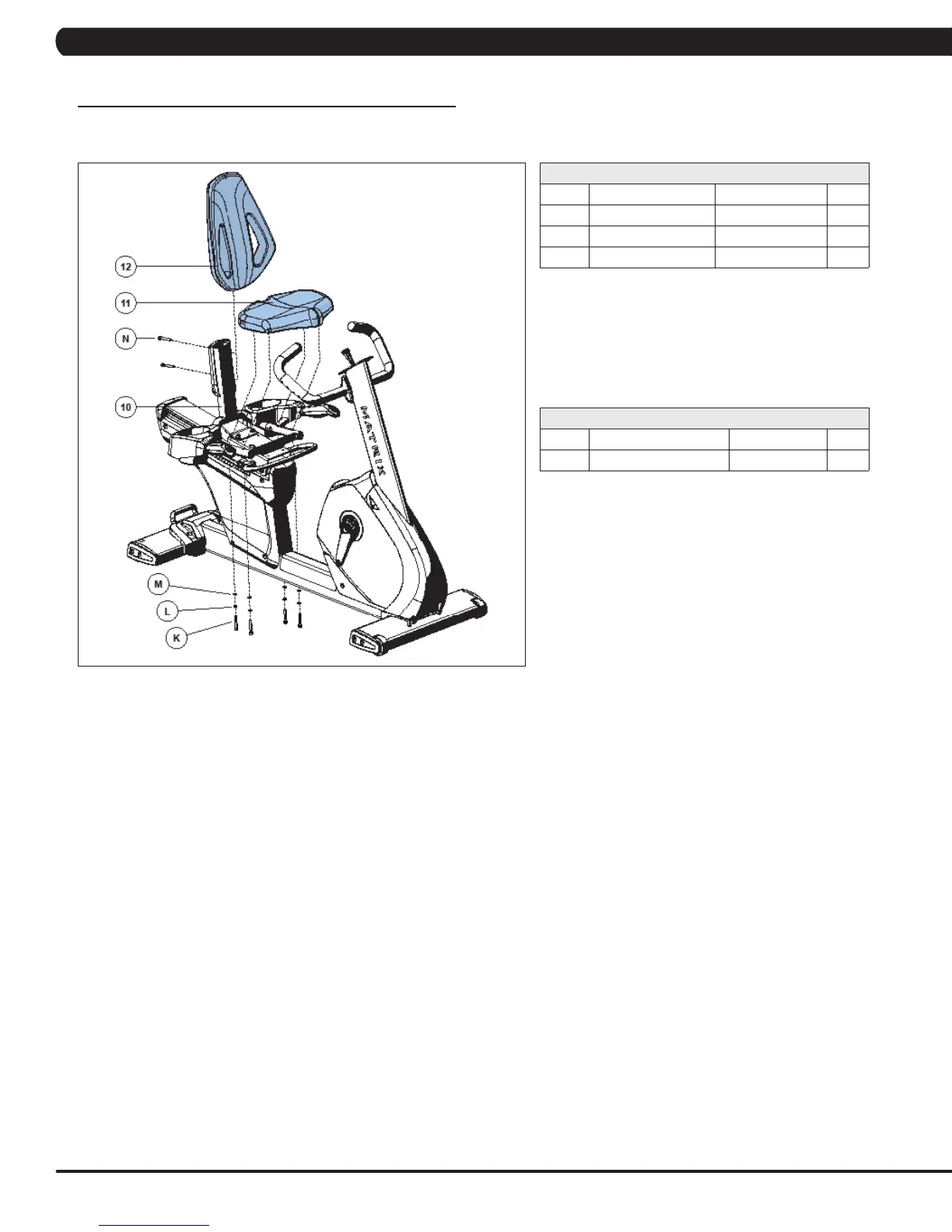

STEP 5
CHAPTER 10: BIKE SPECIFICATIONS AND ASSEMBLY GUIDE
A Open PURPLE HARDWARE BAG.
B Attach the SEAT BASE (11) to the SEAT
FRAME (10) using 4 BOLTS (K), 4 SPRING
WASHERS (L) and 4 WAVE WASHERS
(M).
PURPLE HARDWARE BAG
PART TYPE DESCRIPTION QTY
K SOCKET HEAD BOLT M8X50L 4
L SPRING WASHER Φ8.2XΦ13.5.0X2.0T 4
M WAVE WASHER Φ8.2XΦ18.0X1.5T 4
ORANGE HARDWARE BAG
PART TYPE DESCRIPTION QTY
N SOCKET HEAD BOLT M8X60L 2
A Open ORANGE HARDWARE BAG.
B Attach the SEAT BACK (12) to the SEAT
FRAME (10) using 2 BOLTS (N).
To Next Page
