9.4 TENSION REPLACEMENT - CONTINUED
CHAPTER 9: PARTS REPLACEMENT GUIDE

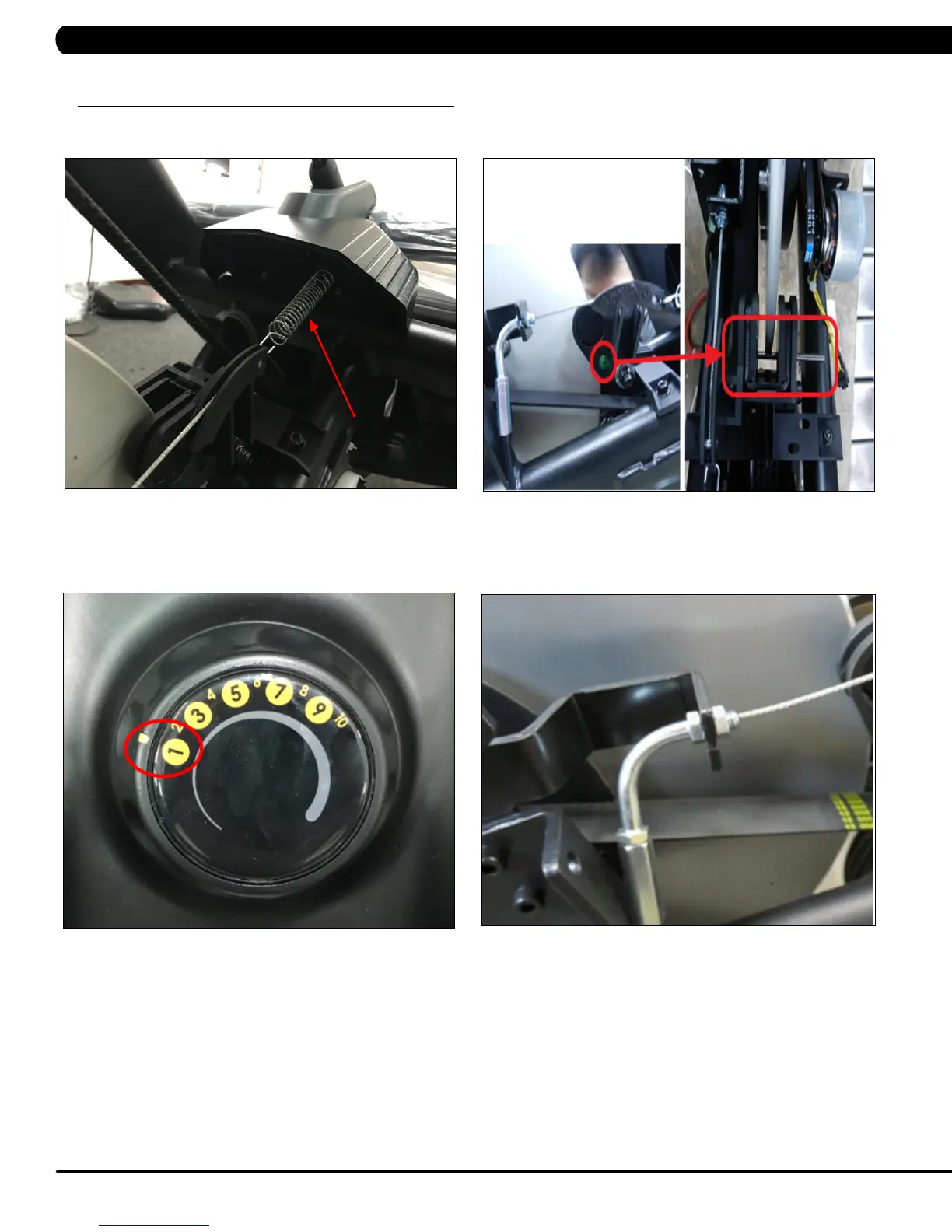

12) Install the spring (Figure K).
13) Insert φ8 rod through the hole of ECB to touch the flywheel (Figure L).
14) Adjust Tension level to the first paragraph (Figure M).
15) Adjust the tightness of the cable (Figure N).
FIGURE N
FIGURE K
FIGURE L
FIGURE M
