Matrix SATATYA PARAM NVR Series User Manual

71 Matrix SATATYA PARAM NVR Quick Start

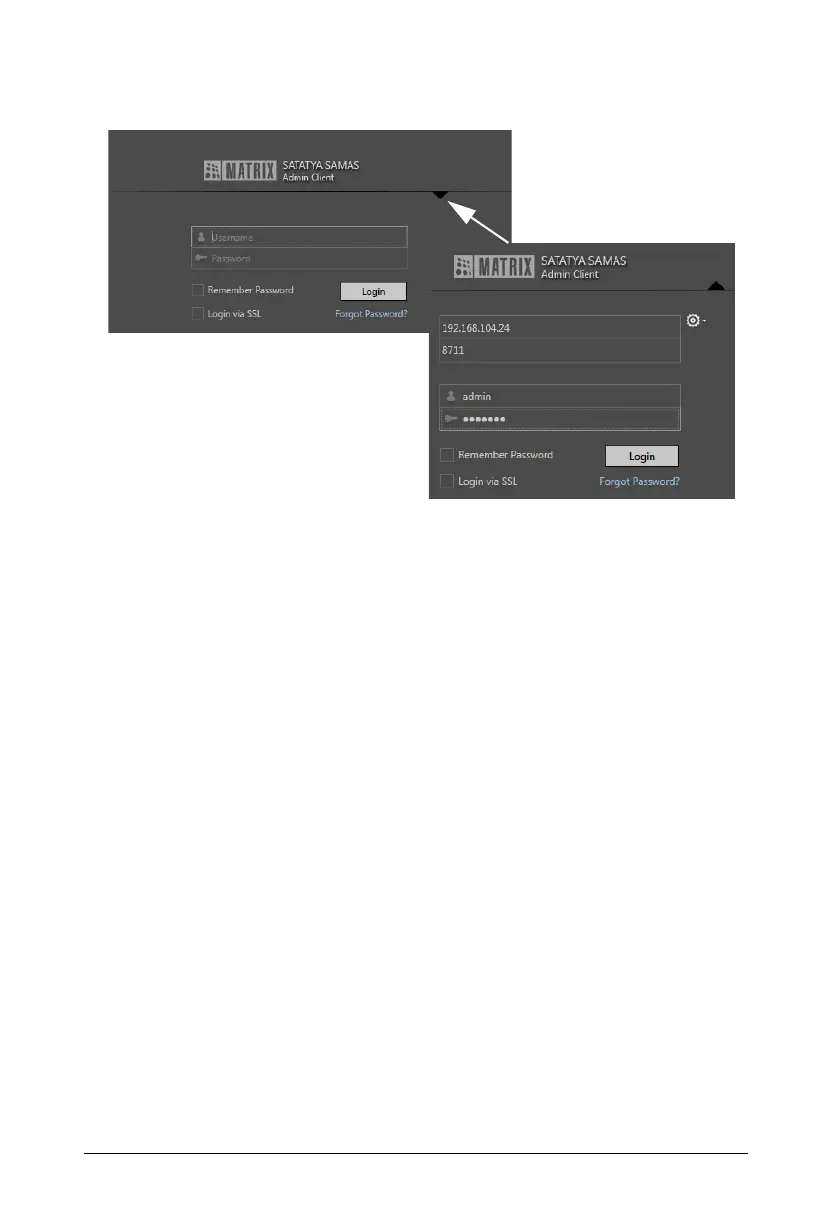

• The login page allows the user to configure three Preferred Networks. In these three
preferred networks, you can either specify Private network or Public Network (ISPs) for
the Management Server. The configuration fields are explained below.
IP Address or Server Name: Enter either Private or Public IP address of Management
Server. You can also enter the Host-name, Domain name or server name of ISP1 and
ISP2.
Port: Enter either Private or Public Port.
Now consider the following two scenarios.
Scenario1: Accessing from SATATYA PARAM NVR
• To establish the connection between them, Private Network configuration is required.
• For that, enter Private IP and Port of MS. The port that is to be configured is the “Admin
Client Port” of MS which is same as that configured in MS manager as shown below.

Matrix SATATYA PARAM NVR Series Specifications

General

Brand	Matrix
Model	SATATYA PARAM NVR Series
Category	DVR
Language	English
