Matrix SIMADO GFX11 Quick Start 7
• If your SIMADO GFX11 has a 3G module, you must also disable Call Waiting on the SIM
Card. This will prevent current calls from being disconnected whenever there is a waiting
call on the Mobile Port.
• Remove the SIM Card from the mobile handset and insert it in the SIM Card Slot of
SIMADO GFX11.
• Screw the antenna on to the Antenna Connector of SIMADO GFX11.
SIMADO GFX11E
Always wear an electro static discharge preventive wrist wrap or belt and use a grounding mat when
handling the product and its parts.
• To the FXS Port, connect a standard single line telephone using a standard telephone cable
with RJ11 plugs.
You may also connect the FXS Port of SIMADO GFX11E to a PBX.
• Insert a SIM Card of the service provider in the SIM Card Slot of SIMADO GFX11E.
To enable SIM PIN protection,
• Get a mobile handset. Insert the SIM Card into the mobile handset.
A
ntenna
S
I
M
SIM Card

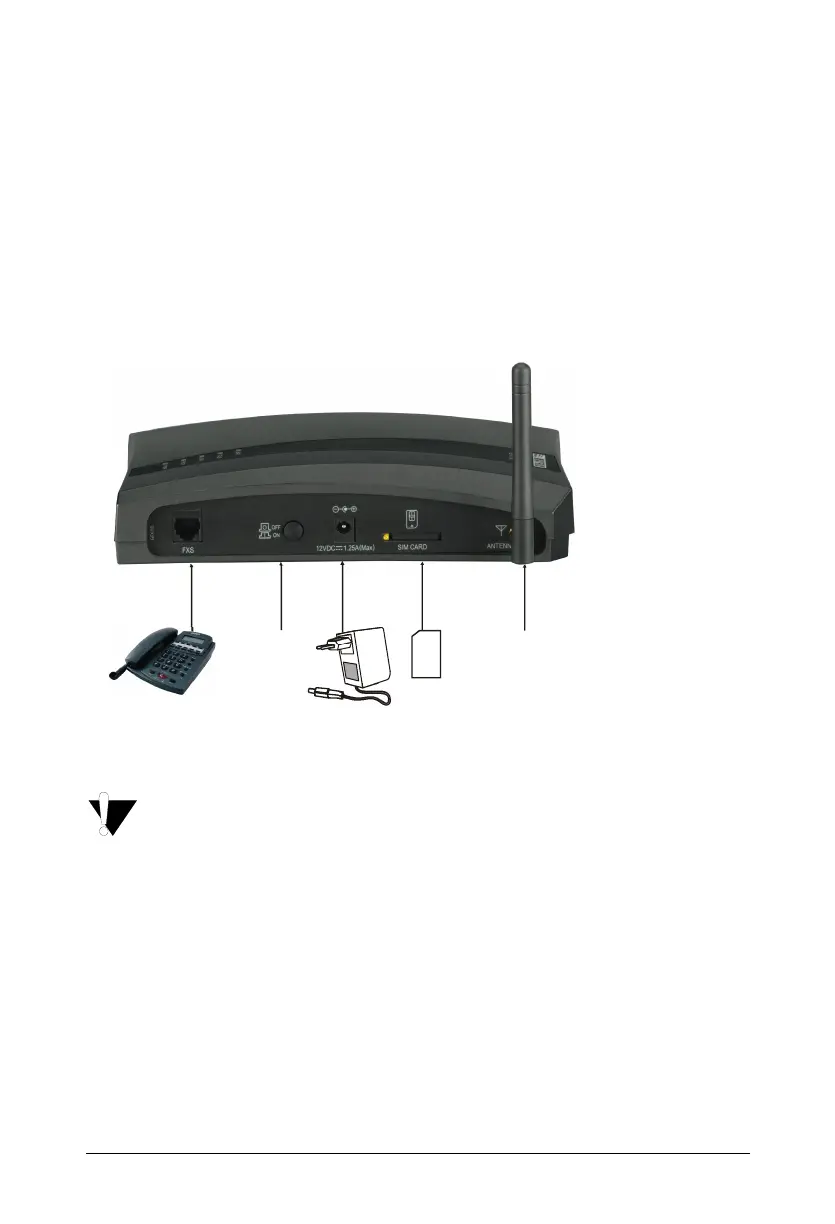

DC Power
Adapter
Standard
Telephone
ON/OFF
Button
