10.3 ASSEMBLY INSTRUCTIONS - CONTINUED
CHAPTER 10: TREADMILL SPECIFICATIONS AND ASSEMBLY GUIDE
STEP 4
T1XE/T3XE SHOWN

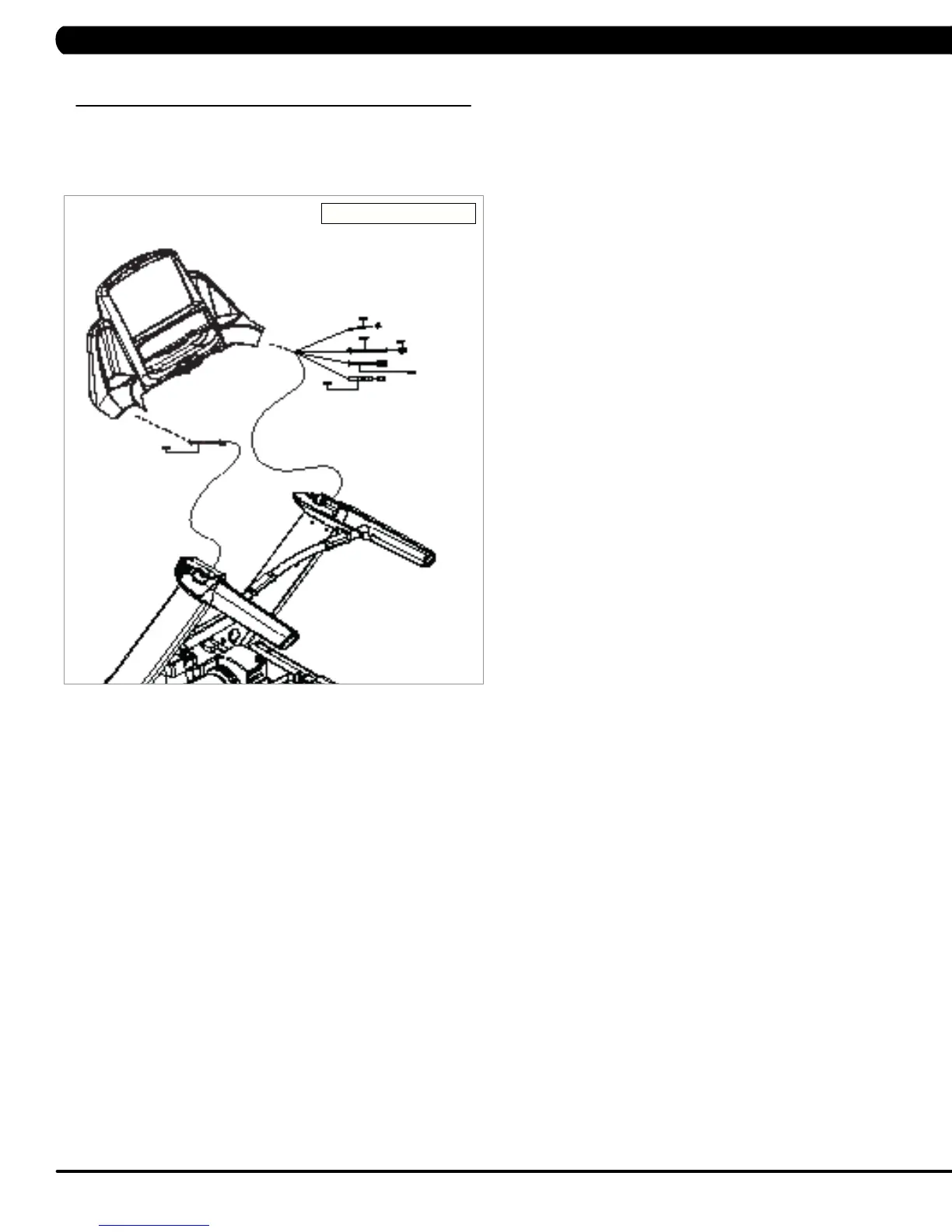

A Open BLACK HARDWARE BAG.
B Assemble the console to the handlebars
using 14-SOCKET HEAD CAP SCREW. Be sure to route the
console cables down the console mast and connect the contact
HR wires. Make all appropriate wire connections within the motor
compartment.
