Matrix T4x User Manual

25

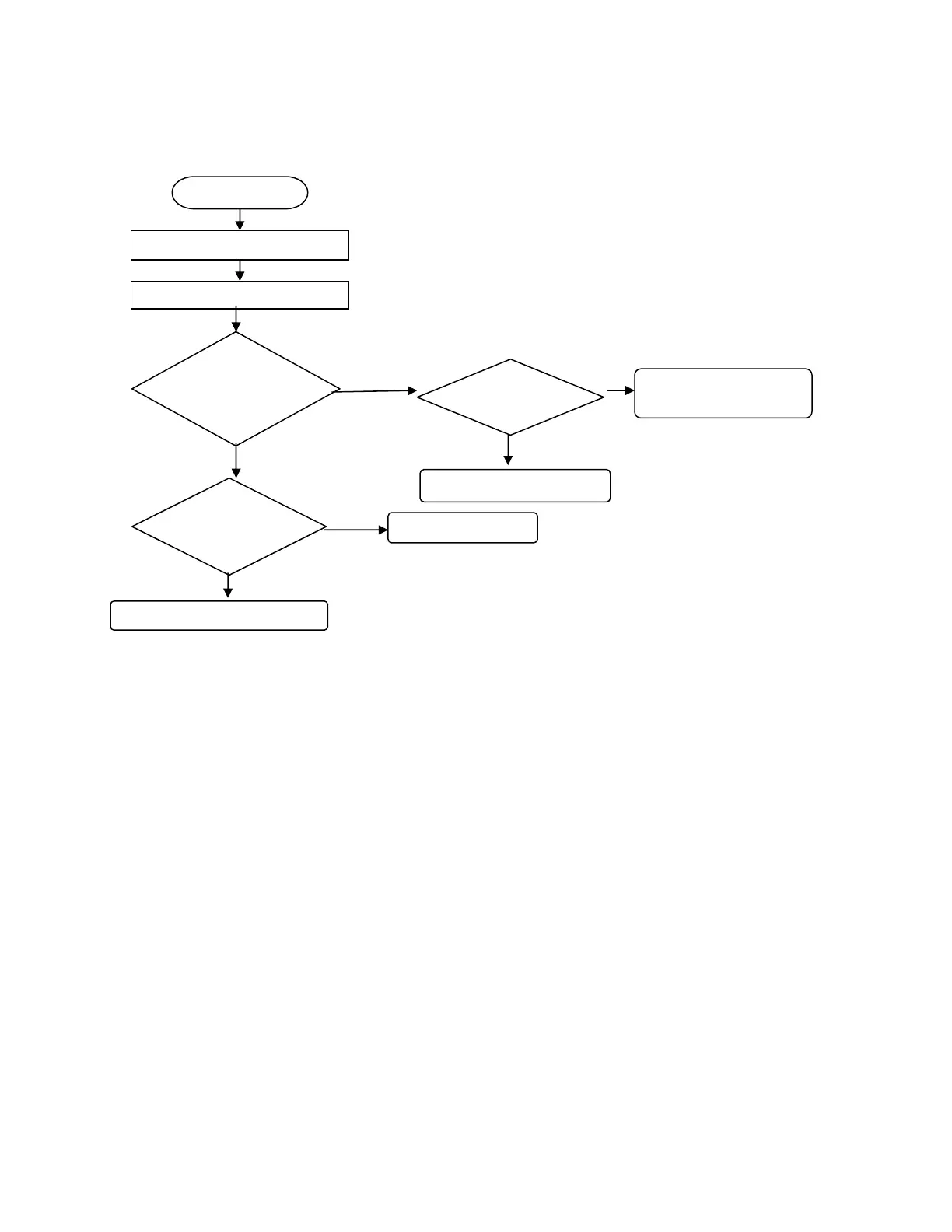

E3 – Elevation Stall
N
Y
N
N
Y
Y
E3 Error
Enter Hardware Test Screen
Run Elevation Up And Down
Treadmill
moves up or
down?
Elevation Motor
Overheating Issue
Position Feedback Problem
Motor
Overheated?
Motor Movement Issue
Feedback
Changes w/
Elevation
Calibrate Elevation
Step 1. Please refer the below PROBLEM IDENTIFICATION Step.
Step 2. CORRECTIVE ACTION
1.Allow elevation motor to cool.
2.Run calibration, ensure elevation movement smooth and restriction free from
lower travel limit to upper travel limit.
3.Check the failed system with a known good ribbon cable. If fixed then
repair/replace the ribbon cables.
4.Check the failed system with a known good elevation motor. If problem
fixed then repair/replace the elevation motor.
5.Check the failed system with a known good interface board. If problem fixed
then repair/replace the interface board.
6.Check the failed system with a known good console board with current
software. If the problem is fixed then repair/replace the console.
